BRG-LY108 Micro Force Sensor S-type Load Cells With Stainless Steel
Product Description

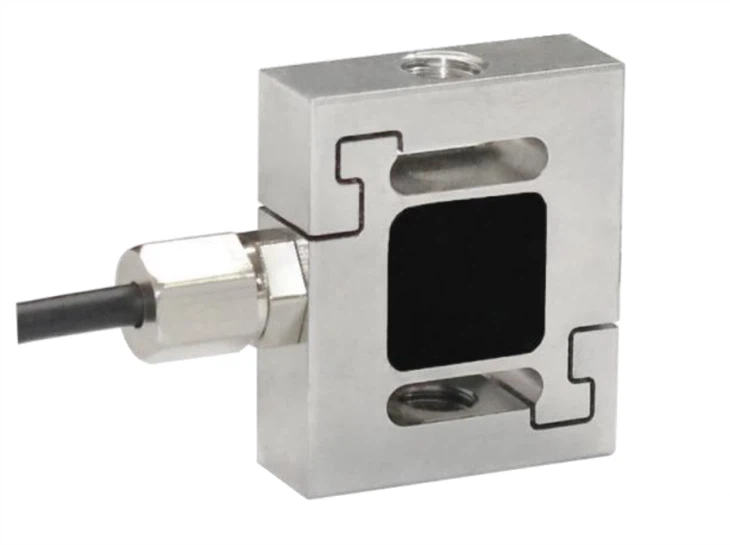

Micro Force Sensor S-type Load Cells are compact and high-precision force sensors designed to measure both tension (pulling) and compression (pushing) forces along the same axis.
Micro Force Sensor S-type Load Cells provide a robust, high-performance solution for accurate bi-directional force measurement in confined spaces across industrial weighing, testing, monitoring, and OEM force sensing applications.
Electrical Connection
Technical Data
| Rated quantitative schedule | Kg | 200 |
| Output sensitivity | mV/V | 1.0-2.0 |
| Zero point output | %F.S. | ±2 |
| Non-linear | %F.S. | 0.1 |
| lag | %F.S. | 0.05 |
| Repeatability | %F.S. | 0.05 |
| Creep (30 min) | %F.S. | 0.05 |
| Temperature sensitivity drift | %F.S./10℃ | 0.05 |
| Zero temperature drift | %F.S./10℃ | 0.05 |
| Response frequency | Hz | 1k |
| Material | stainless steel | |
| impedance | Ω | 350 |
| Insulation resistance | MΩ/100V DC | ≥5000 |
| Use voltage | V | 5-10 |
| Operating temperature range | ℃ | -20-80 |
| Safety overload | %R.C. | 150 |
| Extreme overload | %R.C. | 200 |
| Cable line specifications | m | <100kg: Φ2*1m; >100kg: Φ3*2m |
| Cable limit pull force | N | 98 |
| TEDS | selectable |
1 ) High temperature sensors are availabl e, wi th a maxi mum operating temperature of 1 50℃.
2) High impedance sensors can be provided with an output impedance of 1 000 Ω
Dimension (mm)
Force diagram
1. Food Processing – measure ingredients and proper distribution of products during packaging
2. Industrial Warehousing – determine the precise weight of a loaded pallet, which is crucial for filling and accepting orders
3. Building and Construction – used to test building materials, such as beams, for tension and structural strength
4. Transportation – truck and railroad car scales
5. Research Laboratory and Pharmaceutical Production – weighing equipment, calibrating systems, and doing fatigue testing
6. Load cells are part of security systems, electrical weighing scales, personal scales, thermometers, machines in the defense sector, industrial automation, submarine pressure sensing, and material testing.
- Made entirely of stainless steel, corrosion-resistant and resistant to mechanical fatigue;
- Can be customized;
- The factory sensors have undergone aging tests, are durable, and have guaranteed quality;
- It is widely used in the measurement of force in industrial systems. It is mainly used to measure tension, pressure and other various weighing and force measurement industrial automation measurement control systems.
