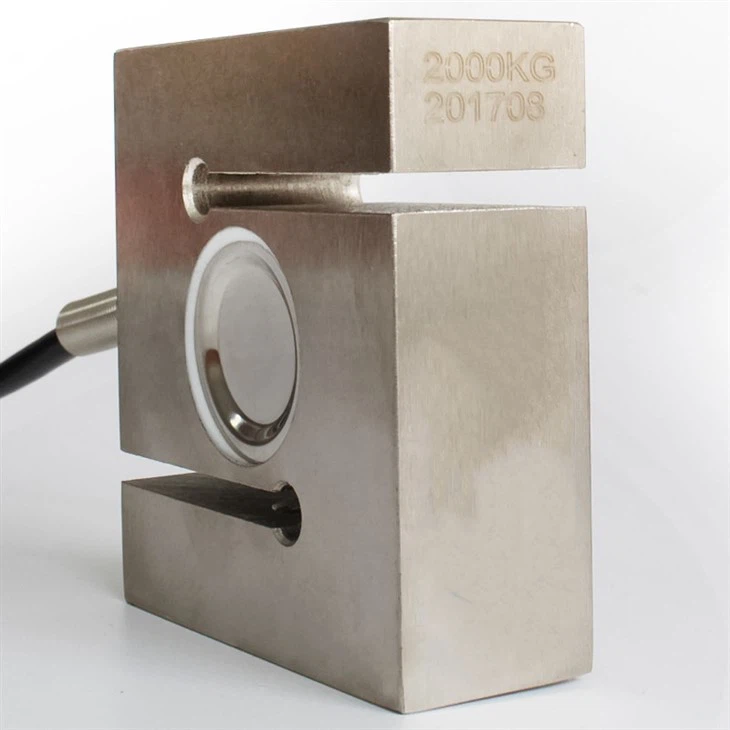

BRG-LY104 S type Load Cells 500kg
BRG-LY104 S type Load Cells 500kg
S-type load cells are used in testing equipment and regulating systems to control and monitor tension and applied weight. Precise, accurate and continuous measurement of the production process is necessary.
S-type load cells are strategically placed in the process to make continuous measurements and convert their readings into signals. The quality of these signals provides important data about the stability and effectiveness of the process. The increasingly demanding production requirements necessitate the use of load cells.
Electrical Connection
Technical Data
| Rated quantitative schedule | T | 10 |
| Output sensitivity | mV/V | 2.0-10% |
| Zero point output | %F.S. | ±1 |
| Non-linear | %F.S. | 0.05 |
| lag | %F.S. | 0.05 |
| Repeatability | %F.S. | 0.03 |
| Creep (30 min) | %F.S. | 0.05 |
| Temperature sensitivity drift | %F.S./10℃ | 0.05 |
| Zero temperature drift | %F.S./10℃ | 0.05 |
| Response frequency | Hz | 1k |
| Material | 42CrMoA | |
| impedance | Ω | 350 |
| Insulation resistance | MΩ/100V DC | ≥5000 |
| Use voltage | V | 5-15 |
| Operating temperature range | ℃ | -20-80 |
| Safety overload | %R.C. | 150 |
| Extreme overload | %R.C. | 200 |
| Cable line specifications | m | 0-2T : Φ5*2m; 2-10T: Φ5*5m |
| Cable limit pull force | N | 98 |
| TEDS | selectable |
Dimension (mm)
Force diagram
It has simple installation, good stability, sensitive response and high measurement accuracy. It can be used with lifting rings, hooks and spherical bearings.
Anti-eccentric load, high precision, good strength, easy installation, two-way measurement of tension and compression, good symmetry, widely used in force measurement in industrial systems and various weighing such as crane scales, track scales, hopper scales, etc.
Application
S-type load cells have several common applications due to their ability to measure both tension and compression forces accurately. Some of the key applications include:
Weighing Systems
- Tank/Hopper/Vessel Weighing
- Crane Scales
- Truck Scales
Force Measurement and Testing
- Dynamometer Testing
- Tension Monitoring
Integrated Force Sensing
- Medical Devices: Miniature S-type load cells are integrated into patient lifting systems and other medical devices for force monitoring.
- OEM Applications: Original equipment manufacturers (OEMs) use S-beam load cells for integrated force sensing and performance monitoring in their product designs.
Rounded Chamfer
The edges and corners are rounded and the holes are chamfered, smooth and smooth, not cutting your hands and not easy to rust.
Standard Aperture
Two-way measurement of tension and compression, good symmetry, accurate force measurement, can be matched with a variety of accessories
Dust Cover
The inside of the core is infused with silicone gel, rated IP67, waterproof and dustproof, fully protecting the strain gauge, and not afraid of harsh environments, extending its service life.
