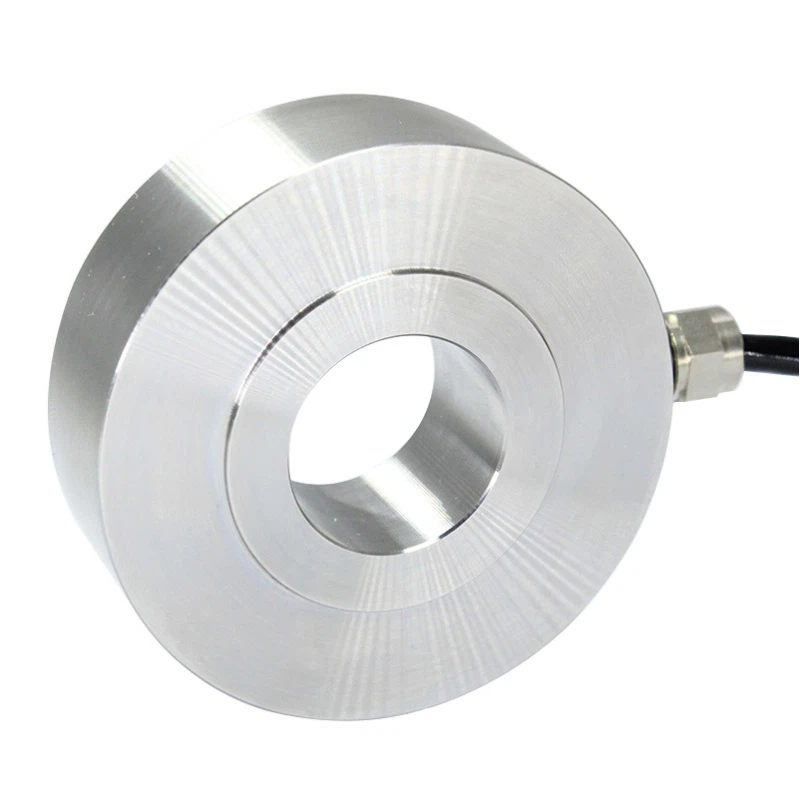

BRG-HX004 Doughnut Load Cell Compression Circle Force Sensor
Description
Features ：
1. Small size: Doughnut Load Cell are usually small in size and can adapt to limited space requirements.
2. Lightweight: Their design makes them lightweight, making them easy to install and use.
3. No moving parts: Micro force sensors usually have no moving parts, which helps improve their reliability and durability
4. High reliability: Due to its simple structure and no moving parts, the failure rate of micro force sensors is low, ensuring improved its stability under long-term operation.
5. Mass production: Due to advancements in design and manufacturing technology, micro force sensors can be produced on a large scale One step cost reduction.
6. Easy to integrate
Technical Parameters
| Rated quantitative schedule | KN | 200 |
| Output sensitivity | mV/V | 1.0±10% |
| Zero point output | %F.S. | ±2 |
| Non-linear | %F.S. | 0.3 |
| lag | %F.S. | 0.1 |
| Repeatability | %F.S. | 0.1 |
| Creep (30 min) | %F.S. | 0.1 |
| Temperature sensitivity drift | %F.S./10℃ | 0.1 |
| Zero temperature drift | %F.S./10℃ | 0.1 |
| Response frequency | Hz | 1k |
| Material | 17-4PH stainless steel | |
| impedance | Ω | 700 |
| Insulation resistance | MΩ/100V DC | ≥5000 |
| Use voltage | V | 5-15 |
| Operating temperature range | ℃ | -20-80 |
| Safety overload | %R.C. | 120 |
| Extreme overload | %R.C. | 150 |
| Cable line specifications | m | Φ5*2m |
| Cable limit pull force | N | 98 |
| TEDS | 可选 | |

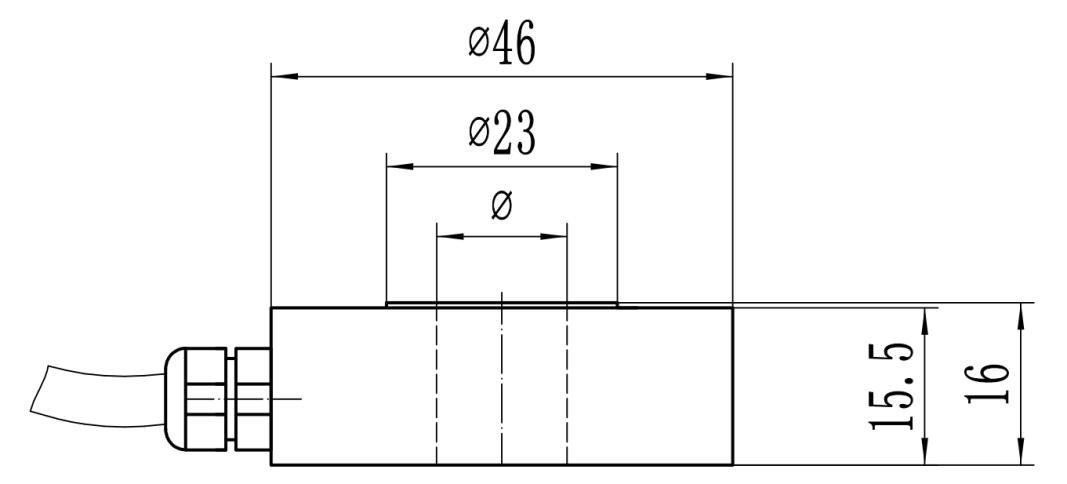

Dimension (mm)
| Range(kN) | 0.5 | 1 | 2 | 5 | 10 | 20 |

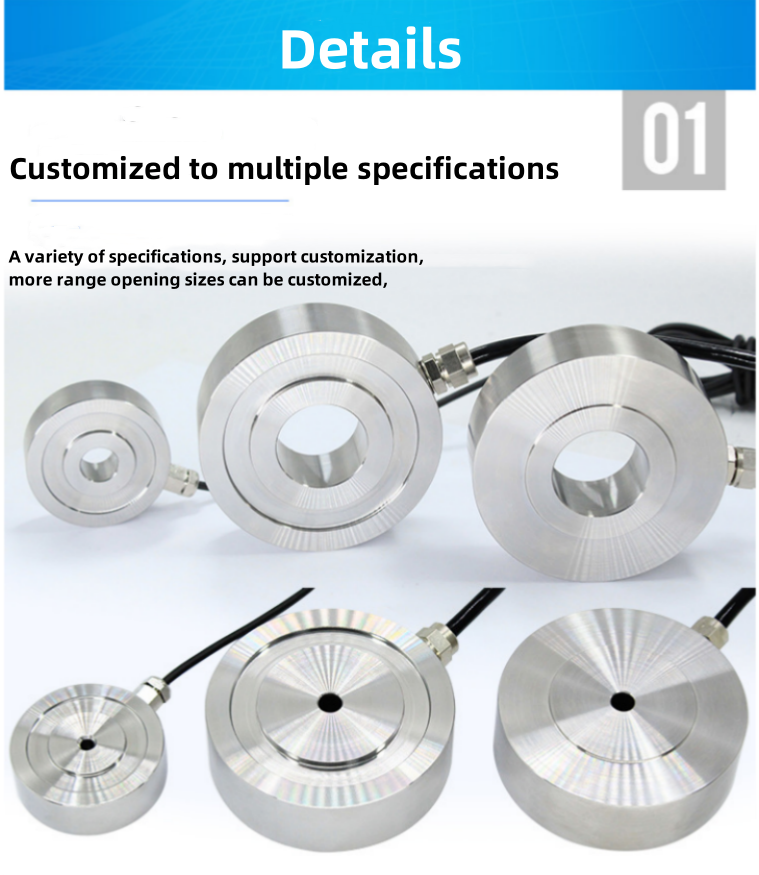

| Φ(mm) | 4-16( customizable) | |||||
| range(kN) | 10 | 20 | 50 | 100 | 200 |

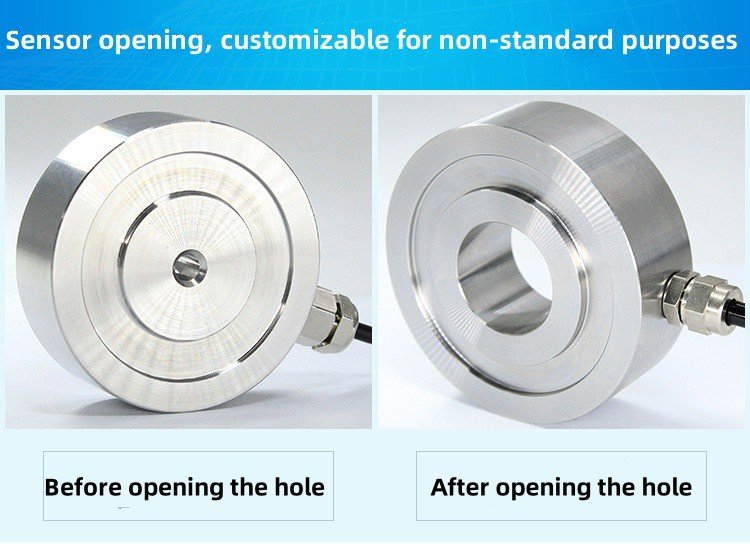

| Φ(mm) | 7-30( customizable) | ||||
Force Diagram
