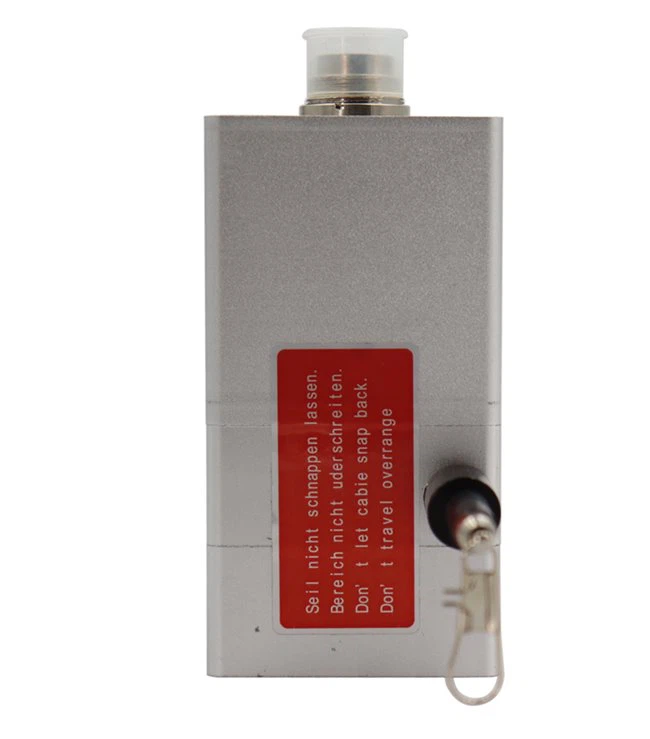

BRG-B rope deisplacement sensors
Rope position sensors
This compact wonder, a rope displacement sensor, boasts high accuracy and effortless installation, making it an automation industry MVP. Its 100mm-1250mm measuring range and resistance, voltage, or current output options let it seamlessly adapt to your needs. Ingenious design ensures accurate data, making it an efficient and reliable displacement measuring champion. Easy installation and a robust, high-rated build mean it thrives in demanding mechanical engineering and industrial settings.
The rope displacement sensor: your tiny, smart, and dependable partner for precise displacement measurement.
Performance Parameter:
| Working range | 100mm, 250mm, 500mm, 750mm, 1000mm, 1250mm |
| Linear precision | ±0.15%FS |
| Repeatability accuracy | ±0.02%FS |
| Resistance (±10%) | 5KΩ; 10 KΩ |
| Resolution | Infinite |
| Max working voltage | 24V DC |
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
| Sensor type | Encoder |
| Max working speed | 1m/s |
| Usage temperature | -40℃~~ +80℃ |
| Usage life | 5 million times |
| Traction | 250±25g |
| Wire diameter | 0.8mm |
| IP grade | IP65 |
| Maximum quality | 450g |
Dimension (mm)
Wire connection
Application
The rope deisplacement sensors sensor can also be used in the displacement measurement and position positioning of mechanical equipment such as press machinery, paper machinery, textile machinery, packaging machinery, printing machinery, construction machinery, woodworking machinery, hydraulic presses, etc.
