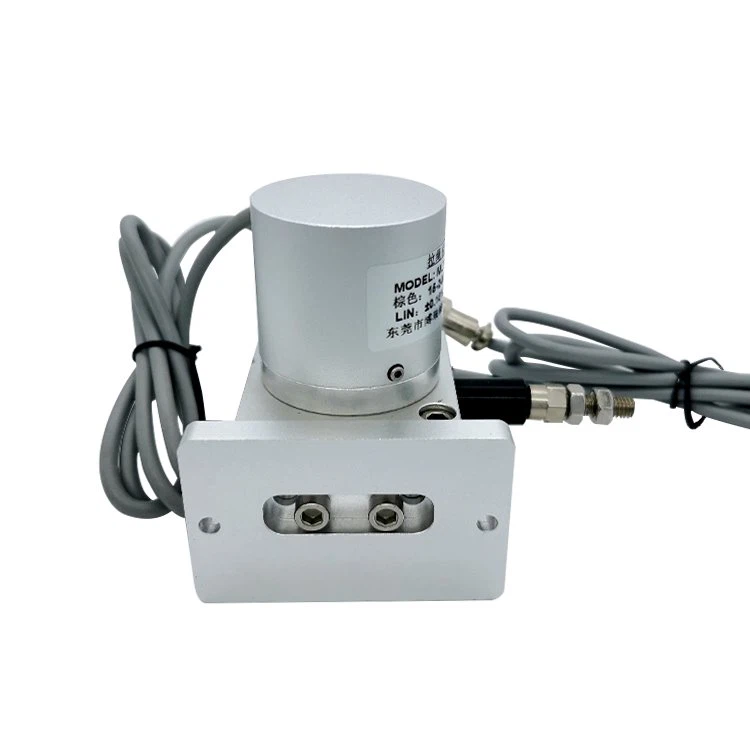

BRG-A High precision Draw wire encoder
BRG-A High precision Draw wire encoder, range 500mm~~1200mm, military grade, sensor output signal types are: resistance output, voltage output (0-SV; 0-10V), current output (4- 20mA, two-wire or three-wire). The sensor is small in size ‘high precision’ easy to install and use, dedicated to machine tools, and can also be used for other special occasions.
BRG-AHigh precision Draw wire encoder resistance output type commonly used 5V, 10V power supply, output 0-5V, 0-10V voltage signal;
Voltage output type and current output type usually 15-24V power supply, 12V power supply requires special instructions. Sensor shielding line standard 1 meter, default external thread draw rope head, optional internal thread draw rope head.
Performance Parameter:
| Working range | 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm |
| Linear precision | ±0.15%FS |
| Repeatability accuracy | ±0.02%FS |
| Resolution | Infinite |
| Max working voltage | 24V DC |
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
| Sensor type | Encoder |
| Max working speed | 1m/s |
| Usage temperature | -55℃~~ +125℃ |
| Usage life | 5 million times |
| Traction | 250±25g |
| Wire diameter | 0.8mm |
| IP grade | IP65 |
| Maximum quality | 450g |
Dimension (mm)
Application
The special machine tool equipment for High precision Draw wire encoder can also used in injection molding machines, die casting machines, rubber machines, footwear machines, EVA injection machines, bottle blowing machines, woodworker machines, hydraulic machinery, level control, suspension stroke control, construciton machinery, seaport machinery, industrial robots, etc.
