Features :
Alloy steel & stainless structure;
Bellows hermetically sealed by laser;
nickel plated, waterproof and anti-corrosion;
suitable for multiform environments;
Product Size(mm)
Product parameters
Details
Installation
Application

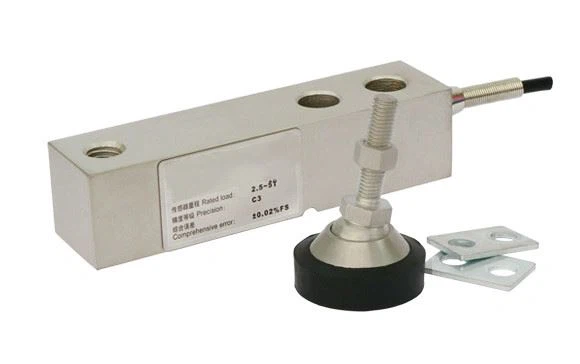

shear beam load cell mounting suitable for electronic platform scales, hopper scales, and other electronic weighing devies
용량：5, 10, 20, 50, 100kN
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
Capacity: 550 kg–4.4 t
Material: High-quality stainless steel
Type: Shear Beam
Protection Rating: IP68
Suitable for platform scales, dosing systems, and process control applications in the chemical, food, pharmaceutical, and other industrial sectors.
용량：0.5, 1, 2, 3, 5t
재질 : Stainless steel
타입 : Shear Beam
보호등급 : IP68
Features
용량：100, 200, 500, 1000,2000kg
재질 : Alloy steel, stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67, IP68
용량：25, 40, 50, 75, 100klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
용량：50, 100, 200, 300, 500, 1000kg, 2, 3, 5t
재질 : Alloy steel (Metric thread)
타입 : S-Beam
보호등급 : IP66/lP68
용량：50, 100, 250kg, 0.5, 1, 2, 3, 5, 7.5, 10t/100, 250, 500klb, 1, 2.5, 4, 5SE, 5, 10, 15, 20klb
재질 : Alloy steel，stainless steel optional
타입 : Shear Beam
보호등급 : IP67,IP68
용량：50, 100, 250kg, 0.5, 1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel，stainless steel optional
타입 : Shear Beam
보호등급 : IP67,IP68
용량：1, 2, 5, 10kN
재질 : Alloy steel ( thread)
타입 : S-Beam
보호등급 : IP66
Capacity: 100–1,000 kg
Material: Alloy steel
Type: S-Type
Protection Rating: IP67
Suitable for crane scales, hopper scales, transmitters, and other electronic weighing equipment.
용량：200, 300, 500, 1,000kg, 2t, 3t, 5t
재질 : Stainless steel (Metric thread)
타입 : S-Beam
보호등급 : IP66/IP68
용량：0.5, 1, 2, 3, 5t
재질 : Alloy steel，stainless steel optional
타입 : Shear Beam
보호등급 : IP67,IP68
