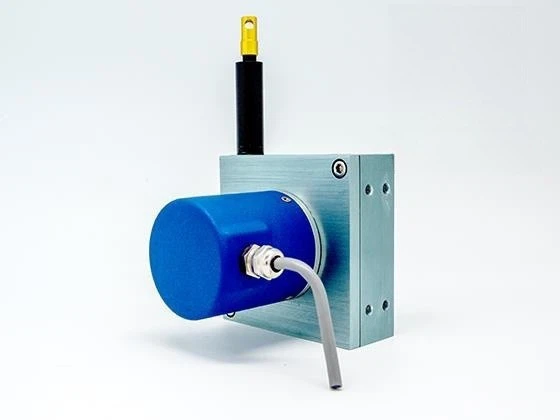

BRG-80 High Quality Draw Wire Linear Position Sensor
Description
BRG-80 High Quality Draw Wire Linear Position Sensor
Product Introduction
The maximum measuring stroke of the BRG-80 series analog output wire-drawn displacement sensor is 4000mm, and the circumference of the measuring wheel is 250mm. It is our classic wire-drawn displacement sensor. This sensor has been put on the market for many years and has been widely used in many fields after being tested by the market.
Technical Parameters
| Signal Output | Analog Signal |
| Measuring Range | 0-4000mm |
| Detection Type | Imported Precision Potentiometer |
| Output Type | 0-5kΩ, 0-10kΩ, 0-5V, 0-10V, 4-20mA, Dual Signal Output (Optional) |
| Linearity Accuracy | 0.1% FS |
| Repeatability | 0.01% |
| Lifespan | 2 million to 5 million cycles |
| Cable Length | 2M (Standard), Customizable |
| Operating Temperature | -45°C to +125°C |
| Wire Rope | High-Flexibility Imported Plastic-Coated Steel Wire Rope |
| Outlet Tension | 10N |
| Max. Travel Speed | 2000mm/s |
| Resolution | Infinitesimal |
| Zero/Span Adjustment | Adjustable |
| Operating Voltage | 24V, 10-30V |
| Reciprocating Frequency | 20Hz (Depending on Stroke Length) |
| Vibration Resistance | 10Hz to 1500Hz, 10G |
| Protection Rating | IP54 (Standard), IP65 (Optional) |
| Housing Material | Imported Aluminum Alloy, Anti-Static & Non-Conductive Surface |
Dimension (mm)
Features :
- Wide Range of Specifications – Designed to accommodate diverse application requirements.
- Flexible Output Options – Choose between analog or digital signals based on your needs.
- Customizable Precision Levels – Select the desired accuracy grade for optimal performance.
- Premium Imported Components – Critical sensor parts utilize high-quality international materials.
- Reliable & Durable Performance – Engineered for long service life and consistent operation.
