BRG-701-10 Tension And Compression Load Cell
BRG-701-10 Tension And Compression Load Cell

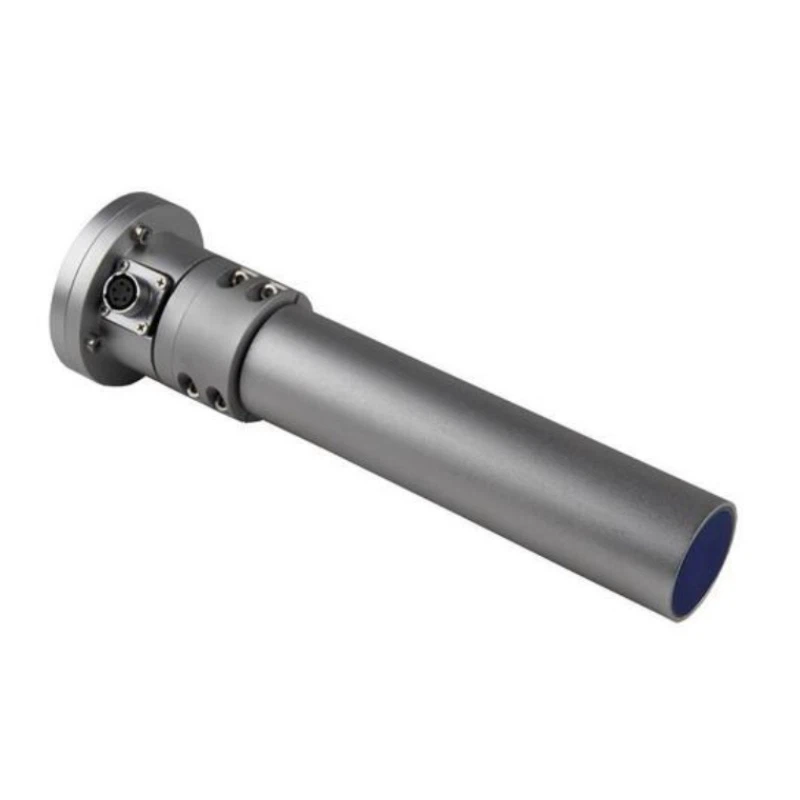

Features:(Cantilever beam idler tension sensoradopts semiconductor strain resistance sheet todetect coil tension, and has high measurement ac-curacy, reliability and stabilityin the field oftensionmeasurement.
The sensor has a built-in overloadprotection mechanism, and each sensor has beenstrictly tested before leaving the factory, thus en-suring the measurement accuracy, stability and re.liability of the product.
lt is the choice for high-performance tension control applications in continuous material processing and production.
Technical Parameters
| Capacity | 10N-200N |
| Accuracy class | 0.1% F.S. |
| Rated output | 1.0±0.2mv/v |
| Zero balance | ±2%F.S. |
| Non-linearity | ±0.05%F.S. |
| hysteresis | ±0.05%F.S. |
| Repeatability | ±0.05%F.S. |
| Creep (30min) | ±0.05%F.S. |
| Temp. effect on output | ±0.1%F.S. / 10 °C |
| Temp.effect on zero | ±0.1%F.S. / 10 °C |
| Input resistance | 350 ± 10 Ω |
| Output resistacne | 350 ± 5 Ω |
| Insulation | ≥5000MΩ(50VDC) |
| Recommended excitation | 5~10VDC |
| Maximum excitation | 15VDC |
| Compensated temp. range | -10~40°C |
| Operation temp. range | -20~60°C |
| Safe overload | 120 %F.S. |
| Ultimate overload | 150 %F.S. |
| Cable size | Φ 3.0x3m |
| Protection class | IP66 |
Dimension(mm)
Load Direction
Application
The cantilever high-precision tension sensor with roller slide shaft can more easily measure the tension value of cloth, belt, wire, strip and other materials.
Used in automatic tension detection equipment, weaving industry, wire and other tension detection control systems.
