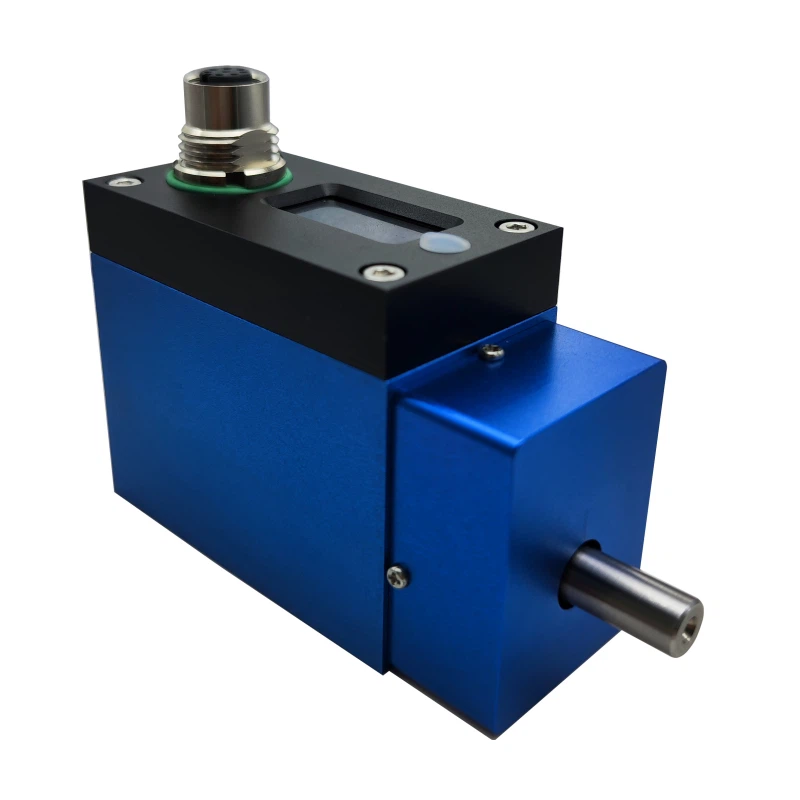

BRG-62500 Torque And Angle Sensor
Product Introduction
A torque-angle sensor is a sensor that can simultaneously measure both the torque (rotational moment) and the rotational angle of a mechanical component. Torque sensors incorporate an encoder with angle measurement. They convert the torque acting on a mechanical shaft into an electrical signal through a physical change (such as torsional deformation of the shaft) and simultaneously measure the shaft’s rotational angle, providing information on the torque magnitude and rotational position.
1. Non-contact
2. Measuring range 0.1-5 Nm
3. Output 10 ± 5 kHz, 4-20 mA, ± 5 VDC, ± 10 VDC, RS485/232
4. Stainless steel shaft
5. Maximum speed 15,000 RPM
6. Speed output available
7. Built-in encoder
8. Display of torque, speed, and power available
Technical Parameters
| Range | 0.1,0.2,0.5,1,2,3,5Nm |
| Accuracy | ±0.1,±0.2%FS |
| Zero Temperature Effect | ±0.02%FS |
| Span Temperature Effect | ±0.02%FS |
| Compensated Temperature Range | -10～60ºC |
| Operating Temperature Range | -20～75ºC |
| Torque Output | 10±5kHz ,4-20mA, ±5VDC,±10VDC,
RS485, RS232,CAN, |
| Supply Voltage | 12-24VDC |
| Supply Current | Less than 100mA |
| Electrical Connections | 8-Pin |
| Overload Protection | 200%FS |
| Material | Shaft material 17-4PH stainless steel, housing is aluminum |
| Speed Measurement | Maximum speed: 15,000 RPM, 60/30 pulse,
4-20mA, 5V/TTL, ±5VDC, ±10VDC, RS485, RS232, CAN Built-in encoder output signal is the same as the speed, which can be customized |
Drawing (mm)
