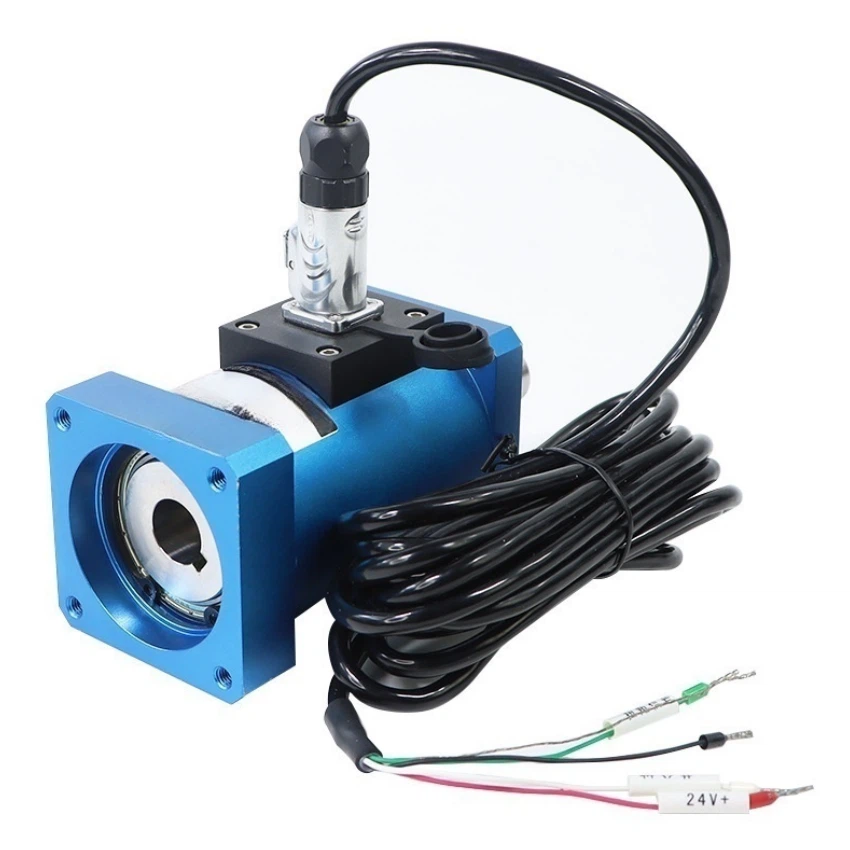

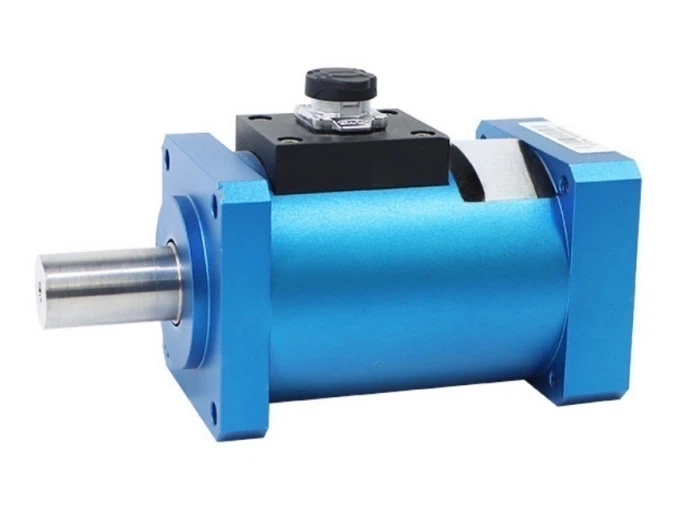

BRG-6201 Motor Dynamic Torque Sensor
Description
Featrures :
- Highly responsive and with high overall accuracy;
- Strong anti-interference capability, high accuracy and good stability, digital output signal, small size, light weight, and easy to install.
- Mainly used for detecting torque, speed, and power in servo motors, generators, reducers, and diesel engines.
Technical parameters
| Range | 0-500N.m |
| Speed signal | 0-3000RPM |
| Torque signal | ＜ 2.0mV/V |
| Power supply | DC 5-15V |
| Non-linearity | 0.1% F.S |
| Zero balance | ±0.5% F.S |
| Hysteresis | ±0.5% F.S |
| Repeatability | ±0.05% F.S |
| Creep (30 minutes) | 0.05% F.S |
| Temperature Sensitivity Drift | 0.05%F.S/10℃ |
| Zero-Point Temperature Drift | 0.05%F.S/10℃ |
| Stability per year | 0.3% /year |
| Response Frequency | 1kHz |
| Material | alloy steel |
| Impedance | 700±5Ω |
| Insulation Resistance | ≥5000MΩ(100VDC) |
| Operating Voltage | 1–15V |
| Operating Temperature Range | -20~80℃ |
| Relative humidity | 0~90%RH |
| Safe Overload | 150% |
| Ultimate Overload | 200% |
| Cable Ultimate Tensile Strength | 10kg |
| Cable Specifications | Φ5x3m |
Dimension :
| Range
(N.m) |
A | B | C | C1 | C2 | D | D1 | d1 | d2 | E | F | G | H | H1 | K | L | L1 | M | W1 | W2 |
| 0.1-100 | 62 | 73 | 5.5 | 6*22 | 5*28 | 62 | 50 | 16 | 18 | 18 | 11.5 | 4 | 37 | 9 | 42 | 140 | 108 | M5 | 70 | 70 |
| 200-500 | 72 | 94.5 | 5.5 | 8*28 | 8*28 | 72 | 60 | 28 | 28 | 18 | 11.5 | 4 | 37 | 9 | 52 | 148 | 108 | M5 | 84 | 84 |
Preferred Material
Durable, rust-resistant, high-temperature resistant, wear-resistant, with high strength and toughness, good hardenability, and high fatigue strength.
High-precision strain gauges
AVIC’s high-precision strain gauges offer high measurement accuracy, low creep, minimal thermal hysteresis, and good long-term stability.
Widely Application
Torque measurement suitable for various rotating scenarios, with speeds ranging from 0 to 1800 RPM.
