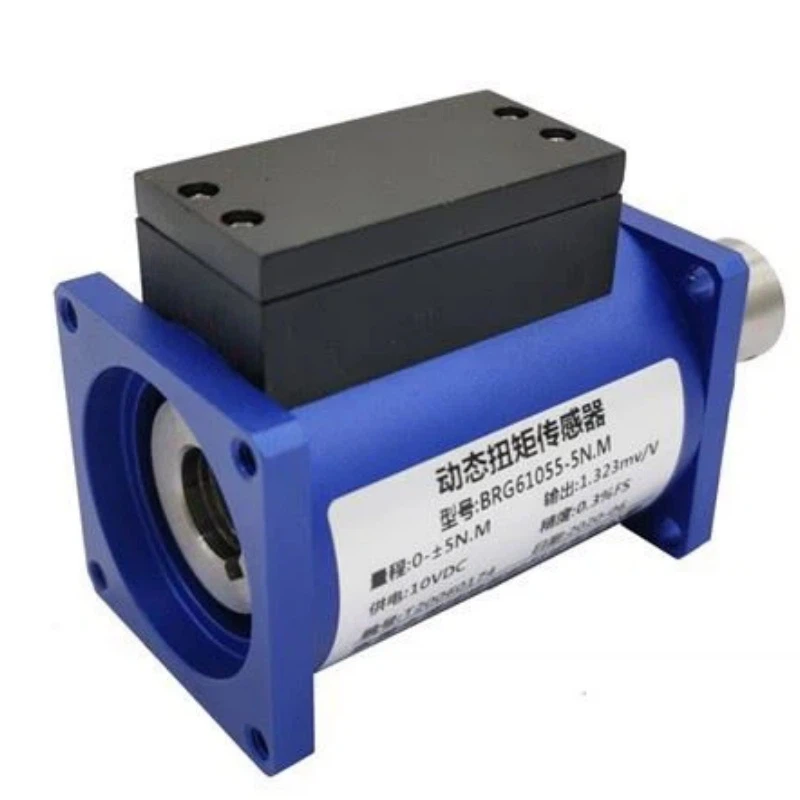

BRG-61055 Rotary Torque Sensor Price
Description
Features and Applications
- Integrated product consisting of a resistance strain gauge sensing element and an integrated circuit, offering high precision and stable, reliable performance.
- Outputs forward and reverse torque signals.
- Both ends are keyed connections.
- Speed up to 1800 RPM, short-term up to 3000 RPM.
Technical Parameters
| Range | 0~5,10,20,30,50,100Nm |
| Output | 1.5mV/V±10%F.S. |
| Accuracy | ±0.1,±0.2%F.S. |
| Zero Temperature Effect | ±0.03%F.S. |
| Span Temperature Effect | ±0.03%FS |
| Compensated Temperature Range | -10～60ºC |
| Operating Temperature Range | -20～75ºC |
| Supply Voltage | 5~10VDC |
| Input resistance | 350±20Ω |
| Output resistance | 350±10Ω |
| Response frequency | 100μS |
| Insulation resistance | ≥5000MΩ/100VDC |
| Safety overload | 150% F.S |
| Extreme overload | 200% F.S. |
| Cable size | Ø5×3m |
| Material | Shaft material 17-4PH stainless steel, housing is aluminum |
| Electrical connections | Red/E+, Black/E-, Green/S+, White/S- |
Dimension (mm)
| Model | CAP-Nm | A | B | C | D | E | F | G | J | K1 | K2 | L | M | N | T | MX | Y |
| BRG61055A | 0-100 | 42 | 50 | 35 | 5 | 26 | 73 | 42 | 13 | 4 | 6×15 | 14.8 | 63 | 93 | 5 | M4 | 4.5 |
| BRG61055B | 0-100 | 62 | 70 | 50 | 7 | 39 | 91 | 62 | 16 | 6 | 6×22 | 18.3 | 77 | 122 | 7 | M5 | 5.5 |
Small size, space-saving
Cable exit via pressure plate saves even more space; Its compact size makes it easy to carry and can be directly installed on drive equipment.
High-quality Components
It can operate at high speed for extended periods, outputting forward and reverse torque signals, and has strong anti-interference capabilities.
Widely Applications
Testing of output torque and power of rotating power equipment such as electric motors, engines, and internal combustion engines.
