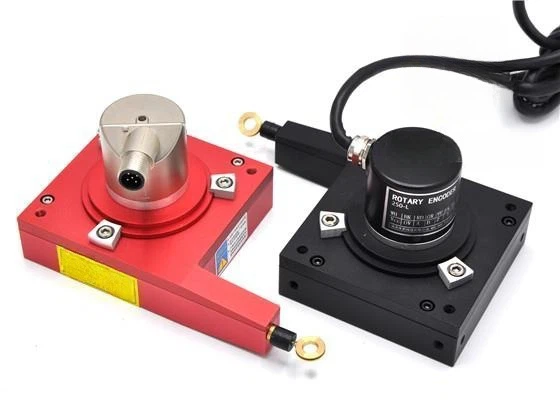

BRG-25 series wire-drawn displacement sensor has a maximum measuring stroke of 3200mm, a measuring wheel circumference of 230mm, and a wire rope diameter of 0.8mm. It is a new product designed to meet the special needs of size in some narrow spaces. In order to ensure the stability and reliability of the product, we have made balanced optimization treatment, aluminum alloy shell, completely anti-jump wire design, greatly improved wire rope diameter, eliminating the loss of accuracy caused by the swing of the measuring wheel, and no internal guide wheel design. The advantage is that it improves the measurement accuracy and reduces the wear of the wire rope and increases its life. The appearance size can be seamlessly replaced with foreign competing products.
- High-speed & Long-term Stability: Ensures reliable operation even under prolonged high-speed conditions.
- Ready Stock & Competitive Pricing: Available for immediate delivery with cost-effective solutions.
- High Precision: Delivers accurate and consistent measurements.
- Slim Design: Compact and thin structure for easy installation in tight spaces.
- Fully Compatible: Direct replacement for SICK sensors, offering better value.
Mechanical Environment Technical Parameters
| Working range | 0~3000mm |
| Outlet type | Copper Y-shaped bell mouth |
| Pull box size | 82*82*25 |
| Encoder connection | Pure copper precision adaptive coupling |
| Thickness of cable box | 25mm |
| Steel wire rope | 316 Plastic coated steel wire rope/non-plastic coated steel wire rope |
| Measuring wheel circumference | 230.4044mm (0.8mm steel wire rope) |
| Wire rope diameter | 0.8mm 1.0mm (optional) |
| Shell material | Aluminum alloy |
| Outlet tension | 4N |
| Maximum speed | 5000mm/s |
| Protection level | IP67 |
| Workig Tem. | -25-85℃ |
| Working life | 1.5 million reciprocating cycles |
Electrical Related Technical Parameters
| Output signal | CAN PN MODBUS RTU SSI Current |
| Standard adapter encoder | Our own adapter |
| Encoder connection | Pure copper precision adaptive coupling |
| Working voltage | 5V, 5-24V, 10-30v |
| Linear accuracy | 0.05% F.S. |
| Imported encoder adapter | Recommended 36 outer diameter encoder |
Dimension (mm)
Proper Alignment – Ensure the wire rope is perpendicular to the encoder. Avoid friction at the exit port.
Secure Mounting – Fix both the sensor base and moving end firmly to prevent loosening during long-term operation.
Avoid Sudden Release – Never let the wire snap back after extension, as this may damage the sensor. Do not exceed the maximum wire length.
Correct Wiring – Follow the sensor’s wiring diagram strictly before powering on to prevent electrical faults.
Handle with Care – This is a precision instrument-avoid impacts and keep the device & wire rope clean for extended durability.
Protect the Wire Rope – Prevent external damage (e.g., crushing, bending, or sharp impacts).
Harsh Environments – For outdoor or demanding conditions, consult us for dustproof/waterproof exits or protective enclosures.
