BRG 210L Strain Gauge Force Sensor
Description

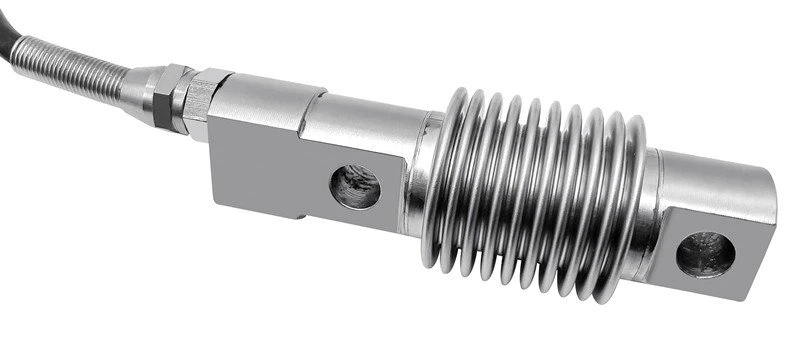

BRG 210L Strain Gauge Force Sensor
Characteristics
1. Load Cell Based Weighing System adopts double-hole cantilever structure and is sealed with metal bellows, which has reliable performance, small influence of eccentricity and lateral force, good dynamic response, high measurement accuracy, anti-fatigue, anti-eccentric load, and can withstand two working modes of tension and compression.
2. It is suitable for the measurement and control of electronic scales, belt scales, hopper scales and other force values.
3. Optional amplifier, standard output 4-20mA, 0-5V, 0-10VOr RS485.
Detials
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 3, 5, 7, 10, 15T | output resistance | 700±5Ω | |
| Sensitivity | 2.0±10% mV / V | Insulation resistance | ≥5000MΩ / 100VDC | |
| Zero output | ±2% F.S. | Excitation voltage | 10-15VDC | |
| Non-linear | ≤±0.03% F.S. | Temperature compensation range | -10 ~ 60ºC | |
| Hysteresis | ≤±0.03% F.S. | working temperature | -20 ~ 80ºC | |
| Repeatability | ≤±0.03% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 750±10Ω | Material | stainless steel or alloy steel |
