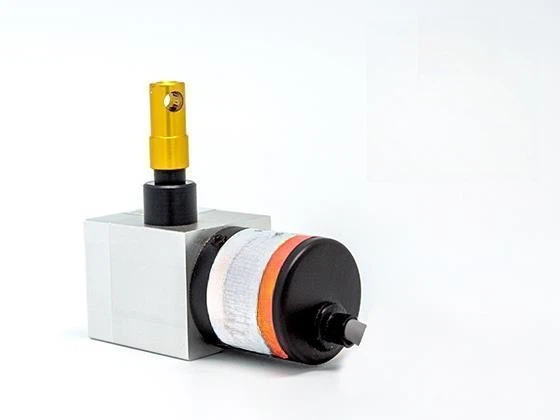

Brg-15 Micro Displacement Sensor For Fast Measurements
Description
Cooperative Partner
BRG-15 micro displacement sensor, maximum measuring stroke 400mm, measuring wheel circumference 40mm; mainly designed for narrow measuring space, is the smallest and most stable classic product in China. This sensor has been put on the market for many years and has been widely used in many fields after market testing. This product has EU CE export certification and ROSH environmental protection certification and can be exported to various EU countries.
Technical Parameters
| Range | 0~400mm |
| Output signal | 4~20mA,0~5V, 0~10V, 0~10KΩ |
| Linear accuracy | 0.1%F.S |
| Signal form | Resistance |
| Repeatability | 0.02%FS |
| Current consumption | <30 mA |
| Working voltage | DC12~24V; DC5V |
| Working temperature | -40°C~125°C |
| Stretching speed | 500mm/s (Max) |
| Wire rope material | SUS 316L |
| Cable length | Standard 2 meters |
| Wire rope diameter | 0.6mm ultra-flexible wire rope |
| IP Grade | IP54 |
| Spring material | imported stainless steel |
| Hub circumference | 40mm |
| Wiring method | Single layer wiring |
| Working life | 2 million times |
| Shell material | Aluminum alloy |
| pull | 2~4N |
| Pull box size | 32*32 (mm) |
Dimension (mm)
