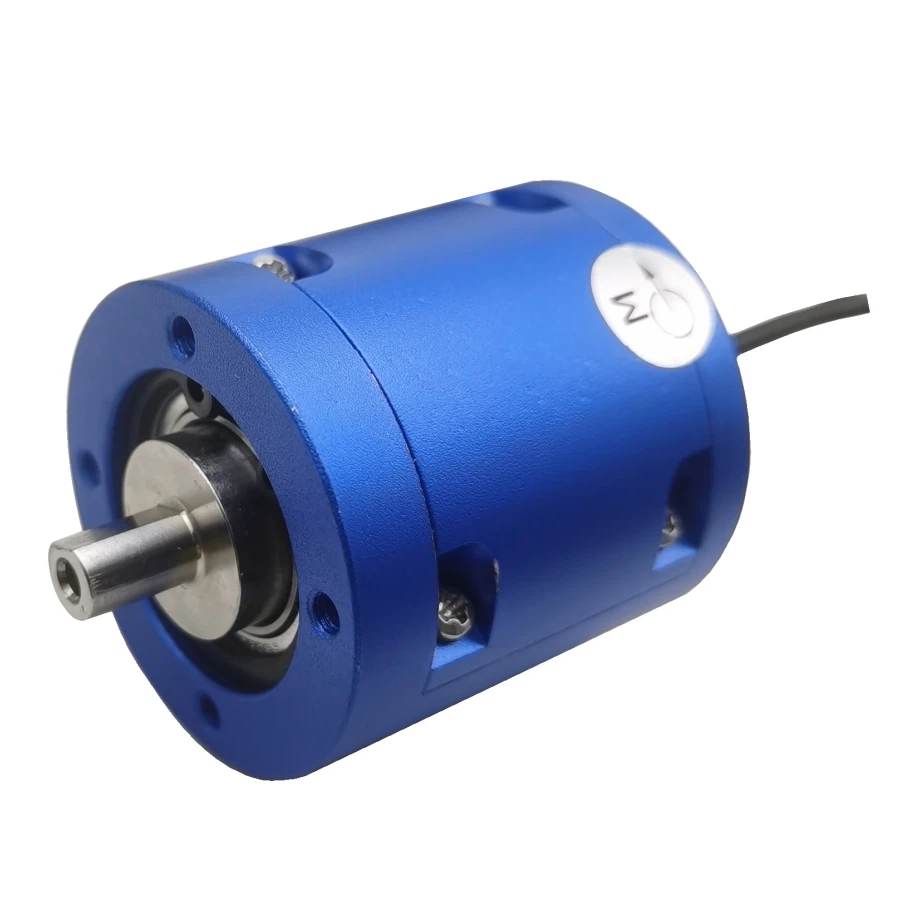

BRG 1050T Rotating Torque Transducer
• This product integrates a resistance strain gauge sensor and an integrated circuit, offering high precision, stable, and reliable performance.
• Outputs forward and reverse torque signals.
• Easily connects to electric screwdrivers.
• Maximum speed: 1500 RPM.
Technical Parameters
| Range | 0~±5Nm |
| Output | 1.5mV/V ±10%F.S |
| Accuracy | ±0.3%FS |
| Zero Temperature Effect | ±0.03%FS |
| Span Temperature Effect | ±0.03%FS |
| Compensated Temperature Range | -10～60ºC |
| Operating Temperature Range | -20～75ºC |
| Supply Voltage | 5~10VDC |
| Input resistance | 350±20Ω |
| Output resistance | 350±10Ω |
| Response frequency | 100μS |
| Insulation resistance | ≥2000MΩ/100VDC |
| Safety overload | 150% F.S |
| Extreme overload | 200% F.S. |
| Cable size | Ø2×3m |
| Speed | 1500RPM |
| Material | Shaft material 17-4PH stainless steel, housing is aluminum |
| Electrical connections | Red/E+, Black/E-, Green/S+, White/S- |
| Special shaft length | Customizable |
Dimension (mm)
Made Of High-quality Stainless Steel And Aluminum Alloy
Durable, rust-resistant, heat-resistant, and wear-resistant, it offers high strength and toughness, good hardenability, and fatigue resistance. Straight-out wiring allows for easy installation.
Selected High-quality Components
Enable high-speed, long-term operation, output forward and reverse torque signals, and strong anti-interference capabilities. AVIC high-precision strain gauges offer high measurement accuracy, minimal creep, minimal thermal hysteresis, and excellent long-term stability.
Compact and Lightweight
It can measure both static and rotating torque. Its compact size and light weight make it easy to install without a base.
