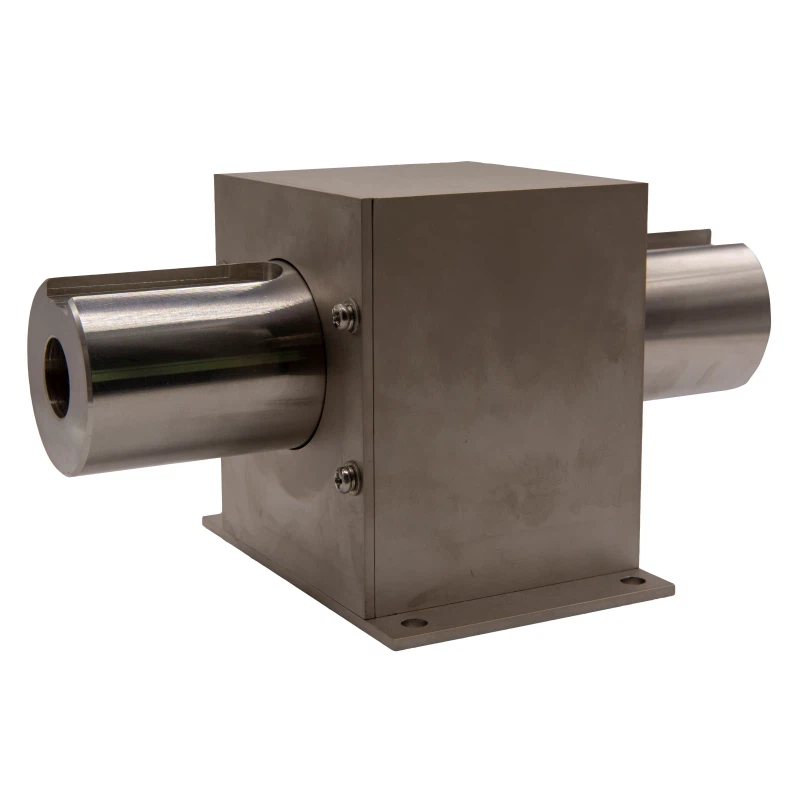

BRG-100B Dynamic Torque Transducer
Product Introduction
Our dynamic torque sensors measure dynamic torque on rotating shafts, enabling real-time monitoring and measurement of torque changes during the motion of rotating components or mechanical systems. Based on the principle of strain measurement, they use strain gauges to sense the strain on the rotating shaft, generating a tiny electrical signal. After amplification and processing, the output signal reflects the magnitude and changes in torque on the rotating shaft. Characterized by high precision, high-frequency response, multi-channel measurement, and high reliability, they are widely used for dynamic torque measurement in automotive engines, transmissions, aircraft engines, propellers, manufacturing equipment, and research.
1. This product integrates a resistance strain gauge sensor and an integrated circuit, offering high precision, stable, and reliable performance.
2. It outputs forward and reverse torque signals.
3. Both ends are keyed.
4. It can reach a speed of 300 RPM, with a maintenance cycle of 10 million revolutions.
Technical Parameters
| Range | 0-200,300,500,1000,2000Nm |
| Accuracy | ±0.1,±0.2%FS |
| Zero Temperature Effect | ±0.03%FS |
| Span Temperature Effect | ±0.03%FS |
| Compensated Temperature Range | -10～60ºC |
| Operating Temperature Range | -20～75ºC |
| Torque Output | 1.5mV/V±10%F.S. |
| Supply Voltage | 5-10VDC |
| Input resistance | 350±20Ω |
| Output resistance | 350±10Ω |
| Response frequency | 100μS |
| Insulation resistance | ≥2000MΩ/100VDC |
| Safety overload | 150% F.S |
| Extreme overload | 200%FS |
| Material | Shaft material 17-4PH stainless steel, housing is aluminum |
| Electrical connections | Red/E+, Black/E-, Green/S+, White/S- |
| Special shaft length | Customizable |
Drawing (mm)
Aviation Plug
Standard aviation plug, plug-and-play, easy installation
High-quality Bearings
Strong mechanical fatigue resistance, good hardenability, capable of high-speed, long-term operation, output forward and reverse torque signals, and strong anti-interference capabilities
High-quality Core Components
Excellent stability, high detection accuracy, and high-precision engraving
Used for dynamic torque measurement in automotive engines, transmissions, aircraft engines, propellers, manufacturing equipment, and research.
