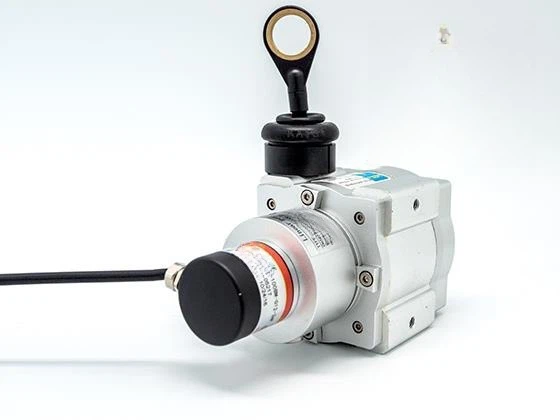

BGR-601 Helical Structure Draw Wire Sensor Encoder
The maximum measuring stroke of the S601 series wire-drawn displacement sensor is 2000mm. It is a high-end brand product launched by us. This product adopts large-diameter multi-strand steel wire rope and independent automatic winding spiral structure, which completely eliminates the wire jamming and breaking faults of imported products. It is mainly suitable for high precision, long life and harsh working environment. It is at a higher level in the industry and can replace well-known brand products.
Compact Size, Complete Type
The product is designed to be small and space-saving, making it easy to fit in tight or crowded areas. Despite its compact size, it includes all necessary components and functions, so you don’t miss out on any features.
High Test Accuracy
It delivers precise and reliable results during testing, ensuring that measurements or performance data are correct. This makes it trustworthy for professional or critical applications.
Long-Life Using
Built with durable materials and high-quality components, this product lasts longer than average. You won’t need to replace it frequently, saving you time and money.
Easy Installation
Setting it up is simple and hassle-free. Whether you’re a professional or a beginner, you can get it working quickly without complicated steps or extra tools.
Passed CE (Certificate of Compliance)
This product meets strict European safety and performance standards (CE marking). It’s been tested and approved for quality, so you can use it with confidence.
Good After-Sale Service
If you ever have questions or issues, the company provides helpful customer support. They assist with troubleshooting, repairs, or replacements, ensuring you’re satisfied even after purchase.
Product Parameters
| Range | 0~2000mm |
| Output signal | Differential, open circuit, push-pull, voltage, RS485/232, absolute value optional |
| Linear accuracy | 0.05% FS |
| Working Temperature | -25°C~85°C |
| Repeatability | 0.01% FS |
| Working voltage | DC5~24V |
| Resolution | 0.01/ 0.02 ,0.05 and other |
| Wire Rope | 1.2MM high-flexibility imported steel wire rope
1.35MM optional |
| IP grade | IP65 |
| Shell material | Aluminum alloy precision mold, anti-static interference and non-conductive surface |
| Working life | 2 million times |
| Working voltage | 5V,5-24V,10-30v |
| Measuring wheel circumference | 200mm |
| Stretching speed | 4000m/s (Max) |
| pull | 6N |
Dimension (mm)
How to choose the output type of the encoder ?
Most digital outputs are rotary encoder signal outputs. Before selecting, you must confirm what kind of encoder your acquisition system needs. European PLCs recommend push-pull output types, which can also be supported by Japanese and Korean PLCs. Microcontroller acquisition cards use long-line drivers for acquisition. Understand the frequency of the acquisition system and the running speed of the test object, and confirm that the resolution you choose can be used. If you don’t know much, tell us and we will help you. Absolute encoders are mainly brands. European ones are expensive and of good quality.
