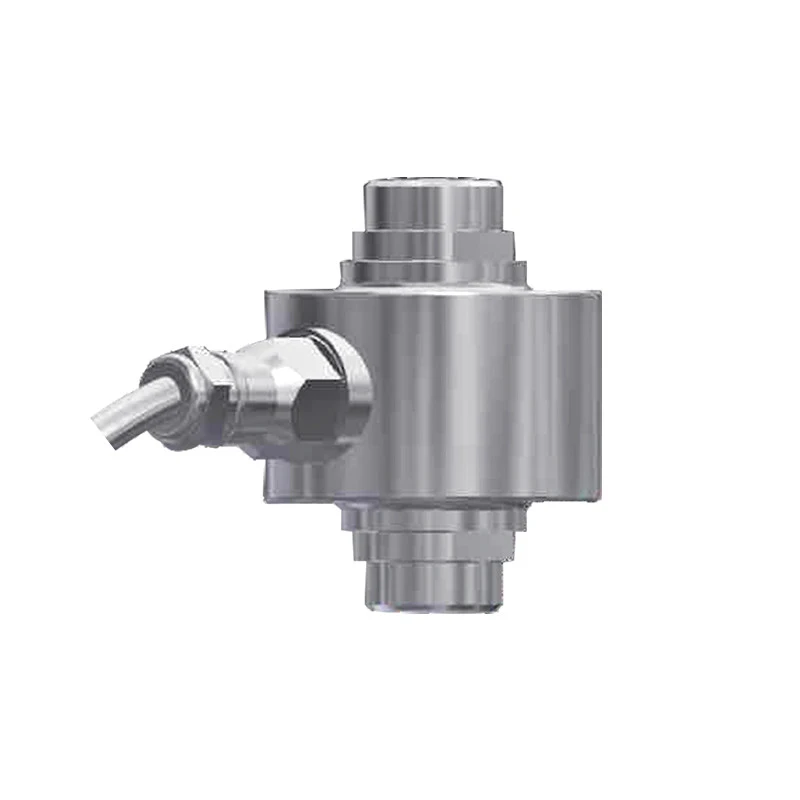

WL-140 Heavy-Duty Column Load Cell 5-22.5t IP68 for Truck Scales Vehicle Testing
|
Capacity:
|
5/7.5/15/22.5t
|
Rated Output:
|
2.0±0.1mV/V
|
|
Combined Error:
|
0.02%F.S.
|
Recommended Excitation:
|
5~15VDC
|
|
Bridge Resistance:
|
390±5Ω
|
Material:
|
Alloy Steel/Stainless Steel
|
|
Cable Size:
|
Ф6x13000mm(Customizable)
|
Safe Overload:
|
150%F.S
|
|
Operation Temp.:
|
-20~80°C
|
Protection Class:
|
IP68 (Customizable)
|
|
Non-linearity:
|
0.02%F.S.
|
Repeatability:
|
0.02%F.S.
|
|
Zero Balance:
|
±2%F.S.
|
Insulation Resistance:
|
>5000MΩ/100VDC
|
WL-140 Heavy-Duty Column Load Cell (5-22.5t) – IP68 for Truck Scales & Vehicle Testing
Features & Applications
Key Features:
-
Heavy-duty column design
-
Stainless steel/alloy steel options
-
5-22.5t capacity range
-
IP68 waterproof protection
-
Self-restoring function
-
Fast dynamic response
Main Applications:
✔ Truck scales
✔ Vehicle testing systems
✔ Hopper weighing
✔ Industrial batching
Technical Benefits:
-
Superior overload protection
-
Easy installation
-
Maintenance-free
Our Commitment:
At Brans, we pride ourselves on delivering tailored solutions that precisely match our clients’ unique requirements. Recognizing that every application has distinct challenges, we offer customizable single point load cell configurations to ensure optimal performance for your specific needs.
Custom Solutions Available:
• Application-specific adaptations
• Modified specifications upon request
• Engineering support for specialized requirements
Specifications:
| Capacity | 5/7.5/15/22.5t |
|---|---|
| Combined Error | 0.02%F.S. |
| Non-linearity | 0.02%F.S. |
| Repeatability | 0.02%F.S. |
| Rated Output1.94 | 2.0±0.1mV/V |
| Zero Balance | ±2%F.S. |
| Insulation Resistance | >5000MΩ/100VDC |
| Recommended Excitation5 | 5~15VDC |
| Material | Alloy Steel/Stainless Steel |
| Operation temp | -20~80°C |
| Safe overload | 150%F.S. |
| IP class | IP68 (Customizable) |
| Cable size | Ф6x13000mm(Customizable) |

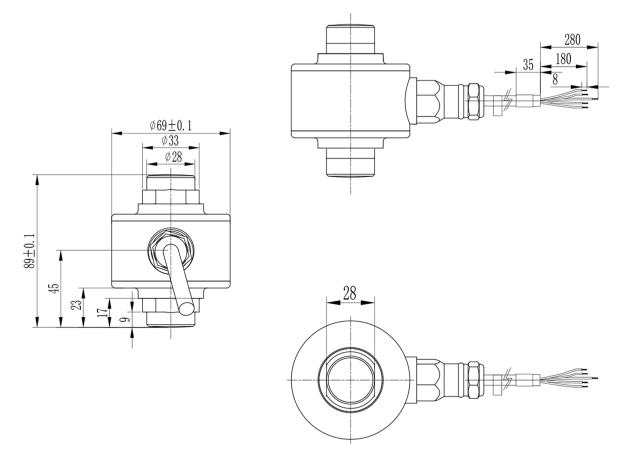

Dimension(MM):
Load Direction:
Wiring:
