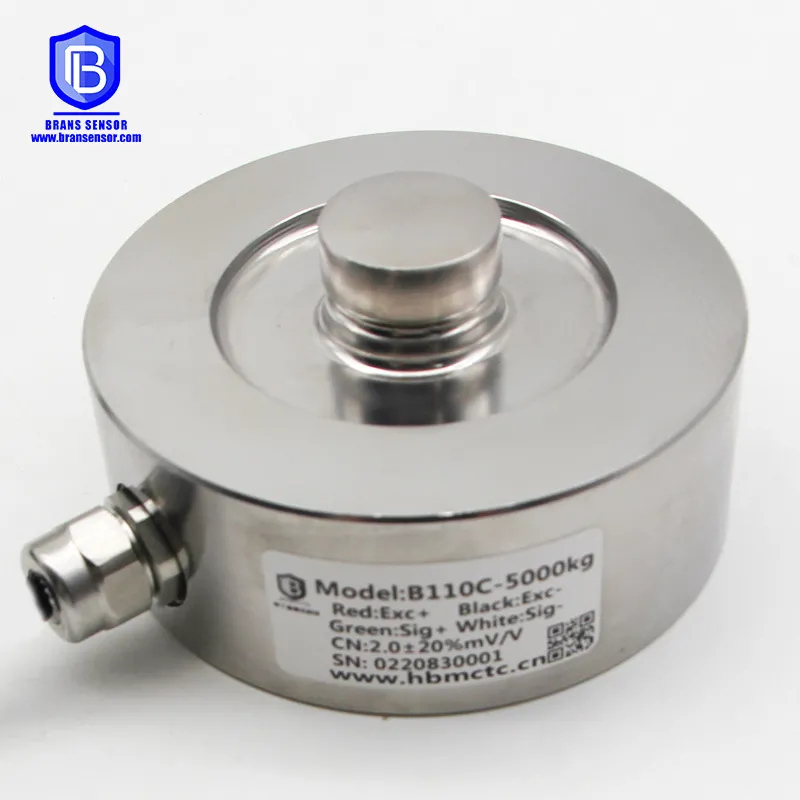

Pancake/Canister Load Cell CF-808 – High-Capacity Button Sensor For Precision Assembly & Automation

Highlight: high-capacity pancake load cell, precision assembly load cell, automation canister load sensor
Capacity:
15/20/30t
Combined Error:
0.05%F.S.
Non-linearity:
0.05%F.S.
Repeatability:
0.05%F.S.
Rated Output:
2.0±0.1%mV/V
Zero Balance:
±0.05mV/V
Insulation Resistance:
>5000MΩ/100VDC
Material:
Stainless Steel
Safe Overload:
150%F.S.
Protection Class:
IP68 (Customizable)
Operation Temp.:
-20~80°C
Cable Size:
Ф5x5000mm
Pancake/Canister Load Cell CF-808 – High-Capacity Button Sensor For Precision Assembly & Automation

Features & Applications

  1. The Pancake or Canister Load Cell model CF-808 is a high-capacity button-type compression sensor built for robust industrial applications.
  2. Manufactured from durable stainless steel, the Pancake or Canister Load Cell ensures reliable performance and long-term accuracy.
  3. Available in large capacities of 15, 20, and 30 tons, this Pancake or Canister Load Cell is engineered to handle significant force requirements.
  4. Designed with a low-profile form and small deflection, the Pancake or Canister Load Cell offers precise measurements in compact setups.
  5. The Pancake or Canister Load Cell provides high dynamic response frequency, ensuring rapid and accurate force feedback in dynamic applications.
  6. Ideal for demanding industrial processes, the Pancake or Canister Load Cell is used in automotive press fit, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, and mold assembly.
  7. The Pancake or Canister Load Cell is a key component in various industrial testing and control systems, enhancing process reliability and precision.
  8. Incorporate the CF-808 Pancake or Canister Load Cell into your automated systems for dependable, high-capacity force measurement and control.

Specifications

Capacity 15/20/30t
Combined Error 0.05%F.S.
Non-linearity 0.05%F.S.
Repeatability 0.05%F.S.
Rated Output 2.0±0.1%mV/V
Zero Balance ±0.05mV/V
Insulation Resistance ≧5000MΩ/100VDC
Recommended Excitation 2~12VDC
Material Stainless Steel
Safe Overload 150%F.S.
Protection Class IP68(Customizable)
Operation Temp. -20~80°C
Cable Size Ф5x5000mm

Dimensions(mm)

Pancake/Canister Load Cell CF-808 – High-Capacity Button Sensor For Precision Assembly & Automation 0

Capacity A B C D E F M&G
50kN 100 48 35 28 120 70 M10Deep 20
100kN 126 54 40 35 120 90 M12Deep 20

Load direction

Pancake/Canister Load Cell CF-808 – High-Capacity Button Sensor For Precision Assembly & Automation 1

Wiring code

Pancake/Canister Load Cell CF-808 – High-Capacity Button Sensor For Precision Assembly & Automation 2
