AT8701 Static Torque Sensor
Features and uses:
※ Static torque sensor
※ Compact structure for easy installation
Protection rating: P65
※ For measuring torque values in static, discontinuous rotation.
Product description:
Capacity ：1~10000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
- Range: 0~5000N m
- Output: 1mv/V, 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.1%F.S
Static Torque Sensor
D 38mm*H 31.8mm
Capacity: 0.1,0.2,0.5,1,2,3, 5,10N.m
Category: Static Reaction Torque Sensor
It is suitable for static and discontinuous rotation torque measurement.
Material: Aluminum alloy
Exterior: Compact structure Easy to install
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: Aluminum alloy
Features: Low height
Applicable to measure and control of the static, non-continuous rotation torque force value

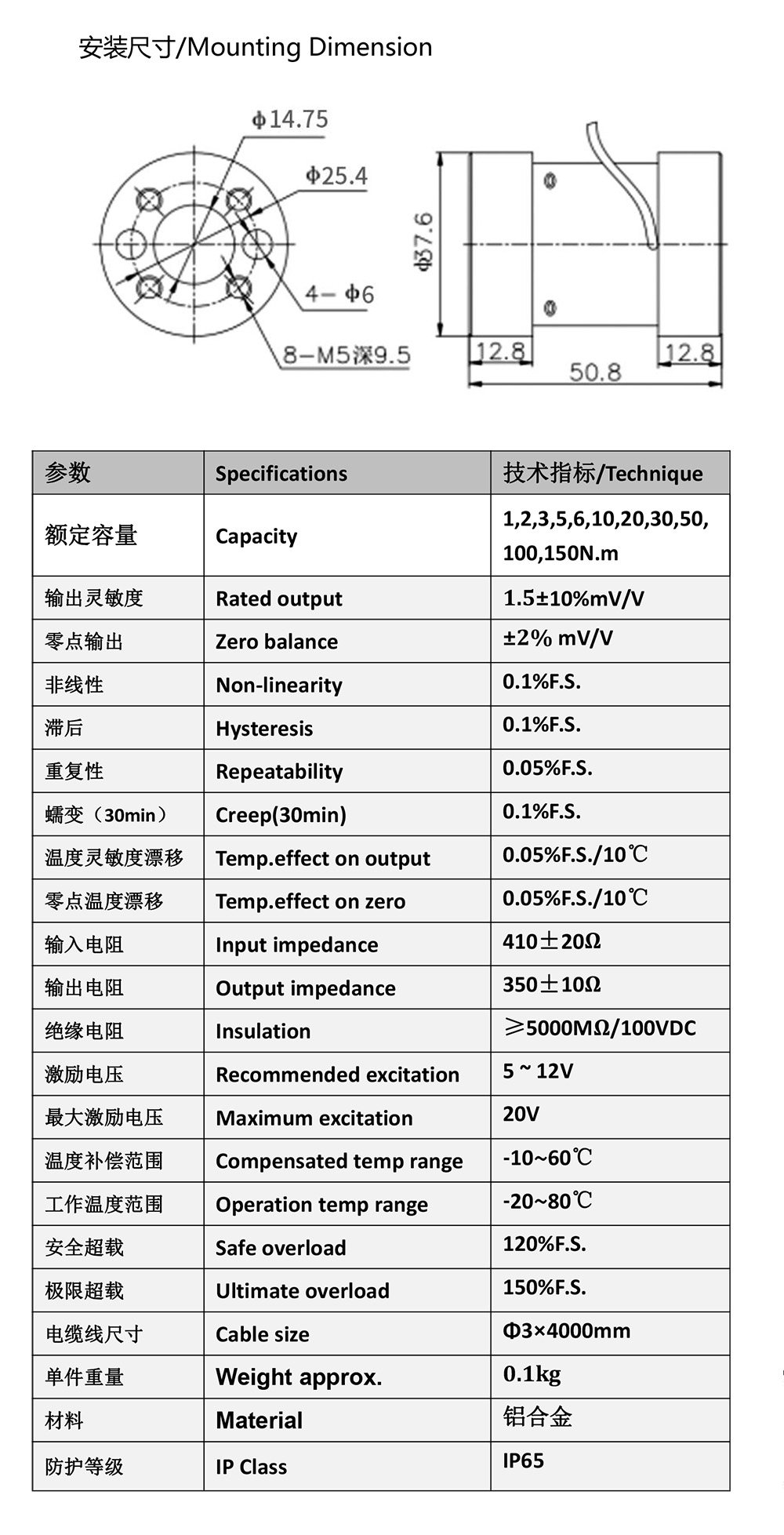

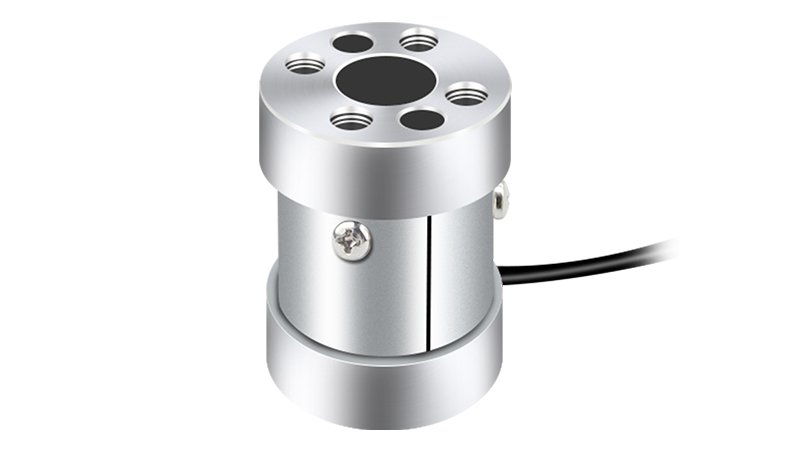

Static Torque Sensor
D 37.6mm*H 50.8mm
Capacity: 1,2,3,5,6,10,20,30,50,100,150N.m
Category: Static Reaction Torque Sensor
Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm. The measuring range and dual flange size can be customized to meet customer’s requirements.
Features:
Capacity 5Nm-10000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features
Hermetically sealed available
Product description:
Capacity ：0-5-200N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Suitable for measuring the torque of static and discontinuous rotation.
- Range: 0~20KN m
- Output: 1mv/V, 0~±5/10V, 4~20mA optional
- Accuracy: ±0.2%F.S
Widely used for torque value measurement of static and discontinuous rotation, professional screwdriver, screw tightening, etc .; Compact structure for easy installation;
Material: Alloy steel
Features: Strong bending moment Long frequency life
