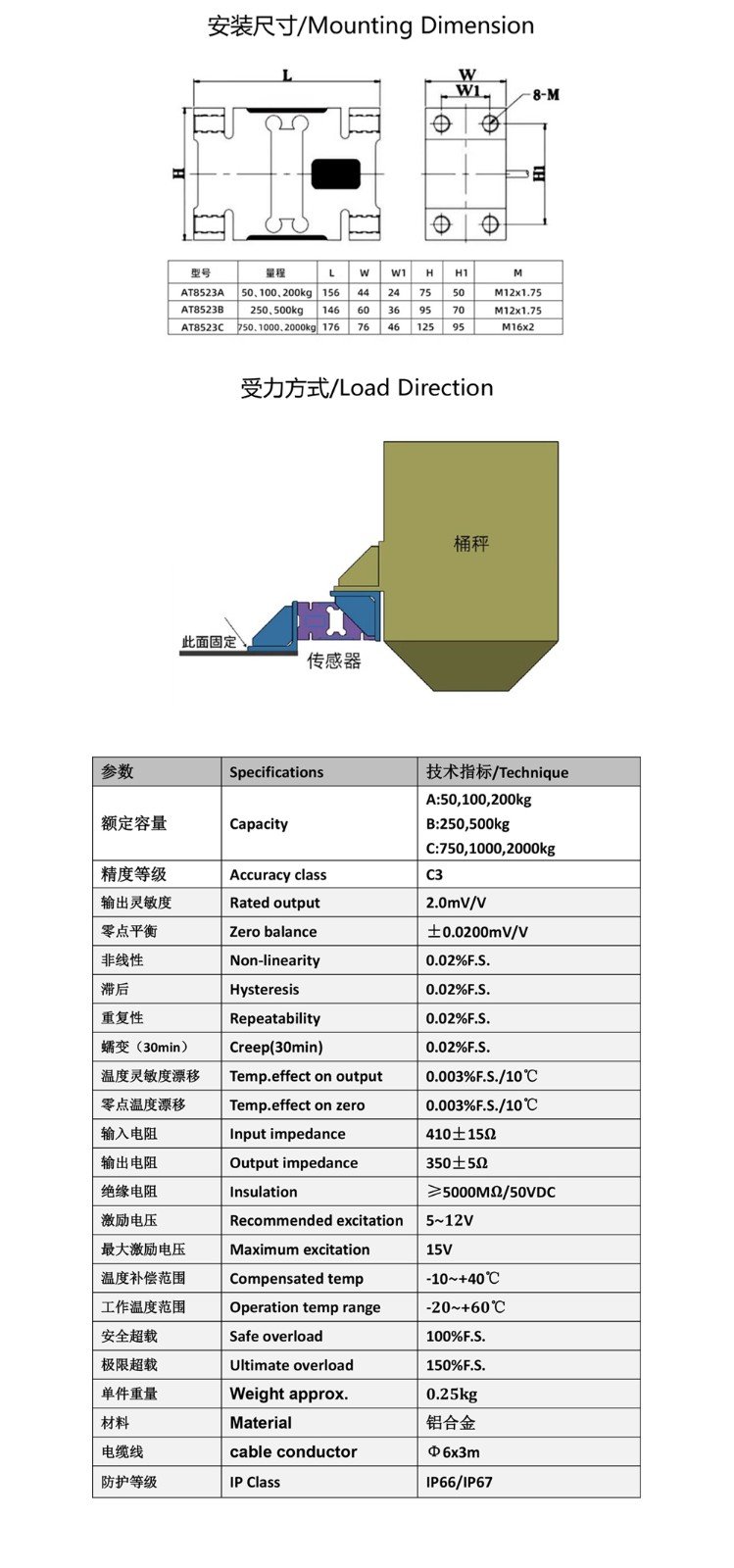

AT8523 Single-point Load Cell
Features and uses:
※ Aluminum alloy
※ For use with hopper scales
※ High precision and strong resistance to eccentric loads
※ Easy to install, IP66/IP67
Features
용량：60, 100, 200, 300kg
재질 : Aluminum
타입 :Single Point
보호등급 : IP66
Features
용량：10, 20, 30, 50, 100kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
용량：60, 100, 200, 300kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
Capacity: 10–50 kg
Material: Stainless steel
Type: Single Point
Protection Rating: IP67
Suitable for bench scales, packaging and grading machines, bag filling equipment, bottle filling machines, and other process weighing applications.
용량：100, 200, 300, 400, 500
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
용량：50, 100, 150, 200, 250, 300, 500
재질 : Aluminum
타입 : Single Point
보호등급 : IP67
용량：30, 50, 100, 200, 250, 300kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP66
Capacity: 300 kg–2 t
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for heavy-duty platform scales with a single load cell structure.
용량：150, 250, 500kg, 1t, 2t
재질 : Alloy steel
타입 : Single Point
보호등급 : IP67
Capacity: 100–750 kg
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for platform scales with single or dual load cell structures.
용량：3, 5, 7, 10, 15, 20, 30kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP67
용량：300, 500g, 1, 2, 3, 5kg
재질 : Aluminum
타입 : Single Point
보호등급 : IP65
