Tension load cell – AT52F
Description
Membrane tension load cell, measuring range 1-10KN, small size, easy to install. Suitable for medical equipment, batching scales, etc.

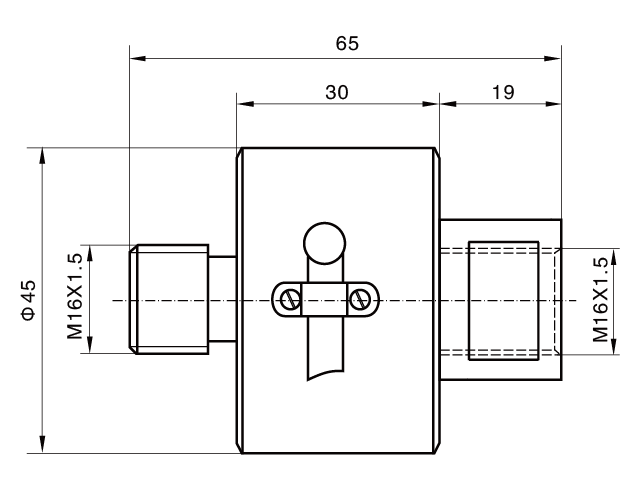

Drawing
Contact us if you need the Datasheet PDF.
