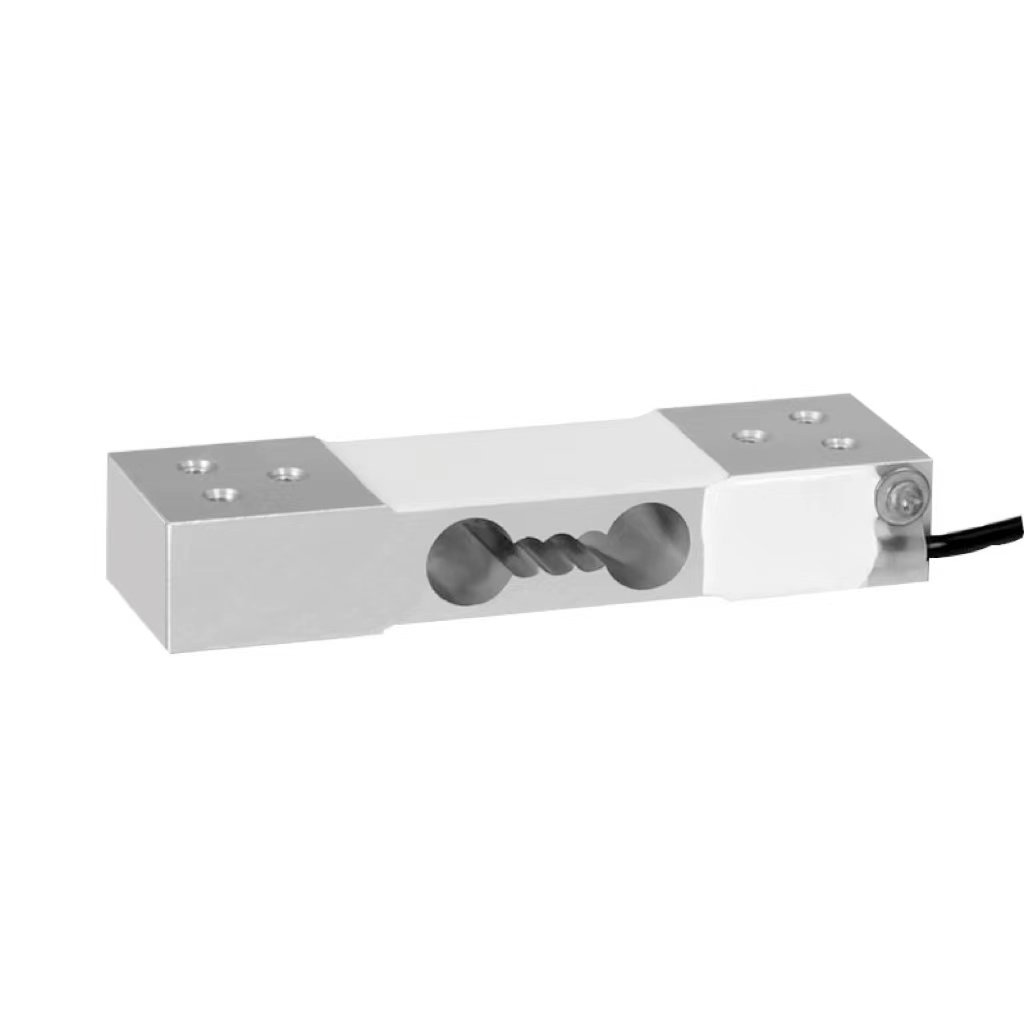

AMOWELLSENSOR / Parallel beam load cell-AP61BN

AP61A parallel beam load cell also called single point load cell, is suitable for 250*350mm platform scale.

Model AP61BN
Capacity 20kg, 60kg, 100kg 150kg,200kg,300kg
Size 130*38*22mm
Accuracy ±0.02%F.S
Certificate RoHS, CE
Creep ±0.02%F.S/30min
Material Aluminum alloy
Sensitivity 2.0±10%mV/V
Add to Wishlist
Share it:

Parallel beam load cell-AP61BN

Description

AP61BN parallel beam load cell also called single point load cell, has 20kg, 60kg, 100kg 150kg,200kg,300kg weight range, suitable for 250*350mm platform scale. High quality aluminium alloy material, surface anodized and anticorrision. The model load cell has good accuracy, Hot sales for platform scale,beehive scales and some other smart products such as racing simulator etc.

Drawing

Contact us if you need the Datasheet PDF.
