Parallel beam load cell-AP61AD
Description

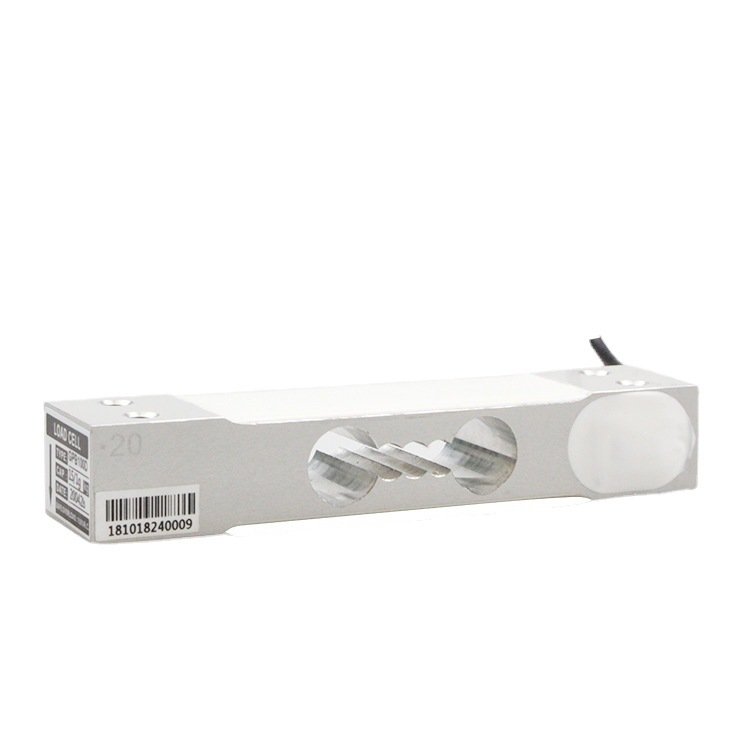

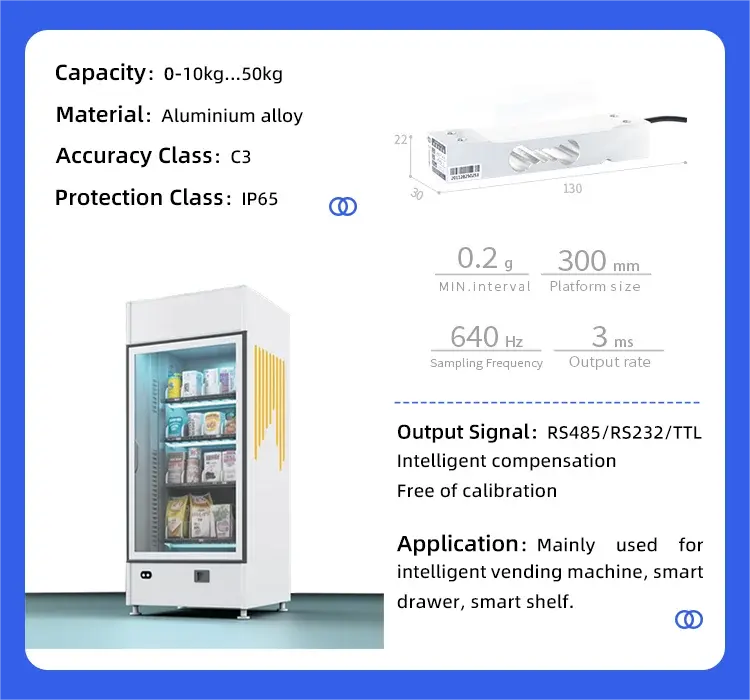

AP61AD Digital Single point load cell 0~40kg
1. Digital temperature compensation, intelligent creep compensation, can maintain long-term stability.
2. A/D sampling rate: 40 times / sec. A/D conversion resolution is 300,000.
3. Weight data output rate: 25 times / sec.
4. To change division value, after that, the corresponding weight can be output, no need for field calibration.
5. The gravity acceleration of the place of use can be modified at the factory, and then there is no need to calibrate again.
6. For easy use, the filter parameters and zero range parameters can be changed depending on the application.
7. The sensor has only one zero-setting command and is easy to use.
8. The weight calibration has been completed at the factory and the user does not need to calibrate again.

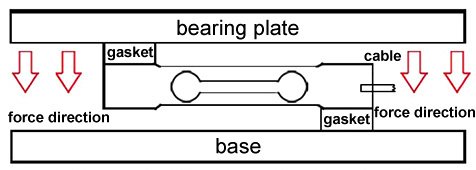

Installation way:
First prepare two flat plates, the material and size are determined according to the equipment needs. Drill holes according to the fixing holes of the load cell; prepare eight screws, screw caps and the gasket below. Place the sensor between the two plates, and fix the plate and the parallel beam load cell firmly with hexagon socket screws. The upper plate holds one end of the sensor and the lower plate holds the other end of the sensor. When fixing, a pre-prepared spacer should be added between the upper and lower plates and the sensor, so that the sensor can be suspended in the air for force measurement. Finally, fix the feet and other parts respectively to complete the installation of the load cell.

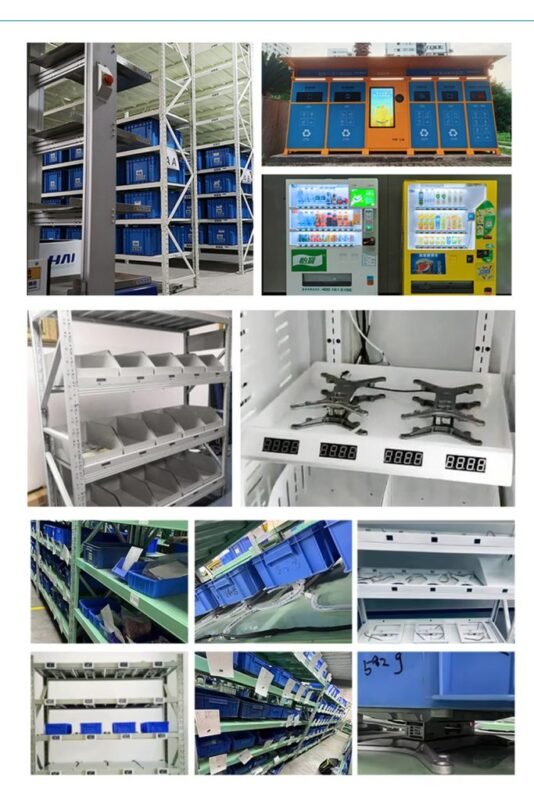

Application :
Drawing
Contact us if you need the Datasheet PDF.
