Wireless Load Shackle | Link Load | SLC24

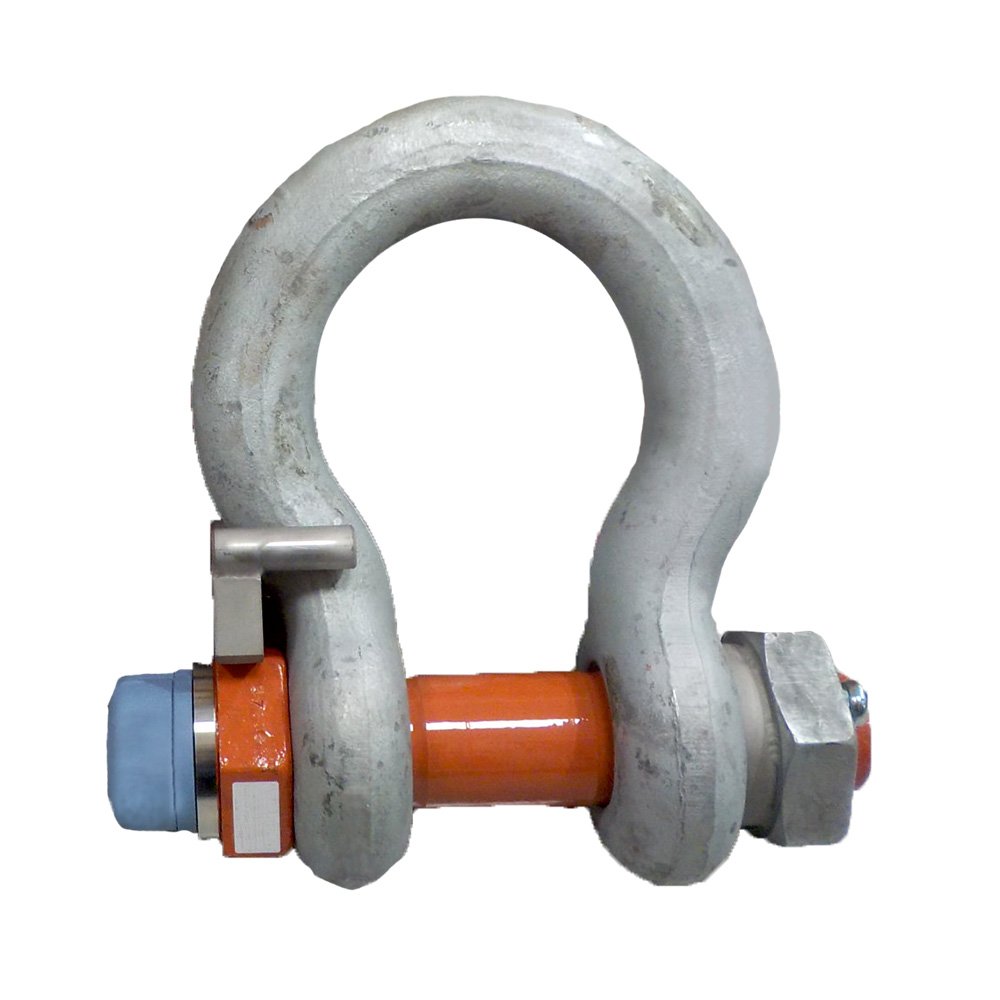

Wireless, Robust and Includes an 8 Digit LCD Handheld Display The SLC24 bow type wireless load shackle series are specially designed for cable-free lifting and weighing applications. They have up to 300 hours of battery life (continuous use with 1.2Ah batteries) and can transmit data up to 600 metres away (clear line of sight). To ensure optimum transmission range the externally sealed aerial can be rotated. The load cell shackles are manufactured using the Crosby™ G2130 (12 to 25 tonnes), G2140 (40 to 120 tonnes) shackles and GN Rope H10 shackle (150 to 1000 tonnes). The SLC24 bow type wireless load shackles are constructed from high tensile carbon steel and come with an IP67 protection rating for submersion up to 1 metre in water, making them ideal for both rugged and harsh environments. Power is supplied by 2 x AAA NiMh batteries which can be recharged using the supplied universal charger. Plus, thanks to the units no-tool opening housing, battery changing is quick and easy to do on-site, while the internal electronics remain completely sealed. For a complete load monitoring system, the SLC24 bow type wireless load cell shackle is supplied with a T24-HS simple handheld battery powered display. This 8 digit display is for use with a single telemetry acquisition module. For multiple acquisition modules we can offer a T24-HA advanced handheld telemetry display for 12 separate inputs. If you need more inputs we can offer a PC-based monitoring system capable of monitoring and recording live data from up to 100 load shackles simultaneously!
Technical Specifications
| UNITS | SLC24 | |
|---|---|---|
| Rated Load | tonnes | 0-12, 0-17, 0-25, 0-40, 0-55, 0-85, 0-120, 0-150, 0-200, 0-300, 0-400, 0-500, 0-600, 0-700, 0-800, 0-900, 0-1000 |
| Operating Modes | Tension Only | |
| Non-Linearity | ±%/Rated Load (typically) | <1 |
| Non-Repeatability | ±%/Rated Load | <0.1 |
| Transmission Distance | metres | up to 600 (clear line of sight) |
| Battery Life | hours | 300 (continuous use with 1.2Ah batteries) |
| Battery | 2 x AAA Alkaline (supplied with 1.2Ah batteries) Internal rechargeable NiMh | |
| Battery Charging | Batteries can be removed from case for recharging | |
| Operating Temperature Range | ˚C | -20 to +60 |
| Safe Overload | % of Rated Load | 150 |
| Ultimate Overload | % of Rated Load | 300 |
| Safety Factor: | 3:1 | |
| IP Rating (Environmental Protection) | IP67 | |
| Weight (excluding cable) | kg | see dimensional table |

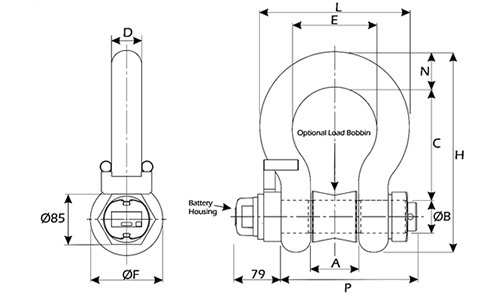

Product Dimensions (Ranges 12 to 120 tonnes)
|
Rating (tonnes)
|
A
|
ØB
|
C
|
D
|
E
|
ØF
|
H
|
L
|
N
|
P
|
Weight (kgs)
|
Resolution (tonnes)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0-12 | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 76 | 210 | 146 | 35.1 | 171 | 8 | 0.01 |
| 0-17 | 60.5 | 41.4 | 146 | 38.1 | 98.5 | 92 | 254 | 175 | 41.1 | 201 | 12 | 0.02 |
| 0-25 | 73 | 51 | 178 | 44.5 | 127 | 106 | 313 | 225 | 57 | 236 | 18 | 0.02 |
| 0-40 | 73.2 | 50.8 | 178 | 46.7 | 127 | 106 | 313 | 224 | 57.2 | 236 | 18 | 0.05 |
| 0-55 | 82.6 | 57.2 | 197 | 52.8 | 146 | 122 | 347 | 258 | 61 | 269 | 25 | 0.05 |
| 0-85 | 105 | 69.9 | 267 | 68.8 | 184 | 148 | 455 | 324 | 79.2 | 351 | 45 | 0.1 |
| 0-120 | 127 | 82.6 | 330 | 79.2 | 200 | 165 | 546 | 371 | 92.2 | 387 | 85 | 0.1 |
| 0-150 | 133 | 95.3 | 372 | 95.3 | 229 | 203 | 632 | 432 | 105 | 448 | 125 | 0.1 |
| 0-200 | 184 | 121 | 386 | 95.3 | 279 | 267 | 706 | 529 | 127 | 580 | 215 | 0.2 |
| 0-300 | 213 | 152 | 470 | 127 | 330 | 330 | 871 | 629 | 154 | 610 | 364 | 0.2 |
| 0-400 | 255 | 175 | 680 | 165 | 325 | 350 | 1078 | 655 | 165 | 700 | 560 | 0.5 |
All dimensions are in mm
Product Dimensions (Ranges 150 to 1000 tonnes)
| Rating (tonnes) | A | ØB | C | D | E | ØF | H | L | P | Weight (kgs) | Resolution (tonnes) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 170 | 108 | 400 | 102 | 275 | 230 | 671 | 479 | 475 | 160 | 0.1 |
| 200 | 180 | 125 | 500 | 120 | 290 | 260 | 813 | 530 | 520 | 235 | 0.2 |
| 250 | 205 | 140 | 540 | 125 | 305 | 260 | 865 | 555 | 560 | 285 | 0.2 |
| 300 | 205 | 150 | 600 | 130 | 305 | 305 | 958 | 565 | 570 | 340 | 0.5 |
| 400 | 230 | 175 | 680 | 165 | 325 | 350 | 1108 | 655 | 655 | 560 | 0.5 |
| 500 | 255 | 185 | 700 | 180 | 350 | 370 | 1158 | 710 | 720 | 685 | 0.5 |
| 600 | 285 | 205 | 700 | 195 | 375 | 405 | 1200 | 765 | 815 | 880 | 0.5 |
| 700 | 310 | 217 | 700 | 205 | 400 | 435 | 1231 | 810 | 860 | 980 | 1 |
| 800 | 310 | 217 | 700 | 210 | 400 | 435 | 1236 | 820 | 870 | 1100 | 1 |
| 900 | 330 | 230 | 700 | 220 | 420 | 465 | 1268 | 860 | 910 | 1280 | 1 |
| 1000 | 350 | 240 | 750 | 230 | 420 | 480 | 1290 | 880 | 950 | 1460 | 1 |
All dimensions are in mm
VJune2025
Ordering Codes & Options
| Core Product | Capacity (inc Engineering Units) | Cable Length (m) | Specials Code | Example Result |
|---|---|---|---|---|
| SLC24 | 12t | 000 | 000 | SLC24-12t-000-000 |
| SLC24 | 17t | 000 | 000 | SLC24-17t-000-000 |
| SLC24 | 25t | 000 | 000 | SLC24-25t-000-000 |
| SLC24 | 40t | 000 | 000 | SLC24-40t-000-000 |
| SLC24 | 55t | 000 | 000 | SLC24-55t-000-000 |
| SLC24 | 85t | 000 | 000 | SLC24-85t-000-000 |
| SLC24 | 120t | 000 | 000 | SLC24-120t-000-000 |
| SLC24 | 150t | 000 | 000 | SLC24-150t-000-000 |
| SLC24 | 200t | 000 | 000 | SLC24-200t-000-000 |
| SLC24 | 300t | 000 | 000 | SLC24-300t-000-000 |
| SLC24 | 400t | 000 | 000 | SLC24-400t-000-000 |
| SLC24 | 500t | 000 | 000 | SLC24-500t-000-000 |
| SLC24 | 600t | 000 | 000 | SLC24-600t-000-000 |
| SLC24 | 700t | 000 | 000 | SLC24-700t-000-000 |
| SLC24 | 800t | 000 | 000 | SLC24-800t-000-000 |
| SLC24 | 900t | 000 | 000 | SLC24-900t-000-000 |
| SLC24 | 1000t | 000 | 000 | SLC24-1000t-000-000 |
