Wireless to 800m and Ideal for Outdoor Compression Measurement Applied Measurements wireless column load cell CCDDT24 is designed for general use in both laboratory environments and outside, thanks to its IP67 waterproof rating and rugged stainless steel construction. Ideal applications include hydraulic press calibration, pile force measurement, structural proof testing, jack force measurement and centre of gravity measurement. We can also supply specific centre of gravity software.

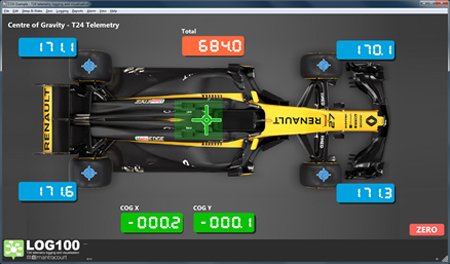

Screenshot of centre of gravity software racing car application.
Located within the semi-aromatic plastic wireless housing are the internal antenna and two standard AAA alkaline batteries. You can easily access the batteries by removing the telemetry housing cover while the internal electronics remain completely sealed. The wireless compression load cell CCDDT24 is supplied with a wireless handheld display T24-HS. The T24-HS is a 2 button, 1 channel, 8 digit LCD display. The wireless range is up to 800m clear line of sight. Alternatively, we can supply a T24-BSu USB wireless base station or our wireless USB dongle T24-BSd if a more compact base station is required. Capacities of 200te and over are supplied with welded carry handles as standard, included in the price. Optional welded carry handles are available for 50te and 100te only, if required. Customisation is available on the wireless column load cell, including ATEX intrinsically safe versions for hazardous environments and versions for use as calibration standards. Standard capacities for Applied Measurements wireless column load cell range from 50 tonnes up to 1000 tonnes, with higher capacity versions available on request. We can provide an optional loading cap and mounting base to ease installation and provide optimal performance from the load cell. Plus, carry handles are normally supplied on capacities over 200t to assist moving and installation.
Technical Specifications
Rated Load (tonne)
50, 100, 200, 300, 500, 750, 1000
Proof Load
150% of rated load
Ultimate Braking Load
>300% of rated load
Non-Linearity
<±0.25% of rated load (typically)
Non-Repeatability
<±0.05% of rated load
Transmission Distance
Up to 800 metres (clear line of sight)
Battery Life
>300 hours (continuous use, with 1.2Ah batteries)
Battery (standard)
AAA size Alkaline x2 (supplied with 1.2Ah batteries)
Operating Temperature Range
-20 to +55°C
Telemetry Housing
Polyamide Resin
Environmental Protection Level
IP67

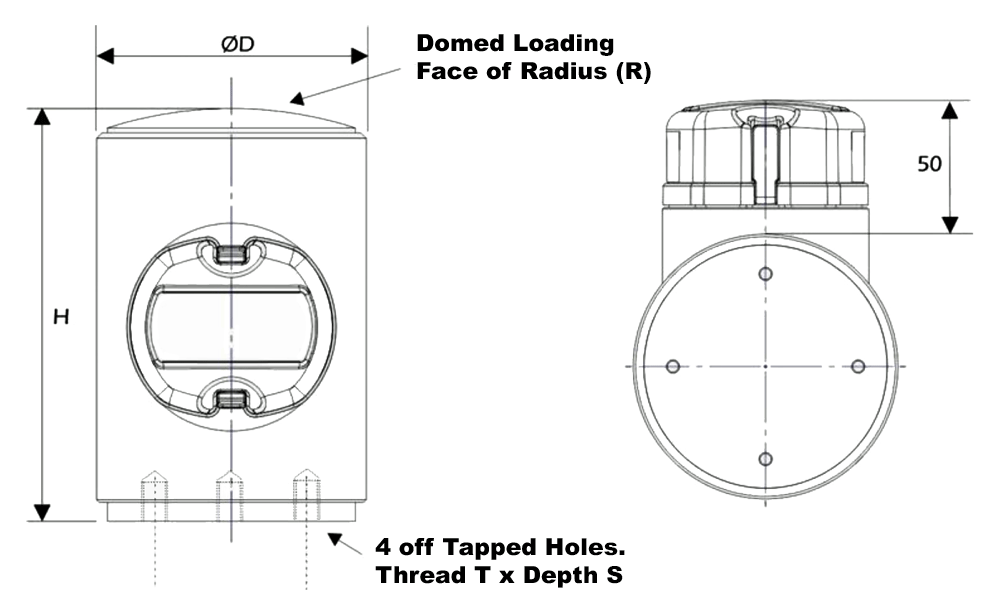

Product Dimensions (mm)
Rating (tonnes)
H
ØB
ØD
T
S
R
Weight (kgs)
Resolution (tonnes)
50
103
50
88
M4
10
158
6.5
0.05
100
153
70
100
M5
12
150
11
0.1
200
180
78
125
M6
12
100
19
0.2
300
185
n/a
140
n/a
n/a
180
21
0.5
500
250
n/a
165
n/a
n/a
250
42
0.5
750
350
n/a
198
n/a
n/a
350
85
1
1000
400
n/a
276
n/a
n/a
400
220
1
Please note: dimensions may change for hazardous area versions.
