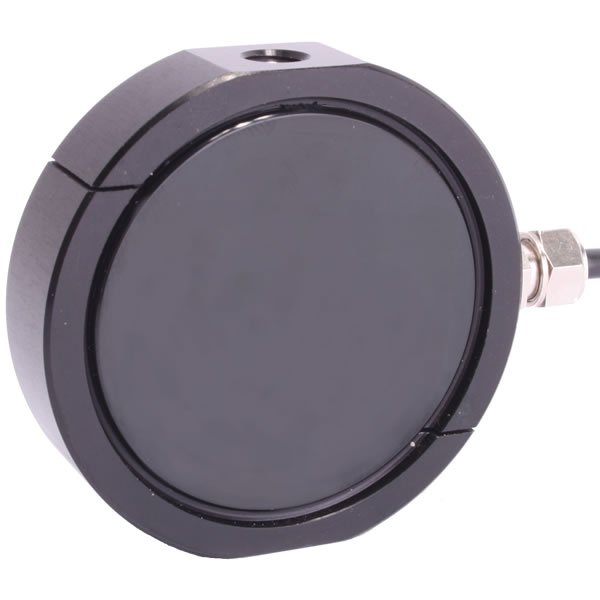

A Slim, Compact, and Precise, Miniature S-Beam Load Cell The DBCR compact S-beam load cell is suitable for use in both tension and compression and lends itself to a multitude of low-range monitoring, control, test and measurement applications including material testing machines and small suspended hoppers. The DBCR is a compact version of the classic S-beam load cell design manufactured from aluminium and available with measuring capacities from 0-10N up to 0-500N. It offers a very high accuracy of better than 0.05% of rated capacity. The DBCR compact S-beam load cell can be supplied calibrated with any of our range of strain gauge input instrumentation to provide a complete, ready to use measurement system. For other sizes and capacities please view our full range of S-Beam load cells.

Technical Specifications

Rated Capacity (RC) N 0-10, 0-20, 0-50, 0-100, 0-250, 0-500
Operating Modes Tension/Compression / Tension & Compression
Sensitivity (RO) mV/V 2.0 ±0.1%
Zero Balance/Offset ±%/Rated Output <1.0
Output Symmetry (tension vs. compression) ±%/Rated Output <0.20
Non-Linearity ±%/Rated Output (BFSL) <0.05
Hysteresis %/Rated Output <0.03
Repeatability ±%/Rated Output <0.03
Temperature Effect on Zero ±%/Rated Output/ ˚C <0.005
Temperature Effect on Sensitivity ±%/Applied Load/ ˚C <0.005
Input Resistance Ohms 375 nominal
Output Resistance Ohms 350 nominal
Insulation Resistance Megohms >5000 @ 50Vdc
Excitation Voltage Volts AC or DC 10 recommended (2-15 acceptable)
Operating Temperature Range ˚C -20 to +80
Compensated Temperature Range ˚C 0 to +70
Storage Temperature Range ˚C -20 to +80
Safe Overload % of Rated Capacity 150
Ultimate Overload % of Rated Capacity 200
Fundamental Resonant Frequency* Hz 5N=58, 10N=82; 20N=136; 50N=130; 100N=210; 250N=420; 500N=700
IP Rating (Environmental Protection) IP50
Weight (excluding cable) grams 85
Fatigue Life Consult Sales
Cable Length (as standard) 2 Metres
Cable Type 4-core screened, PVC sheath, Ø3.5
Construction Aluminium Alloy
Resolution: 1 part in 250,000 (with appropriate instrumentation)
*The resonant frequency is calculated with the body of the load cell attached to a large plate, ensuring that only the sensing element oscillates: This is vital to achieve the highest natural frequency and subsequent frequency response.

Product Dimensions

DBCR Outline

All dimensions are in mm.

Wiring Details

Wire Designation
Red +ve excitation
Blue -ve excitation
Green +ve signal (compression)
Yellow -ve signal
Screen To ground – not connected to load cell body

Ordering Codes & Options

Core Product Capacity (inc Engineering Units) Cable Length (m) Specials Code Example Result
DBCR 10N 002 000 DBCR-10N-002-000
DBCR 20N 002 000 DBCR-20N-002-000
DBCR 50N 002 000 DBCR-50N-002-000
DBCR 100N 002 000 DBCR-100N-002-000
DBCR 250N 002 000 DBCR-250N-002-000
DBCR 500N 002 000 DBCR-500N-002-000

Mounting And Installation Accessories

Load Buttons and Rod End Bearings

Designed to align forces through the principal axis of the load cell thus reducing the effects of extraneous forces, hence offering improved performance from the cell. Load buttons are used where compressive forces are applied. Rod End Bearings are used where tensile forces are being applied.

Load Buttons for Compressive Use

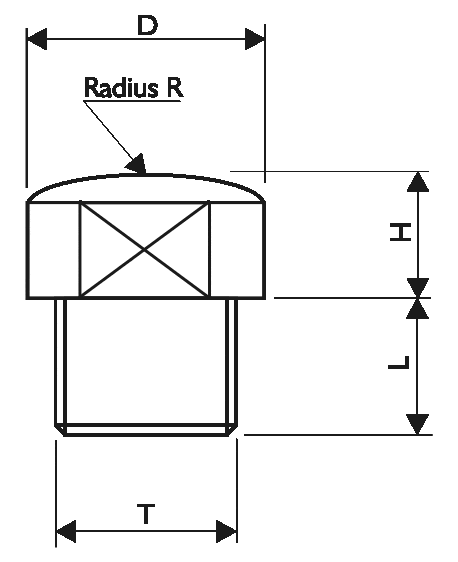

Load Button Diagram
THREAD T M6 x 1
D 12.5
H 6
L 9
R 200

Rod End Bearings for Tension Use

Maintenance-free rod ends are a complete units made up of a housing with both an integral shank (with an internal or external thread) and a maintenance-free spherical plain bearing, located within the housing. Key Features:

  • Supports radial loads in a tensile or compressive direction.
  • Suitable for unilateral loads – can support alternating loads and alternating loads in combination with bearing GE..UK-2RS, please consult sales.
  • Zinc plated for corrosion resistance.
  • Are maintenance-free.
  • Fitted with radial spherical plain bearings GE..UK
  • Hard chromium/PTFE composite sliding contact surfaces.
  • Enables compact adjacent construction thanks to its thin walled design of the eye housing.
GAR UK rod ends

GAR..UK (right hand thread)

  • To ISO 12 240-4, dimension series E, type M
  • Shank with external thread

Maintenance-free ISO 12 240-4, dimension series E, type M Sliding contact surface: hard chromium/PTFE Series GAR..UK Sliding material: PTFE composite

Rod End Bearings GAR UK 2RS
LOAD CELL SHAFT DIAMETER ORDERING CODE MASS DIMENSIONS
d WITHOUT SEALS WITH SEALS ≈ kg d D B dK d1 d2 d3
DBCR 6 GAR 6 UK 0.017 6-0.008 14 6-0.12 10 8 21 M6
LOAD CELL Degrees Chamfer Dimension Basic Load Ratings Radial Internal Clearance Shaft Diameter
h C1 α l1 l2 l7 r1s min. dyn. Cr N stat. C0r N d
DBCR 36 4.4 13 18 46.5 12 0.3 3 600 6 920 0 – 0.032 6
