AM41L button load cell can measure the tension force, It is made of stainless steel,
| Accuracy | 0.03～0.05%F·S |
|---|---|
| Capacity | 3，5，10，20，30，50，100,150，200，300 (kN) |
| Certificate | RoHS, CE |
| Creep | ±0.03 %F·S/30min |
| Material | Stainless steel |
| Sensitivity | 2.0 mV/V |

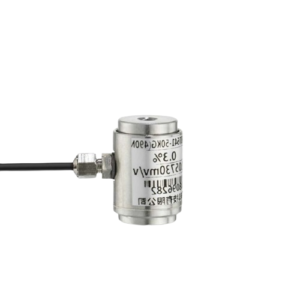

The AM43A model load cell, the weight range is 10-500N, 17-4PH Stainless steel material, Measuring tension and compression, The micro size, low altitude, the deformation is small two-way cylindrical shape.
| Accuracy | ±0.05%F.S |
|---|---|
| Model | AM43A |
| Capacity | 20~500N |
| Certificate | RoHS, CE |
| Creep | ±0.05%F.S/3min |
| Material | Stainless steel |
| Sensitivity | 2.0±10%mV/V |
| Size | dia15*22mm |

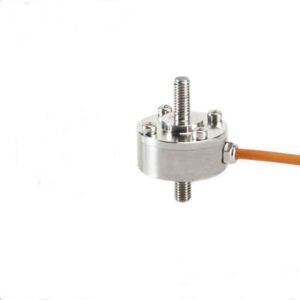

Stainless steel membrane composite tension sensor, simple structure, good interchangeability.
| Model | AM42A |
|---|---|
| Accuracy | ±0.3%F.S |
| Capacity | 0.1，0.2，0.3，0.5，1，2,5，10，20 (kN) |
| Creep | ±0.1 %F·S/30min |
| Material | Stainless steel |
| Sensitivity | 2.0mv/v |
| Certificate | RoHS, CE |
