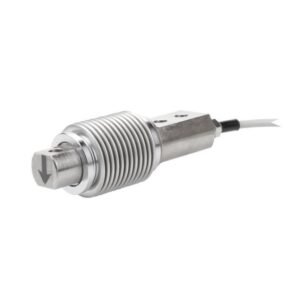

Bellow beam load cell, anti-fatigue, anti-eccentric load, can withstand two working modes of tension and compression.
| Model | AB51C |
|---|---|
| Capacity | 00.1，0.2，0.3，0.5，1，2,3，5，7，10 (kN) |
| Creep | ±0.02%F.S/30min |
| Sensitivity | 2.0mv/v |
| Material | Alloy steel |
| Certificate | RoHS, CE |
Max.platform size :600*600mm
| Accuracy | ±0.02%F.S |
|---|---|
| Certificate | RoHS, CE |
| Capacity | 60,100,150,200,300, 500kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |

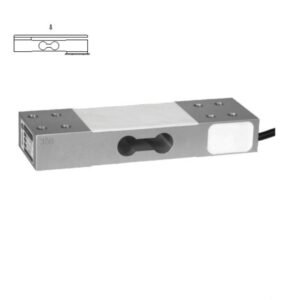

| Model | AP65H |
| Size | 186*60*30mm |
Column-type internal thread tension load cell adopts S-shaped structure, 42CrMo alloy steel material, strong mechanical fatigue resistance, measuring tension and compression.
| Model | AT52B |
|---|---|
| Accuracy | ±0.02%F.S |
| Capacity | 1，2，3，5，7，10，20，30,50，70，100，150，200 (kN) |
| Creep | ±0.02%F.S/30min |
| Material | Alloy steel |
| Sensitivity | 2.0mv/v |
| Certificate | RoHS, CE |

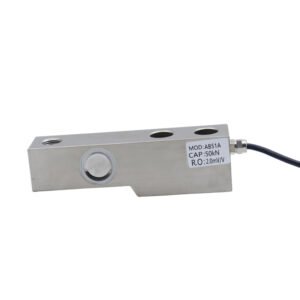

AB51A Shear beams are one of the most widely used load cell sensors, the range is wide, from 50kg to 20Ton, high accuracy ±0.02%~0.05%, the cable is 3-6m.
| Model | AB51A |
|---|---|
| Accuracy | ±0.02%F.S |
| Capacity | 0.1，0.2，0.3，0.5，1，2,5，10，20 (kN) |
| Certificate | RoHS, CE |
| Creep | ±0.02%F.S/30min |
| Material | Alloy steel, Stainless steel |
| Sensitivity | 2.0 mV/V |

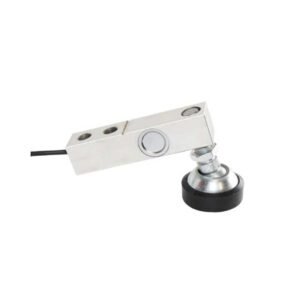

AB51B Shear beams are one of the most widely used load cell sensors, the range is wide, from 100kg to 5Ton, high accuracy ±0.02%
| Accuracy | ±0.02%F.S |
|---|---|
| Capacity | 500kg, 1T, 2T, 3Ton |
| Creep | ±0.02%F.S/30min |
| Material | Alloy steel |
| Sensitivity | 2.0±0.004mV/V |
| Size | 130*31.8*31.8mm |
