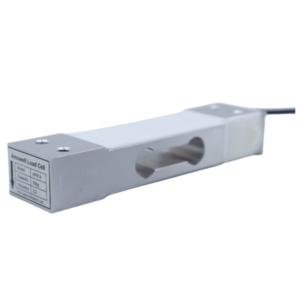

AP61A parallel beam load cell also called single point load cell, has 3kg,6kg,10kg,20kg,50kg, 100kg weight range, suitable for 250×350mm platform scale.
| Model | AP61A |
|---|---|
| Capacity | 3kg,6kg,10kg,20kg,50kg,100kg |
| Max.platform size | 250×350mm |
| Accuracy | 0.02%F.S |
| Creep | 0.02%/30min |
| Input resistance | 405±10Ω |
| Output resistance | 350±3Ω |
| Material | High quality Aluminum alloy |
AP61A parallel beam load cell also called single point load cell, is suitable for 250*350mm platform scale.

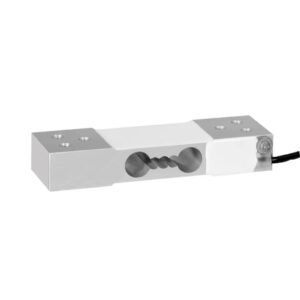

| Model | AP61BN |
|---|---|
| Capacity | 20kg, 60kg, 100kg 150kg,200kg,300kg |
| Size | 130*38*22mm |
| Accuracy | ±0.02%F.S |
| Certificate | RoHS, CE |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±10%mV/V |

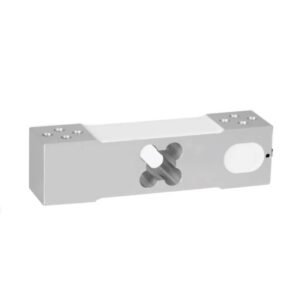

AP61A parallel beam load cell also called single point load cell, is suitable for 250*350mm platform scale.
| Model | AP62A |
|---|---|
| Capacity | 25kg,40kg,60kg,100kg,200kg,350kg |
| Size | 150*40*35mm |
| Accuracy | ±0.02%F.S |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
AP62B parallel beam load cell also called single point load cell, is suitable for 400*400mm platform scale.
| Model | AP62B |
|---|---|
| Capacity | 60kg,100kg,200kg,300kg,500kg,600kg,800kg,1000kg |
| Size | 174*60*64mm |
| Accuracy | ±0.02%F.S |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |

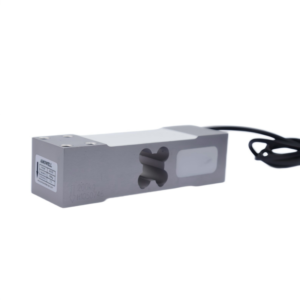

AP62C Single point load cell 60~500kg , is suitable for 400*400mm platform scale.
| Model | AP62C |
|---|---|
| Accuracy | ±0.02%F.S |
| Capacity | 60kg 100kg 200kg 350kg 500kg |
| Input resistance | 405±10Ω |
| Output resistance | 350±3Ω |
| Material | Aluminum alloy |

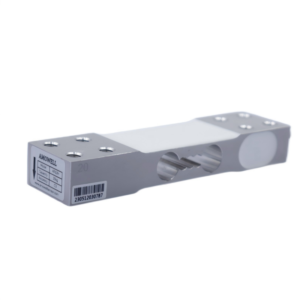

AP62H parallel beam load cell also called single point load cell, has 60kg, 100kg, 200kg 300kg weight range, suitable for 400*400mm platform scale.
| Model | AP62H |
|---|---|
| Capacity | 60~300kg |
| Max.platform size | 400×400mm |
| Accuracy | 0.02%F.S |
| Creep | 0.03%/30min |
| Input resistance | 405±10Ω |
| Output resistance | 350±3Ω |
| Material | High quality Aluminum alloy |
AP61A parallel beam load cell also called single point load cell, is suitable for 250*350mm platform scale.

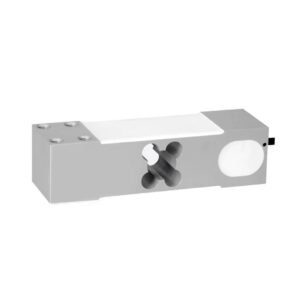

| Model | AP62N |
|---|---|
| Capacity | 60,100,200,350,500kg |
| Size | 150*40*35mm |
| Accuracy | ±0.02%F.S |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
AP61A parallel beam load cell also called single point load cell, is suitable for 250*350mm platform scale.

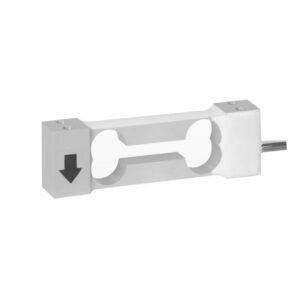

| Model | AP63A |
|---|---|
| Capacity | 0.3,0.5,1.5,3,6kg |
| Size | 70*12*22mm |
| Accuracy | ±0.02%F.S |
| Creep | ±0.03%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 1.0±10%mV/V |

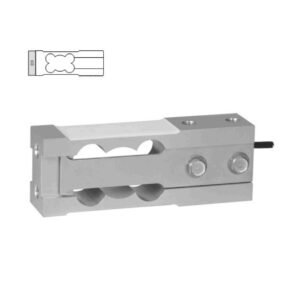

Max.platform size :250*350mm
| Accuracy | ±0.02%F.S |
|---|---|
| Capacity | 20,30,40,50,100kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±10%mV/V |
| Model | AP65C |
| Size | 125*45*29mm |

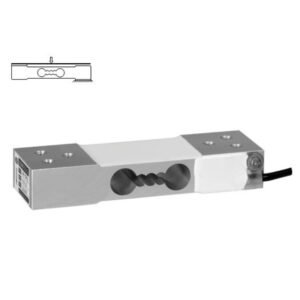

Max. platform size :250*350mm
| Capacity | 20,30,40,50,100kg |
|---|---|
| Creep | ±0.02%F.S/30min |
| Certificate | RoHS, CE |
| Material | Aluminum alloy |
| Sensitivity | 2.0±10%mV/V |
| Model | AP65D |
| Size | 130*22*15mm |
Max.platform size :600*600mm
| Accuracy | ±0.02%F.S |
|---|---|
| Certificate | RoHS, CE |
| Capacity | 60,100,150,200,300, 500kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
| Model | AP65H |
| Size | 186*60*30mm |
Max.platform size :600*600mm
| Accuracy | ±0.02%F.S |
|---|---|
| Certificate | RoHS, CE |
| Capacity | 60,100,150,200,300, 500kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
| Model | AP65H |
| Size | 186*60*30mm |
Max.platform size :400*400mm
| Accuracy | ±0.02%F.S |
|---|---|
| Certificate | RoHS, CE |
| Capacity | 15,20,30,50,100,200kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |

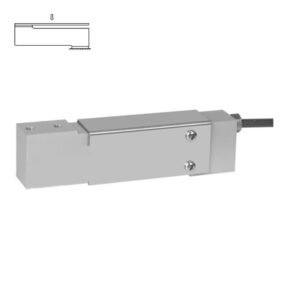

| Model | AP65J |
| Sensitivity | 2.0±5%mV/V |
| Size | 150*37.5*25.4mm |

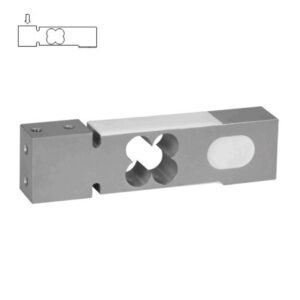

Max.platform size :400*400mm
| Accuracy | ±0.02%F.S |
|---|---|
| Capacity | 5,10,20,30,50,100,200kg |
| Certificate | RoHS, CE |
| Creep | ±0.02%F.S/30min |
| Model | AP65K |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
| Size | 150*39*25.4mm |

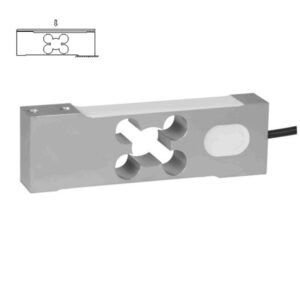

Max.platform size :400*400mm
| Capacity | 30,50,100,200kg |
|---|---|
| Accuracy | ±0.02%F.S |
| Certificate | RoHS, CE |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Model | AP65L |
| Sensitivity | 2.0±5%mV/V |
| Size | 151*46*24mm |

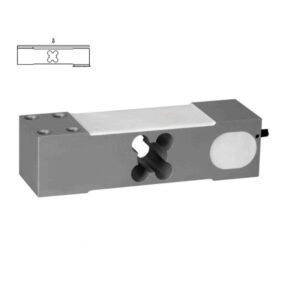

Max. platform size :400*500mm
| Accuracy | ±0.02%F.S |
|---|---|
| Certificate | RoHS, CE |
| Capacity | 60,100,200,350,500kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Model | AP65M |
| Sensitivity | 2.0±5%mV/V |
| Size | 150*40*30mm |
