Suitable for food and pharmaceutical industry and other industrial weighing system
0.22t, 0.55t, 1.1t, 1.76t, 2.2t, 4.4t Or Customized Tension Compression Force Sensor FA509 is a model of Tension Compression Force Sensor, it belongs to our brand FIBOS FA5-Series, it can be used to measure load 0.22t, 0.55t, 1.1t, 1.76t, 2.2t and 4.4t or customized capacity, its Creep(30min) ≤0.0166%F.S. , Non-linearity, Hysteresis and Repeatability all ≤0.17%F.S. or can be customized.
Suitable for packaging scales, hopper scales, various industrial weighing systems, etc.
Suitable for packaging scales, hopper scales, various industrial weighing systems, etc.
Suitable for packaging scales, hopper scales, various industrial weighing systems, etc.
Suitable for electronic scale, counting scale, electronic balance and industrial weighing system
A cantilever beam load cell consists of an elastic body, strain gauges, and measurement circuitry. Cantilever beam sensors typically employ a single-end fixed configuration, where one end is rigidly fixed while the other end is freely suspended. Unlike parallel beam sensors, the strain gauges for cantilever beam sensors need to be affixed closer to the fixed end, whereas those for parallel beam sensors are attached to the top and bottom surfaces of the two beams. The working principle of load cells can be referenced from the introduction of CP series load cells.
Our company’s CBD series digital cantilever load cell is a digital sensor that comes with a high-precision analog-to-digital conversion module, allowing it to output digital signals rather than analog ones. Compared to analog sensors, digital sensors have the following advantages:
1. Digital signals have stronger interference resistance;
2. They support various compensation functions, such as temperature compensation and load offset compensation;
3. Communication speed is significantly improved compared to analog signals.
The CBD series digital load cells offer a wide measurement range from 220 kg to 4400 kg, with an accuracy class up to C6 level. Additionally, they feature IP68/IP69K protection ratings, providing better protective performance in industrial production environments.
- NS-TH4 series load cell adopts cantilever shear structure;
- It has the characteristics of high precision, easy installation and convenient use;
- It can be used for various electronic truck scales, monorail crane scales and hopper scales.
- NS-TH5 series load cells are made of high-quality aluminum alloy;
- Has good corrosion resistance and long-term stability;
- It is compact, beautiful and easy to install;
- Widely used in small electronic platform scales, portable scales and other related electronics
- The primary instrument of the weighing apparatus.
The PSD-F1 Load Cell is a heavy-duty weighing component engineered exclusively for industrial bulk weighing equipment—ideal for integration into truck scales (floor scales) and hopper scales. Its robust cantilever-beam design, high-strength alloy steel build, and smart functional features ensure reliable, accurate weight measurement for heavy loads and bulk materials, making it a top choice for logistics, construction, chemical, and agricultural sectors.
The PSD-F6 Load Cell is a high-performance weighing component engineered for industrial bulk weighing—specialized for integration into belt scales (including skirted or standard belt conveyors) and hopper scales. Its unique bellows-type cantilever-beam structure, heavy-duty alloy steel build, and smart functional design ensure reliable, accurate weight measurement for dynamic or static bulk materials, making it ideal for mining, chemical processing, logistics, and agricultural sectors.
The PSD-X1 Load Cell is a tailored weighing solution designed for compact, precision-focused applications—ideal for integration into smart shelves, electronic price computing scales, and small-platform electronic scales. Its specialized cantilever-beam structure and lightweight yet durable build make it a reliable choice for retail, logistics, and small-scale industrial scenarios where space efficiency and accurate weight measurement are key.
The PSD-X3 Load Cell is a specialized weighing component engineered for compact, accuracy-critical applications—perfect for integration into smart shelves, electronic price computing scales, and small-platform electronic scales. Its optimized cantilever-beam design and lightweight, durable build make it a reliable choice for retail, logistics, and small-scale industrial use, where space efficiency and consistent weight measurement directly enhance operational performance.
The PSD-X3U Load Cell is a purpose-engineered weighing component exclusively designed for skirted belt scales—critical equipment in industrial material handling (e.g., mining, bulk processing, and logistics). Its optimized cantilever-beam structure, durable aluminum alloy build, and tailored performance ensure reliable, accurate weight measurement for materials conveyed via skirted belts (designed to prevent side spillage of bulk goods like granules or powders).

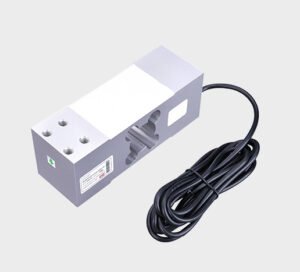

The PSD-X5 Load Cell is a specialized weighing component engineered for compact, accuracy-critical applications—perfect for integration into smart shelves, electronic price computing scales, and small-platform electronic scales. Its optimized cantilever-beam design and lightweight, durable build make it a reliable choice for retail, logistics, and small-scale industrial use, where space efficiency and consistent weight measurement directly enhance operational performance.
