- Nonlinear: 0.05%F.S.
- Measuring range: 80~5000mm
- Repeatability: <0.01%F.S.
- Resolution: <0.01%F.S.
- Protection class: IP65
- Zero output: 20%F.S.
- Frequency response time: 0.2～5ms
- Product name: Magnetostrictive displacement sensor BLS-L01 series
- customizable
- Measuring range: 0-5m
- Weight: 800g (cable pulling mechanism)
- Weight (pulling rope): 1.2g/m
- Length of each turn of the rope: 385mm
- Shell material: plastic, aluminum alloy
- Spring resilience: 3.3-4.4N
- Cable diameter: 0.6mm
- Rope material: high elastic 316 stainless steel rope
- Linearity: ≤±2mm
- Protection class: IP50
- Acceleration: 10 m/s²
- Roller circumference: 385mm
- Name: Economical encoder cable box BSL-GA130 series
- Can be customized on request
- Measuring range: 0-1.2m
- Weight (drawing rope): 0.58g/m
- Length of each turn of the rope: 250mm
- Spring resilience: 3.3-4.4N
- Pull rope diameter: 0.6mm
- Protection class: IP50
- Pull rope acceleration: 5m/s²
- Length of each turn of the rope: 150mm
- Actual length of the rope: 1.2m
- Name: Economical encoder cable box BSL-GA55A series
- Can be customized on request
- Measuring range: 0-1.2m
- Weight: 80kg (rope traction mechanism)
- Weight (drawing rope): 0.58g/m
- Length of each turn of the rope: 150mm
- Actual length of the rope: 1.2m
- Spring resilience: 1-1.4N
- Pull rope diameter: 0.5mm
- Protection class: IP50
- Rope speed: 5m/s²
- Name: Economical encoder cable box BSL-GA55B series
- Can be customized on request
- Measuring range: 0-3m
- Weight: 250g (cable pulling mechanism)
- Weight (pulling rope): 1.2g/m
- Length of each turn of the rope: 250mm
- Shell material: plastic, aluminum alloy
- Spring resilience: 3.3-4.4N1)
- Cable diameter: 0.6mm
- Name: Economical encoder cable box BSL-GA88 series
- Can be customized on request
- Measuring range: 0-5m
- Weight: 2.8kg (rope traction mechanism)
- Weight (draw rope): 7.1g/m
- Length of each turn of the rope: 333mm
- Actual length of the rope: 5.2m
- Spring resilience: 5-20N
- Pull rope diameter: 1.2mm
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA130-05 Series
- Can be customized on request
- Measuring range: 0-10m
- Weight: 5.8kg (rope traction mechanism)
- Weight (draw rope): 7.1g/m
- Length of each turn of the rope: 333mm
- Actual length of the rope: 10.2m
- Housing Material: Aluminum (anodized) plastic
- Spring resilience: 10-20N
- Pull rope diameter: 1.2mm
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA130-10 Series
- Can be customized on request
- Measuring range: 0-20m
- Weight: 7.8kg (rope traction mechanism)
- Weight (draw rope): 2.6g/m
- Length of each turn of the rope: 333mm
- Actual length of the rope: 20.2m
- Housing Material: Aluminum (anodized) plastic
- Spring resilience: 10-20N
- Pull rope diameter: 0.8mm
- Protection class: IP64
- Rope speed: 30m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA130-20 Series
- Can be customized on request
- Measuring range: 0-30m
- Weight: 9.8kg (cable traction mechanism)
- Weight (pulling rope): 2.6g/m
- Length of each turn of the rope: 333mm
- Housing Material: Aluminum (anodized) plastic
- Spring resilience: 10-20N
- Cable diameter: 0.8mm
- Industrial Precision Encoder Cable Box BSL-MA130-30 Series
- Can be customized on request
- Measuring range: 0-2m
- Weight: 1.3kg (rope traction mechanism)
- Weight (pulling rope): 7.1g/m
- Length of each turn of the rope: 200mm
- Actual length of the rope: 2.2m
- Housing Material: Aluminum (Anodized), Die-cast Zinc
- Spring resilience: 6-14N
- Pull rope diameter: 1.2mm
- Protection class: IP64
- Rope speed: 40m/s²
- Product Name: Industrial Precision Encoder Cable Box BSL-MA80 Series
- Can be customized on request
- Measuring range: up to 8000mm
- Output signal: AB phase, ABZ phase
- Resolution: 0.01, 0.02, 0.04, 0.08mm / pulse
- Working voltage: 10-30V DC, 5V DC
- Accuracy: +/-0.05% (full scale), +/-1 pulse
- Measuring wheel circumference: 400mm
- Pulling speed: maximum 1m/s
- Pull rope tension: 5-10N
- Weight: <5KG
- Product Name: Cable Displacement Sensor CESI-L8000 Series
- Can be customized on request
- Measuring range: up to 3000mm
- Measuring wheel circumference: 200mm
- Pulling speed: maximum 0.6m/s
- Pull rope tension: 5N
- Weight: <2KG
- Accuracy: +/-0.05%FS
- Power supply voltage: 10-30V DC, 5V DC
- Resolution 0.01, 0.02, 0.04, 0.08 mm / pulse
- Product Name: Cable Displacement Sensor CESI-M3000 Series
- Can be customized on request
- Measuring range: up to 5000mm
- Measuring wheel circumference: 300mm
- Pulling speed: maximum 1m/s
- Pull rope tension: 5-10N
- Weight: <2KG
- Resolution: 0.01, 0.02, 0.04, 0.08mm / pulse
- Power supply voltage: 10-30V DC, 5V DC
- Accuracy: +/-0.05% (full scale), +/-1 pulse
- Product Name: Cable Displacement Sensor CESI-M5000 Series
- Can be customized on request
- Measuring range: up to 1000mm
- Measuring wheel circumference: 100mm
- Pulling speed: maximum 0.6m/s
- Resolution: 0.01, 0.02, 0.04, 0.08 mm / pulse
- Accuracy: +/-0.05%FS
- Power supply voltage: 10-30V DC, 5V DC
- Pull rope tension: 3N
- Weight: <0.5KG
- Product Name: Cable Displacement Sensor CESI-S1000 Series
- Can be customized on request
- Measuring range: up to 2000mm
- Measuring wheel circumference: 150mm
- Pulling speed: maximum 0.6m/s
- Resolution: 0.01, 0.02, 0.04, 0.08 mm / pulse
- Accuracy: +/-0.05%FS
- Power supply voltage: 10-30V DC, 5V DC
- Pull rope tension: 5N
- Weight: <0.7KG

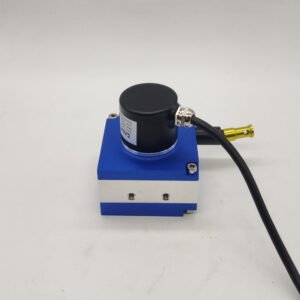

- Product Name: Cable Displacement Sensor CESI-S2000 Series
- Can be customized on request
- Measuring range: up to 500mm
- Measuring wheel circumference: 100mm
- Pulling speed: maximum 0.6m/s
- Resolution: 0.01, 0.02, 0.04, 0.08 mm / pulse
- Accuracy: +/-0.05%FS
- Power supply voltage: 10-30V DC, 5V DC
- Pull rope tension: 3N
- Weight: <0.5KG
- Product Name: Cable Displacement Sensor CESI-S500 Series
- Can be customized on request
