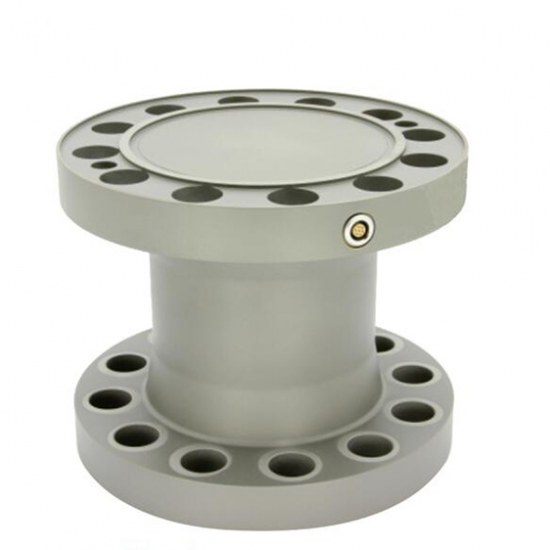

ZMNZT Dual flanges compression load cell 500t
The ZMNZT is double flanges type compression load cell, capacity from 300KN up to 5000KN. The strain gauge is attched inside of the body, which gives the load cell good protection and high stability. The load cell is widely used in testing machines and prestress force industrial.
Dimensions in mm
| PARAMETER | VALUE | UNIT |
| Standard capacities (Emax) | 300-5000 | KN |
| Rated output-R.O. | 2.0 | mV/V |
| Zero balance | 1 | ±% of rated output |
| Non linearity | 0.2 | ±% of rated output |
| Hysteresis | 0.1 | ±% of rated output |
| Non-repeatability | 0.1 | ±% of rated output |
| Creep error (30 minutes) | 0.03 | ±% of rated output |
| Zero return (30 minutes) | 0.03 | ±% of rated output |
| Temperature effect on min. dead load output | 0.0026 | ±% of rated output/℃ |
| Temperature effect on sensitivity | 0.0015 | ±% of rated output/℃ |
| Compensated temperature range | -10 to +40 | ℃ |
| Operating temperature range | -20 to +60 | ℃ |
| Safe overload | 150 | % of R.C |
| Ultimate overload | 200 | % of R.C |
| Excitation, recommended | 10 | Vdc |
| Excitation, maximum | 15 | Vdc |
| Input resistance | 720±20 | Ohms |
| Output resistance | 700±3 | Ohms |
| Insulation resistance | 5000 | Mega-Ohms |
| Material | Alloy steel | |
| Protection class | IP67 |
