Short Description:

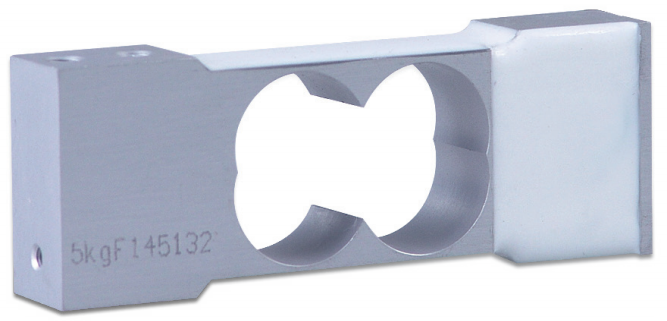

◎Aluminium-Alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for single or double load cell structured platform scales；
◎Recommended platform size: 200 x 200 mm；
Dimensions in mm：
Available models：
Specification：
Wiring：
◎Shielded, 4 conductor cable；
◎Cable Diameter: Φ3mm；
◎Standard cable length: 0.45m；
◎Shield not connected to element；
◎Cable jacket is PVC；
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-H-B load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-H-B load cells can be used to measure loads range from 20kg to 200kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAB-H-B load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-I3 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-I3 load cells can be used to measure loads range from 20kg to 100kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAB-I3 load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.
Stainless steel Weight Sensor FA509 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category, Single Point Weight Sensor FA509 can be used to measure weight ranges from 0.22t up to 4.4t, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.17%F.S..
The SC602 is a single-type load cell designed for small applications requiring high capacity. It shares the same structure as the SC601 but is shorter to minimize installation space. Despite its smaller size, it maintains a wide measuring range of up to 100 kg.
This SC602 is a single type load cell designed for compact applications that need high capacity. It follows the same structure of the SC601 but is shorter to minimize its foot print. Despite its smaller size is still maintains the wide measurement range for this load cell type with a maximum of 100kg.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAK-E load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAK-E load cells can be used to measure loads range from 0.3kg to 3kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAK-E load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.
300,600,1000,3000,6000kg;10,30,60,100,300t Or Customized Single Point Weight Sensor FA518 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA518 can be used to measure weight 300kg,600kg,1000kg,3000kg,6000kg and 10t,30t,60t,100t,300t or customized capacity, its material we use Alloy steel or other customized material.
300kg IP68 Alloy Steel Single Point Weight Sensor FA910 is a model of our brand FIBOS FA9-Series, Single Point Weight Sensor FA910 can be used to measure weight 300kg capacity, its Rated output range is 2.0±0.2%mV/V, its Zero Balance range ≤1%F.S., its Creep(30min),Non-linearity and Hysteresis all ≤0.3%F.S. and its Repeatability ≤0.1%F.S..
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-B-B load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-B-B load cells can be used to measure loads range from 3kg to 50kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAB-B-B load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.
1. Stainless steel A304, laser welded and sealed
2. Protection grade: IP68, IP69K, applicable to harsh environment
3. Explosion-proof grade: Ex ia IIC T4 Ga; Ex iaD 20 T1354. Suitable for stainless steel waterproof scales and process weighing in chemical, food, and pharmaceutical industries
FA5-Series, Single Point Load Cell FA568 can be used to measure weight 50kg,100kg,200kg,300kg,500kh,1000kg, or customized capacity, its material we use Stainless steel, and we can also customize material.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAQ-C load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAQ-C load cells can be used to measure loads range from 200kg to 2000kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAQ-C load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales, bench scale, platform scales and packing machinerys.
