Short Description:
◎Aluminium-Alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for single or double load cell structured platform scales；
◎Recommended platform size: 250 x 350 mm；
Available models：
Specification：

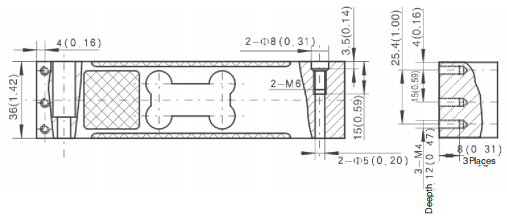

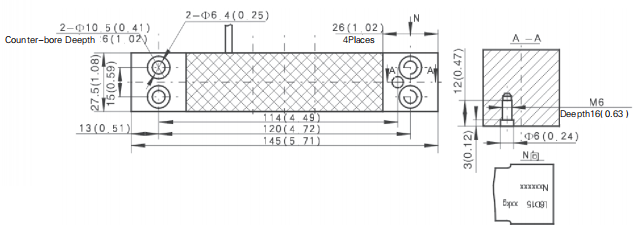

Dimensions in mm：
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ3.8mm；
◎Standard cable length: 0.4m；
◎Shield not connected to element；
◎Cable jacket in PVC；
The SC602 is a single-type load cell designed for small applications requiring high capacity. It shares the same structure as the SC601 but is shorter to minimize installation space. Despite its smaller size, it maintains a wide measuring range of up to 100 kg.
This SC602 is a single type load cell designed for compact applications that need high capacity. It follows the same structure of the SC601 but is shorter to minimize its foot print. Despite its smaller size is still maintains the wide measurement range for this load cell type with a maximum of 100kg.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAC-A2 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAC-A2 load cells can be used to measure loads range from 1.5kg to 6kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAC-A2 load cells are mainly used for electronic balance,counting scales,weighing scales,retail scales,jewellery scales,kitchen scales,coffee machine and packing machine.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAC-A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAC-A1 load cells can be used to measure loads range from 1.5kg to 6kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAC-A load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.
50,100,200,500,1000,2000,3000kg Or Customized Single Point Weight Sensor FA524A belongs to FA524 which is from Single Point Weight Sensor category of our brand FIBOS FA5-Series. FA524A can be used to measure weight 50kg,100kg,200kg,500kg,1000kg,2000kg and 3000kg or customized capacity, its Cable size is ⌀3x4000mm or can be customized length.
LCT Planar beamload cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. They are designed for those who need to produce equipment with minimal overall height. They are usually implemented in sets of three or four per scale.
Advantages of LCT Planar beam load cells:
Most planar beams are not corner-adjusted. Using 3 or 4 Planar beam load cells is an alternative to a single point load cell configuration with the additional benefit of a practical unlimited platform size.
Model LAA-W7 load cells are designed to this “Planar beam”type and manufactured from high quality aluminum alloy of aviation standard. LAA-W7 load cells can be used to measure loads range from 75kg to 300kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-W7 load cells are mainly used for retail scales, medical scales,personal scales,bathroom scales,airport baggage scales,postal scales and any weighing environment where space is a limiting factor.
5,10,20,50,80,100kg Or Customized Single Point Weight Sensor FA537 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA537 can be used to measure weight ranges from 5kg,10kg,20kg,50kg,80kg up to 100kg or could be customized capacity, its Creep(30min) and Repeatability both ≤0.18%F.S. or could be customized, and its Non-linearity and Hysteresis both ≤0.2%F.S. or customized.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAC-A9 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAC-A9 load cells can be used to measure loads range from 1kg to 2kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAC-A9 load cells are mainly used for electronic balance,counting scales,weighing scales,retail scales,jewellery scales,kitchen scales,coffee machine and packing machine.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAP-B1-A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAP-B1-A load cells can be used to measure loads range from 3kg to 40kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAP-B1-A load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and packing machinerys.
300,600,1000,3000,6000kg;10,30,60,100,300t Or Customized Single Point Weight Sensor FA518 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA518 can be used to measure weight 300kg,600kg,1000kg,3000kg,6000kg and 10t,30t,60t,100t,300t or customized capacity, its material we use Alloy steel or other customized material.
20,50,100,200,300,400,500kg Or Customized Single Point Weight Sensor FA524 is a customizable model of our brand FIBOS FA5-Series, Single Point Weight Sensor can be used to measure 20kg,50kg,100kg,200kg,300kg,400kg and 500kg or customized capacity, its Zero balance range is ±1.5%F.S. or customized, its Creep(30min) and Non-linearity both ≤0.19%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.2%F.S. or also can be customized.
SC601은 상업용으로 설계된 단일형 로드셀입니다. 구조가 간단하여 고정단과 유동단 사이의 측정이 용이합니다. 또한, SC601은 다양한 용도에 적합한 넓은 측정 범위를 제공하여 매우 다재다능하며, 최대 120kg까지 측정 가능합니다.
This SC601 is a single type load cell designed for commercial applications. Its simple structure allows easy measurement between its fixed end and floating end. The SC601 is also very versatile with a wide measurement range for many different applications and has a maximum on 120kg.
