Short Description:

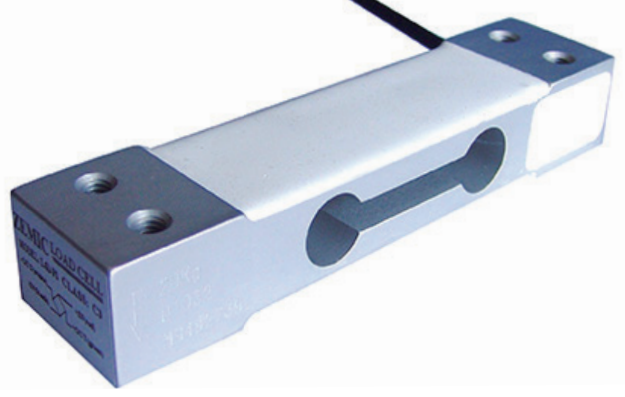

◎Aluminum-alloy IP65 single point load cell；
◎Colourless anodized. High waterproof ability；
◎Suitable for pricing scales, bench scales, etc；
◎Maximum platform size:250*350mm；

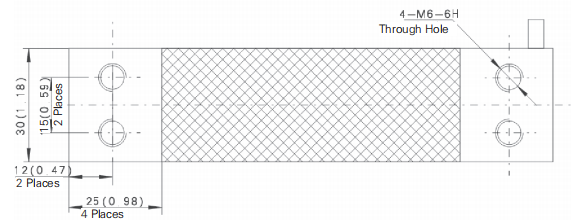

Dimensions in mm：
Available models：
Specification：
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ3.8mm；
◎Standard cable length: 0.45m；
◎Shield not connected to element；
◎Cable jacket in PVC；
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAK-E load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAK-E load cells can be used to measure loads range from 0.3kg to 3kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAK-E load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.
100,200,500kg Or Customized Single Point Weight Sensor FA559 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category. FA559 can be used to measure 100kg,200kg and 500kg or customized capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.2%F.S. or can be customized, its Hysteresis ≤0.3%F.S. or also can be customized.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAP-B1-A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAP-B1-A load cells can be used to measure loads range from 3kg to 40kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAP-B1-A load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and packing machinerys.
LCT Planar beamload cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. They are designed for those who need to produce equipment with minimal overall height. They are usually implemented in sets of three or four per scale.
Advantages of LCT Planar beam load cells:
Most planar beams are not corner-adjusted. Using 3 or 4 Planar beam load cells is an alternative to a single point load cell configuration with the additional benefit of a practical unlimited platform size.
Model LAA-W7 load cells are designed to this “Planar beam”type and manufactured from high quality aluminum alloy of aviation standard. LAA-W7 load cells can be used to measure loads range from 75kg to 300kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-W7 load cells are mainly used for retail scales, medical scales,personal scales,bathroom scales,airport baggage scales,postal scales and any weighing environment where space is a limiting factor.
Stainless steel Weight Sensor FA509 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category, Single Point Weight Sensor FA509 can be used to measure weight ranges from 0.22t up to 4.4t, its Creep(30min) ≤0.0166%F.S., its Non-linearity,Hysteresis and Repeatability all ≤0.17%F.S..
Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture products. Its uses have been expanded to the field(s) of Aluminum Alloy 80kg load cell 50 Grams Platform Scale Single Point load cell 300kg 500kg weight sensor A632. Apart from the benefits for general consumers, Aluminum Alloy 80kg load cell 50 Grams Platform Scale Single Point load cell 300kg 500kg weight sensor A632 can offer amazing advantages to businesses in terms of sales and customer satisfaction. Ningbo Santwell Import & Export Co., Ltd with high quality and good reputation, it has won a good reputation in the industry.
| Model Number: | A632 | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 50kg~1000kg | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
이 SC601AC는 고용량 어플리케이션용으로 설계된 단일형 로드셀입니다. SC601과 동일한 구조를 따르지만, 최대 200kg의 더 높은 용량을 달성하기 위해 약간 더 큽니다. SC601AC는 양쪽 끝에 삼각형 모양의 구멍 3개가 있는 약간 다른 장착 방식을 가지고 있습니다. 적절한 구멍 크기와 간격은 기계 도면을 참조하십시오.
This SC601AC is a single type load cell designed for high capacity applications. It follows the same structure of the SC601 but is slightly larger in order to achieve higher capacities of up to 200kg. The SC601AC also has a slightly different mounting setup with 3 holes on each end in triangle formation. Please refer to the mechanical drawings for proper hole size and spacing
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-B-B load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-B-B load cells can be used to measure loads range from 3kg to 50kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAB-B-B load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.
50,100,200,500,1000,2000,3000kg Or Customized Single Point Weight Sensor FA524A belongs to FA524 which is from Single Point Weight Sensor category of our brand FIBOS FA5-Series. FA524A can be used to measure weight 50kg,100kg,200kg,500kg,1000kg,2000kg and 3000kg or customized capacity, its Cable size is ⌀3x4000mm or can be customized length.
5,10,20,50,80,100kg Or Customized Single Point Weight Sensor FA537 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA537 can be used to measure weight ranges from 5kg,10kg,20kg,50kg,80kg up to 100kg or could be customized capacity, its Creep(30min) and Repeatability both ≤0.18%F.S. or could be customized, and its Non-linearity and Hysteresis both ≤0.2%F.S. or customized.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAC-A9 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAC-A9 load cells can be used to measure loads range from 1kg to 2kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAC-A9 load cells are mainly used for electronic balance,counting scales,weighing scales,retail scales,jewellery scales,kitchen scales,coffee machine and packing machine.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-I3 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-I3 load cells can be used to measure loads range from 20kg to 100kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAB-I3 load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.
