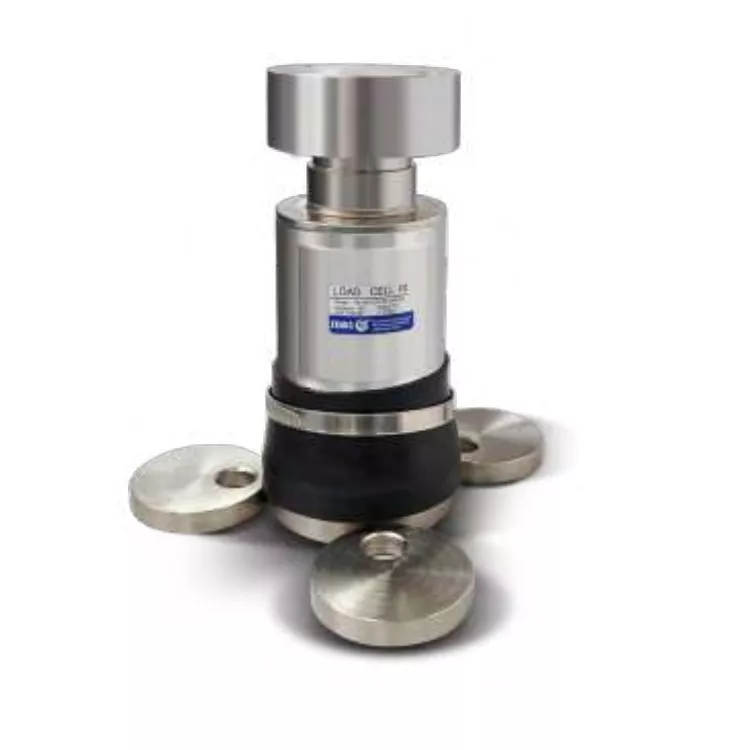

Short Description:
◎Alloy steel,hermetically welded, oil-proof,waterproof and anti-corrosion, suitable for all kinds of environments；
◎Column structure, anti-reversal design, good, self-aligning ability, suitable for electronic platform scales, automobile testing facilities, hopper scales and other electronic weighing devices；
Specification：
| Maximum capacity ( Emax ) |
t |
10/15/20/25/30/40/50/60 |
| Accuracy class |
|
C3 |
| Maximum number of load cell intervals ( nLC ) |
|
3000 |
| Ratio of minimum LC verification interval Y = Emax / vmin |
|
Emax/10000 |
| Combined error |
%FS |
±0.020 |
| Creep |
%FS/30min |
±0.016 |
| Temperature effect on sensitivity |
%FS/10℃ |
±0.011 |
| Temperature effect on zero |
%FS/10℃ |
±0.015 |
| Output sensitivity ( = FS ) |
mV/V |
2.0±0.002 |
| Input resistance |
Ω |
700±7 |
| Output resistance |
Ω |
703±4 |
| Insulation resistance |
MΩ |
≥ 5000(50VDC) |
| Zero balance |
%FS |
±1.0 |
| Compensated temperature |
℃ |
-10~+40 |
| Operating temperature |
℃ |
-35~+65 |
| Excitation, recommended voltage |
V |
5~12(DC) |
| Excitation maximum |
V |
18(DC) |
| Safe overload |
of Emax |
150 |
| Ultimate overload |
of Emax |
300 |
| Ingress protection (according to EN 60529) |
|
IP68 |

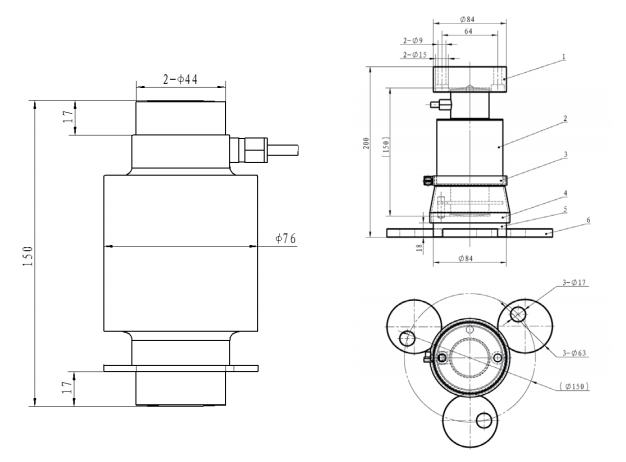

Dimensions in mm：
Wiring：
◎Cable diameter: Φ5.0±0.2mm 4 wires；
◎Standard cable length: 15m；
| Part No. |
1 |
2 |
3 |
4 |
5 |
6 |
| Name |
Upper Button |
Load Cell |
Tube Clip |
Dust Cover |
Bottom Button |
Excentric washers |
| Qty |
1 |
1 |
1 |
1 |
1 |
3 |
Instruction：

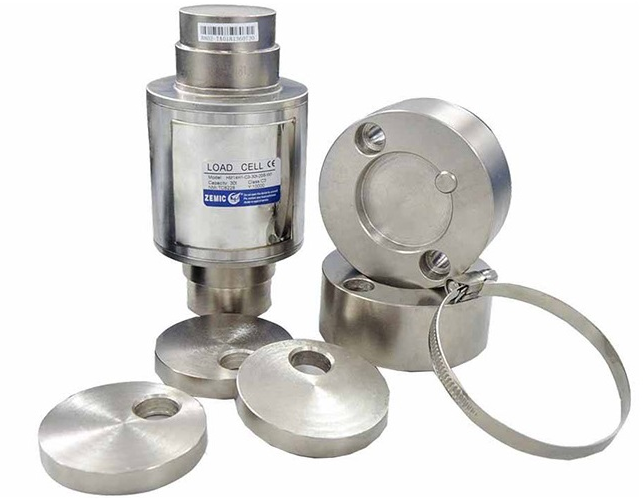

◎The drawing contain load cell HM14H1 and it’s accessory HY-14-146;
◎Adjust Part No.4 to insure the distance of 18;make sure that Part No.3 be horizontal and fastened;
◎Adjust Part No.6 according to the circle diameter of the bottom button
