Technical Parameter
| Product Performance | ||
| Long-Term Stability | ±0.2%FS/year(Not cumulative) | |
| Accuracy | ±0.25%FS,±0.5%FS(Optional) | |
| P201 Temp.Effect | 1.5FS/100℃ | |
| Comp.Temp. | -20℃~80℃ | |
| Working Temp. | ||
| Non-Display | -40℃~85℃ | |
| LCD | -20℃~70℃ | |
| Measuring Medium Temp. | ||
| Filled Silicone Oil | -40℃~125℃ | |
| -40℃~150C(Adding connectors) | ||
| Zero Error | ±1%FS | |
| Span Error | ±1%FS | |
| Response Time | ≤30ms | |
| Fatigue Life | More than 100 million designs | |
| Physical Characteristics | ||
| Pressure Interface | See Ordering Guide | |
| P201 Contact Parts | SS316L | |
| Electrical Interface | See Ordering Guide | |
| Shell Material | SS304 | |
| Shell Protection | IP65/IP67 | |
| Shock | EC 68-2-27 procedure I | |
| Vibration | 10g,25-2000Hz | |
| Weight | About 800g | |
| Environmental Data | ||
| Certification | CE,RoHS | |
| Voltage Output | |
| Output (3-wire) | Min OV to max 10V |
| Power Supply | Over full range output 4V, max 30Vdc |
| Current Output | |
| Output(2-wire) | 4-20mA 2-wire |
| Power Supply | 10-30Vdc |
| Range | Proof Pressure(xFS) | Burst Pressure(xFS) |
| Kpa/bar | X-100CY-S | X-100CY-S |
| 5~1000bar | 2.0xFS | 5.0xFS |
| 200kpa~100Mpa | 2.0xFS | 3.0xFS |
| 200bar~700bar | 1.5xFS | 2.0xFS |
| wire | wire | wire | Modbus-RTU | |||
| Type | Terminal | Current signal | Voltage signal | Voltage signal | RS485 | Cable Colour |
| M12*1 | 1 | +ve Supply | +ve Supply | +ve Supply | +ve Supply | Brown |
| 2 | OV Com | -ve Output | -ve Supply | white | ||
| 3 | +ve Ouutput | +V ve O utput | +ve Output | A+ | Blue | |
| 4 | -ve Supply | B- | Black | |||
| DIN | 1 | +ve Supply | +ve Supply | +ve Supply | +ve Supply | Red |
| 2 | +ve Output | +ve Output | -ve Supply | -ve Supply | Black | |
| 3 | OV Com | +ve Output | A+ | Blue | ||
| GND | -ve Output | B- | White |

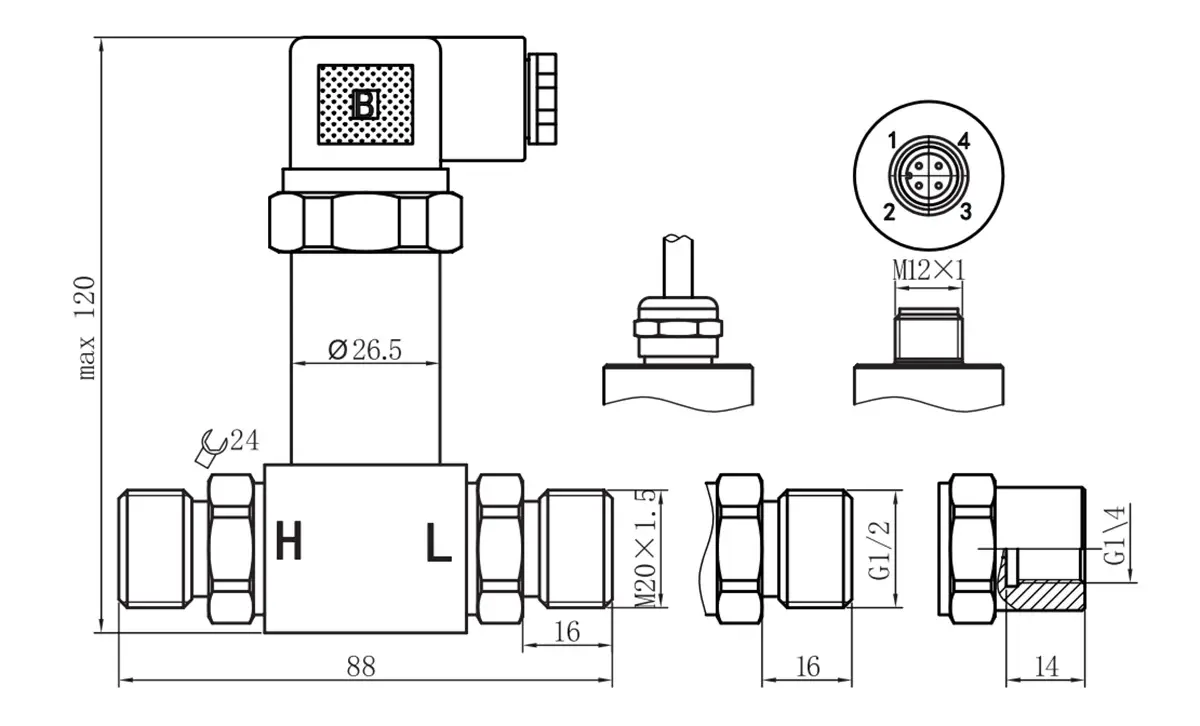

Dimension & Capacity
Application
It is used for differential pressure measurement of various gases and liquids in water pumps, compressors, water supply pipelines and other occasions.
