Features

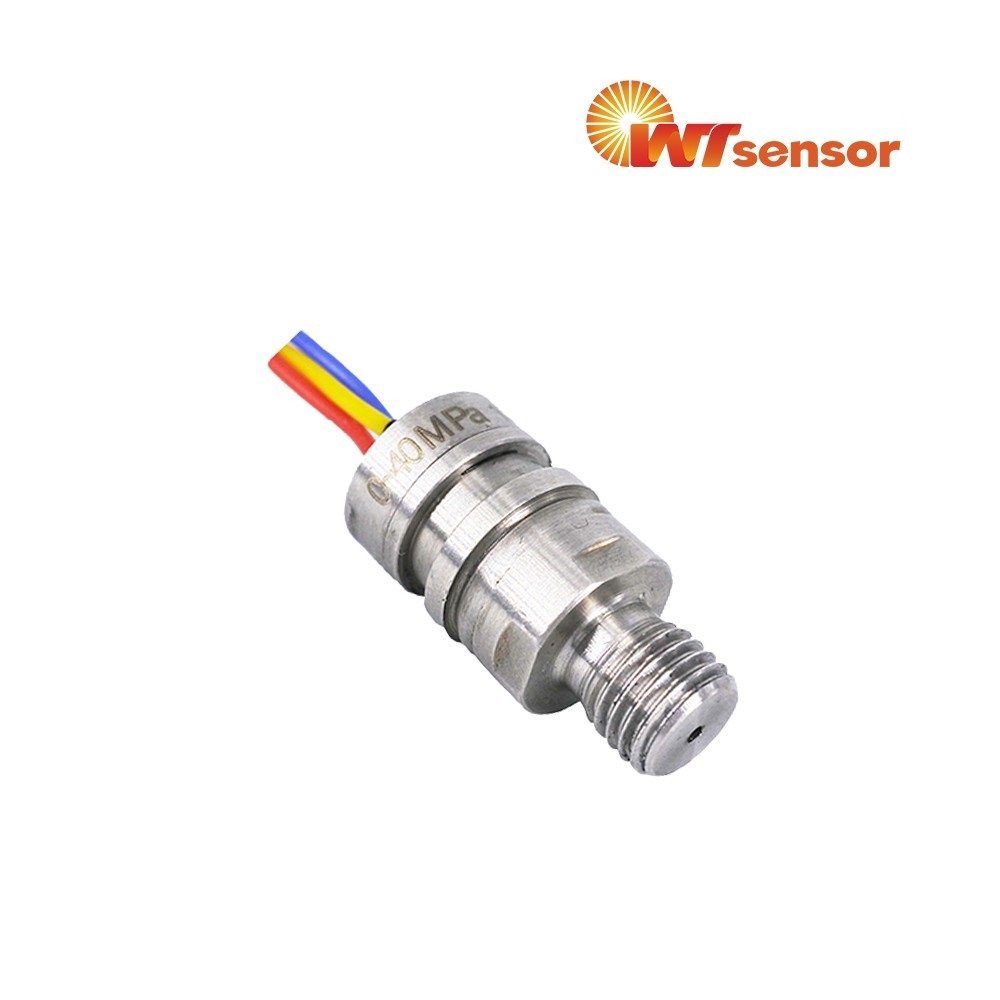

■Imported sensor die with high reliability
■Temperature compensation of wide range
■Constant voltage compensation for normalized output
■Sealant pouring compensating board with excellent moisture resistance
■Small size, convenient for installation and use
■Pressure connection customization available
■Sensor diameter: 12.6mm
Product Parameters
| Pressure range | |
| Pressure range | 40MPa |
| Pressure reference | Sealed gauge pressure |
| Output signal | |
| Zero output | ±1mV |
| Span output | ≥29.5mV |
| Specification | |
| Excitation | 2.1VDC±0.002VDC |
| Compensated temp. | -30℃~70℃ |
| Nonlinearity | ±0.25%F.S. |
| Insulation resistance | ≥200MΩ/250VDC |
| Zero temp. coefficient | ±0.8%F.S. (@ -30℃~70℃) |
| Span temp. coefficient | ±0.8%F.S. (@ -30℃~70℃) |
| Housing and diaphragm | Stainless steel 316L |
| Drawing |
