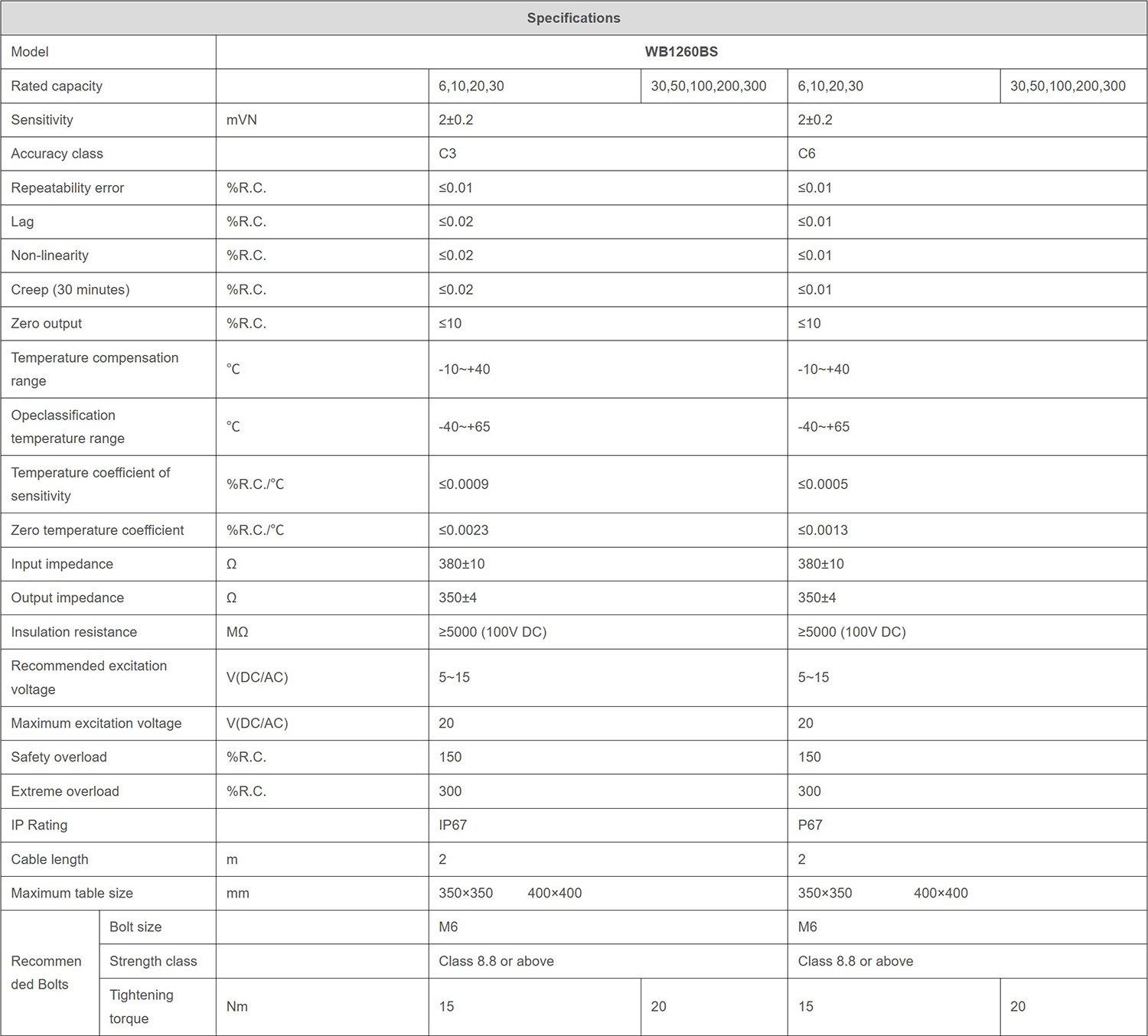

WB1260BS-6kg, WB1260BS-10kg, WB1260BS-20kg, WB1260BS-30kg, WB1260BS-50kg, WB1260BS-100kg, WB1260BS-200kg, WB1260BS-300kg
Capacity: 6–300 kg
Material: Aluminum
Type: Single Point
Protection Rating: IP67
Suitable for platform scales, packaging scales, counting scales, checkweighing scales, and process weighing equipment.
| Capacity | A |
| 6, 10, 20, 30, 50kg | 25.4 |
| 100, 200, 300kg | 30 |
50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.
This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.
This sensor is made of high-grade alloy steel, is stable, can be installed in tight spaces, and can be customized. It is suitable for various industrial automation and precision measurement applications.
50,100,500,1000,5000kg Or Customized Tension Compression Force Sensor FA130C belongs to FA130 which is in Tension Compression Force Sensor category of our brand FIBOS FA1-Series. FA130C can be used to measure tension&compression force ranges from 50kg,100kg,500kg,1000kg and 5000kg or customized capacity.
500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
5,10,20,50,1000kN Or Customized Column Type Load Cell FA407B is a model of Column Type Load Cell, it belongs to FA407 in our brand FA4-Series, FA407B is used to measure load 5kN, 10kN, 20kN, 50kN and 1000kN or customized capacity, its Cable size is ⌀6x5000mm or customized length, its weight is 2kg or customized.
500,1000,2000,5000,10000N Or Customized Column Type Load Cell FA402B is a model of Column Type Load Cell, it belongs to FA402 in our brand FIBOS FA4-Series, FA402B could measure load 500N, 1000N, 2000N, 5000N and 10000N or customized Capacity, its Creep(30min), Non-linearity, Hysteresis, Repeatability all ≤0.05%F.S. or could be customized, its weight is 0.1kg or customized.
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.
50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor FA410 is a model of Column Type Load Cell, it is designed to measure load ranges from 50kN up to 3000kN. The material Alloy Steel or Stainless Steel can be customized, its cable size is 5.4x6000mm, it supports IP67.
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.
