Webowt / ID551PN / Indicator

ID551PN Multi Scales Weighing Controller (ABS) / ID551PN Multi Scales Weighing Controller (Metal)



6-digit LED Display

  • Capable of displaying weights from up to four different scales by switching between them.
  • Supports configurations of 1 to 4 analog scale inputs, processing up to 4 analog scales simultaneously.
  • Each channel supports up to 8 units of 350Ω analog load cells.
  • Legal for Trade Certification: CPA 6000e accuracy, compliant with OIML 6000e standards.
  • Certifications: OIML and CE approved.
  • Available in single LAN port and dual LAN port versions.
    • Single LAN port version: Supports MODBUS-RTU, MODBUS-TCP, TCP, and UDP.
    • Dual LAN port version: Supports PROFINET, EtherNet/IP, CC-Link IE, and EtherCAT.

ID551PN Single Scale Weighing Controller

  • 7-digit LED display
  • Supports one analog scale input configuration
  • Single channel supports up to 8 units of 350Ω analog load cells
  • High precision: 7500e, Standard precision: 6000e, compliant with OIML 6000e standard
  • Certifications: OIML and CE certified
  • Available in single LAN port and dual LAN port versions
  • Serial Port: RS232/485, supports MODBUS-RTU
    • Single LAN port version: Supports MODBUS-TCP, TCP, and UDP
    • Dual LAN port version: Supports PROFINET, EtherNet/IP, CC-Link IE Field Basic, and EtherCAT
  • Supports multiple calibration modes
Add to Wishlist
Share it:

Models

ID551PN Multi Scales Weighing Controller (ABS), ID551PN Multi Scales Weighing Controller (Metal), ID551PN Single Scale Weighing Controller

Features

ID551PN Multi Scales Weighing Controller (ABS) / ID551PN Multi Scales Weighing Controller (Metal)

  • 6-bit LED display, can switch to display the weight of 4 scales
  • Supports 1-4 analog scale input configurations, and supports up to 4 analog scale inputs
  • Each channel supports up to 8 350-ohm analog load cells;
  • Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
  • Have got OIML & CE certificates
  • Supports single LAN port version and dual LAN ports version selection
  • Single LAN port version supports: MODBUS-RTU, MODBUS-TCP, TCP, UDP
  • Dual LAN ports version supports: PROFINET/EtherNet/IP/CC_LINK IE/EtherCAT

ID551PN Single Scale Weighing Controller

  • 7-bit LED display
  • Supports 1 analog scale input configuration
  • Single channel supports up to 8 350-ohm analog load cells;
  • High precision 7500e, ordinary precision 6000e, OIML: 6000e
  • OIML & CE certification
  • Supports single LAN port version and dual LAN ports version selection
  • Serial port: RS232/485, supports MODBUS-RTU
  • Single LAN port version supports: MODBUS-TCP, TCP, UDP
  • Dual LAN ports version supports: PROFINET, EtherNet/IP, CC-LINK IE FB, EtherCAT
  • Multiple calibration modes

Optional

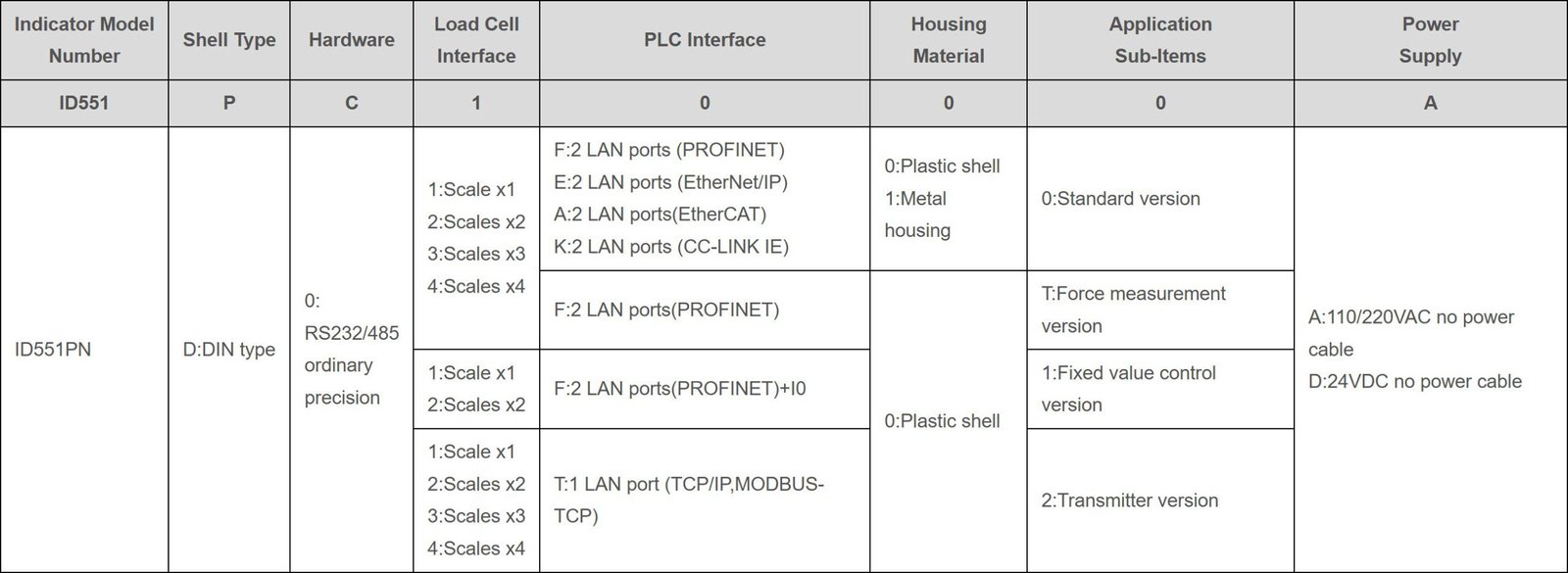

ID551PN Multi Scales Weighing Controller (ABS) / ID551PN Multi Scales Weighing Controller (Metal)

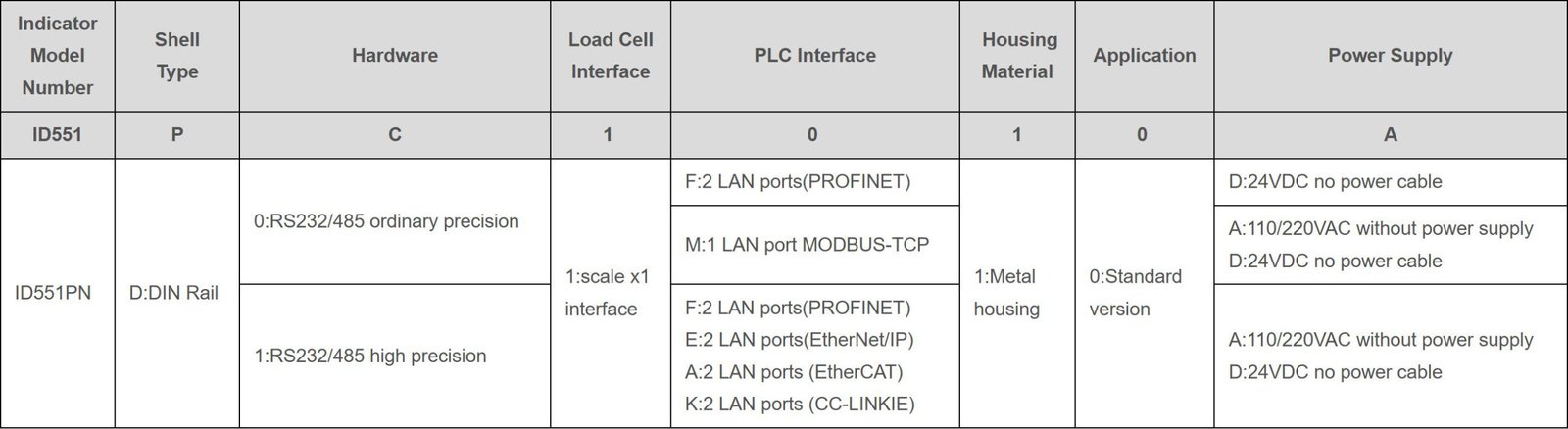

ID551PN Single Scale Weighing Controller
