Models
ID550WL Truck Scale Indiator
Features
Product Specifications
- Display: 6-digit LED display
- Scale Input: Supports 1 analog scale input, connecting up to 4 load cells per channel
- Accuracy: Legal for Trade Approval (CPA) 3000e, max. display resolution 60,000
- Communication:
- 1 standard serial port: RS232/485
- Supported Communication Protocol: MODBUS-RTU
Standard Features
- Built-in GPS positioning function
- Supports 2G wireless communication
Application – Tower Warehouse Weighing
- Lower limit alarm function for stored materials
- Inbound weighing history management function
- Outbound weighing history management function
- Stores up to 1,000 weighing data records
- Supports real-time weight and weighing record upload to the cloud
Calibration Mode
- Supports up to 2-point code removal (zero calibration) method
- Calibration without weights is possible
Power Specifications
- Operating Power: DC 24VDC
- Max. Power Consumption: ≤ 6W (based on the 8 In / 8 Out version)

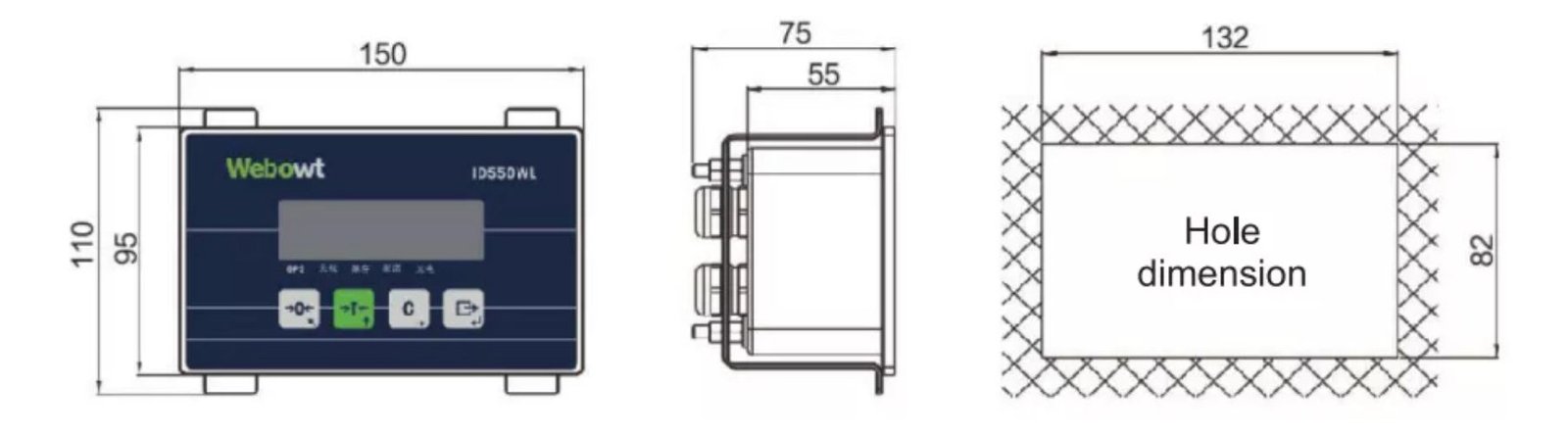

Dimensions

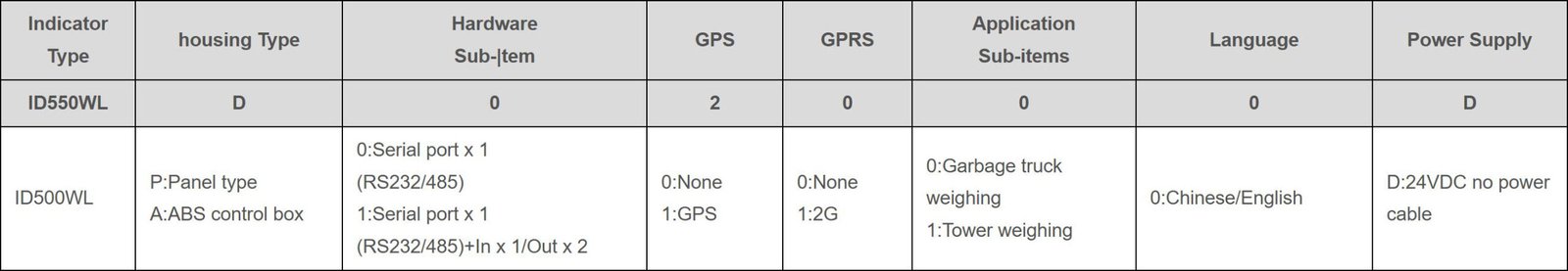

Optional
