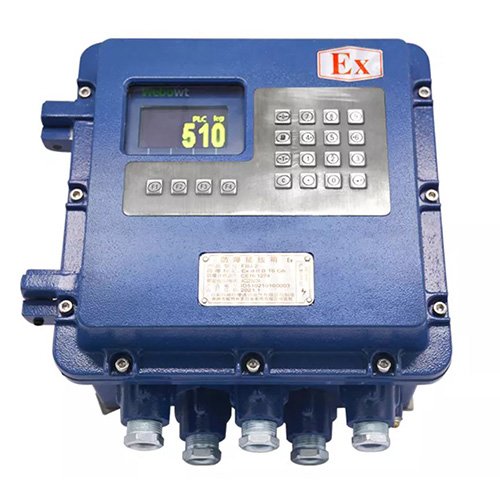

Webowt / ID510 Exd / Indicator


This product is a multifunctional weighing controller equipped with high-precision weighing performance, various industrial interfaces, and an OLED display, making it an optimized solution for automation environments that require complex processes such as packaging, filling, inspection, and batching.


Share it:

Models

ID510 Exd

Features

Product Specifications

  • 2.7-inch OLED dot-matrix graphic display
  • Supports Korean and English language switching
  • Supports 1 analog scale input, connects up to 12 load cells
  • Weighing Instrument Type Approval (CPA) 6000e accuracy certification, supports up to 150,000 display divisions
  • OIML and CE certified

Standard Communication Configuration

  • 2 Serial Ports
    • RS232 + RS232/485
    • Option for RS232 + RS485 + 1 additional LAN port
  • Supported Protocols
    • MODBUS-RTU
    • MODBUS-TCP (supported in Ethernet version only)

PLC Communication Interface (Optional)

  • PROFIBUS-DP (for Siemens PLC)
  • CC-Link (for Mitsubishi PLC)
  • PROFINET (dual-port with built-in switch, for Siemens PLC)
  • EtherNet/IP (dual-port with built-in switch, for Rockwell/Delta PLC)

Analog Output (Optional)

  • 1 channel of 4–20mA (16-bit precision DAC)
  • 2 channels of 4–20mA (16-bit precision DAC)

Input/Output (I/O) Options

  • 8 input channels / 12 transistor output channels
  • 8 input channels / 12 relay output channels

Calibration Functions

  • Supports up to 5-point weight calibration
  • Calibration without weights supported
  • Supports remote calibration via PLC communication

Supported Application Versions

  • Basic Weighing Version
  • Packaging Version
  • Checkweighing Version
  • Filling Version
  • Batching Version

Power Specifications

  • Supports AC 85~264V or DC 24VDC
  • Total instrument maximum power consumption: ≤ 6W
