UT122 Hex Joint Protection Load Cell
 |

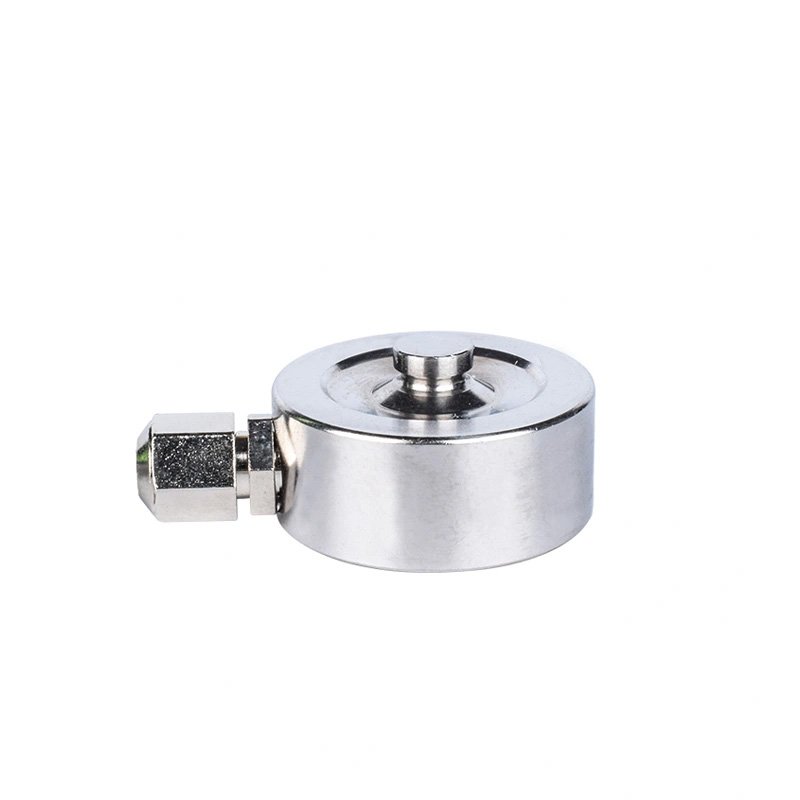

Product FeaturesSL107 miniature compression force sensor, made of robust 17-4 PH stainless steel, uses the high precision resistance strain gauge principle, is pressure loaded and easy to install and use. The cable shield and the sensor housing are electrically connected to ensure interference-free measurement under unfavorable EMC conditions. The working temperature range is -20℃~80℃. |
Technical Specifications
| parameter | Technique |
| Nominal range | 50,100,200,300,500N
1,2,5,10,20kN |
| Output Sensitivity | 1.5±20%mV/V |
| Zero output | ±2%mV/V |
| Creep | ≤0.1%F.S. |
| Nonlinear | ≤0.5%F.S. |
| Lag | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input resistance | 800~1100Ω |
| Output resistance | 800~1100Ω |
| Temperature Sensitivity Drift | 0.05%F.S./10℃ |
| Zero Temperature Drift | 0.05%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Excitation voltage | 5~12V |
| Maximum excitation voltage | 15V |
| Temperature compensation range | -10~60℃ |
| Operating Temperature Range | -20~80℃ |
| Safe Overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable Wire Size | φ2/3X3m |
| Material | Stainless steel |
Product Dimensions
Installation size
Load Direction
Wiring Diagram
Accurate measurement with matching display
The output of the force measuring and weighing sensor itself is an MV signal, which needs to be amplified and convertedto display numerical values or output signals to the upper computer, PLC, etc.
