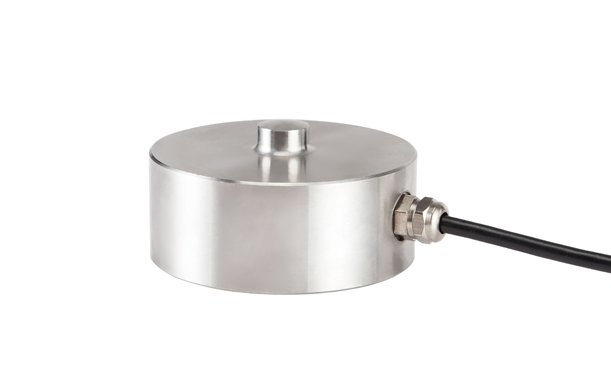

TG Load Cells / TJH-14 / Membrane Load Cell

Model AL-JP is a high output load cell (30 mV/V minimum). These semiconductor strain gage load cells are engineered to measure loads from 500 lb to 2000 lb. The tension/compression Model AL-JP is designed with female threads. It provides high performance in non-linearity, hysteresis, and repeatability. Low mechanical deflection allows for better response capability.

TJL-12 ice detection load cell has good weather resistance and sealing stable performance. The main supply of high voltage power transmission and transformation engineering, used for power transmission and transformation line ice-covered online monitoring system tension monitoring and measurement, and according to customer requirements to add analog transmitter or digital module.

Capacity: 90 kN
Material: Stainless steel
Type: Pin
Protection Rating: IP69K
Suitable for load measurement devices and overload safety control applications.

The pedal pressure sensor mounts directly to the brake pedal with its own mounting clamp. Load applied up to 1/2 inch off center, produces less than a 0.5% error. Standard capacity is 300 lbs. This load cell, which is used for brake pedal force measurements by the automotive industry, finds many production applications. It adapts to any of the pedal or bar operated devices used in all production facilities.

In the field of vehicle safety, a crash wall integrated with Crash Wall Load cells is an essential equipment. Each Crash Wall Load cell measures forces in X, Y, Z directions during vehicle impact test.

Two types of crash wall load cells are available: standard and lightweight versions. The standard version has a sensor capacity of 300 or 400kN, for digital or analog output versions respectively. These can be used to configure a Full Width Rigid Barrier. The lightweight version has a capacity of 50kN and can be integrated into a Mobile Progressive Deformable Barrier.

Crash Dummies are vital in the field of automotive passive safety. There are many loadcells and displacement sensors in the dummy. Sunrise Instruments (SRI) has more than 30 years of experience in designing and manufacturing dummy sensors. SRI’s dummy sensors are used in most crash labs around the word. These sensors help people accurately measure the force, moment and displacement of crash dummy body parts during crash testing.

Model AL-SC is high-output load cell. These semiconductor strain gage load cells are engineered to measure loads from 500 lb to 2000 lb. The tension/compression Model AL-SC is designed with female threads. It provides high performance in non-linearity, hysteresis, and repeatability. Low mechanical deflection allows for better response capability.

Low height, easy to install, strong anti-eccentric load capacity, good sealing. Suitable for braking force detection of vehicles.

Oil field load cell is suitable for data acquisition of oil field wellheads. It has the characteristics of convenient installation, good sealing, high comprehensive precision, anti-corrosion, moisture-proof, dust-proof and good dynamic performance. It has been used in many oil fields such as Daqing, Shengli, North China, Xinjiang, Liaohe, Changqing, etc., and has been widely praised.
