The ZHKY2050A is a series of non-contact type torque sensors ideal for testing and measurement of industrial rotating machines. Designed to be small and rugged it can easily be installed in a variety of industrial applications. The sensor can output torque and speed for measuring power exerted by the attached rotating machine.
The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.
Features:
F from 20N to 2000N
M from 1N.m to 50N.m
Low crosstalk
Compact size
Optional features:
0-5V output signal
The ZHKY2050 is a compact non-contact type torque sensor ideal for low torque applications with maximum of only 5N·m. The ZHKY2050 can still handle up to 8000RPM so it is for systems that require high speed.
Static torque sensor is an instrument that converts the strain generated by torsional torque into an electrical signal with a linear relationship according to the principle of resistance strain, the product has mature manufacturing technology, complete variety, wide range, high precision, stable and reliable performance. It is widely used in testing machines, static torque detection and other test systems.
The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications.
Features:
Capacity 1000Nm-5000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features:
Hermetically sealed available
Suitable for dynamic, bearing, torque wrench and other testers

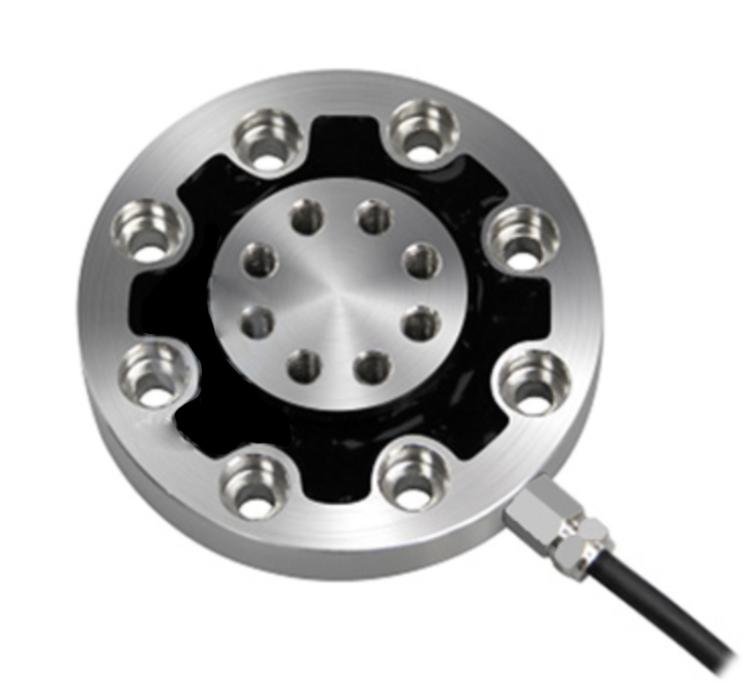

Flange to flange torque sensor ZMFNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMFNJ can be used in both clockwise and counterclockwise direction ranging from 5Nm up to 10000Nm. The measuring range and dual flange size can be customized to meet customer’s requirements.
Features:
Capacity 5Nm-10000Nm
Static torsion measure
Rational outputs
Nickel plated alloy steel
Optional features
Hermetically sealed available
The ZHKY901 is a rugged non-contact type torque sensor ideal for high torque applications with maximum of 300kN·m. The ZHKY901 is built with a stainless steel shaft and an aluminum body that can high capacities at high speeds of up to 8000RPM.
ZHKY901은 최대 300kN·m의 고토크 어플리케이션에 적합한 견고한 비접촉식 토크 센서입니다. ZHKY901은 스테인리스 스틸 샤프트와 알루미늄 바디로 제작되어 최대 8000RPM의 고속에서도 높은 성능을 발휘합니다.
A dynamic torque sensor is a precision measuring instrument capable of measuring the output torque and power of rotating power equipment It is widely used in torque and power testing of rotating power equipment such as electric motors, engines, and internal combustion engines, as well as torque and power testing of mechanical components such as fans, water pumps, gearboxes, and torque wrenches.
