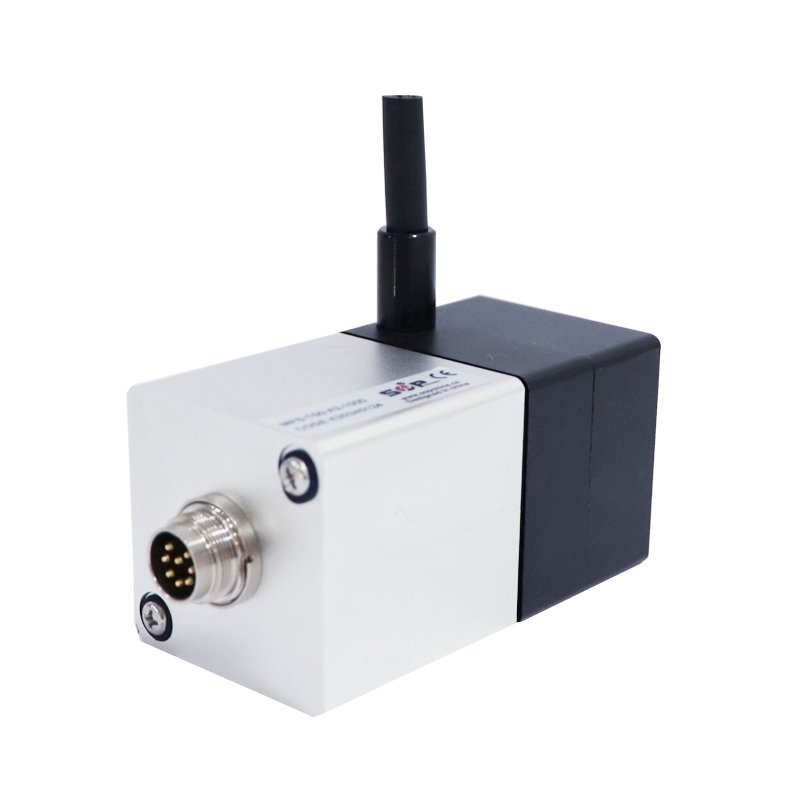

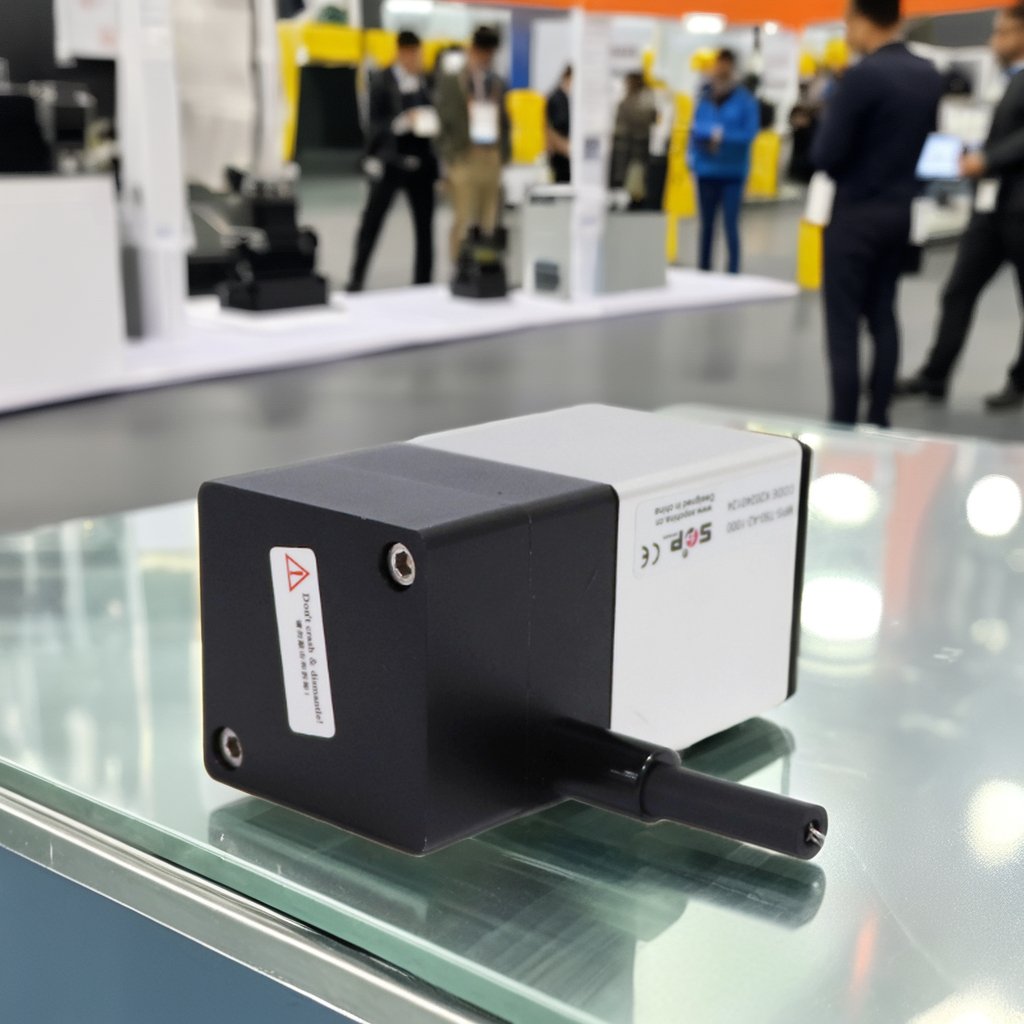

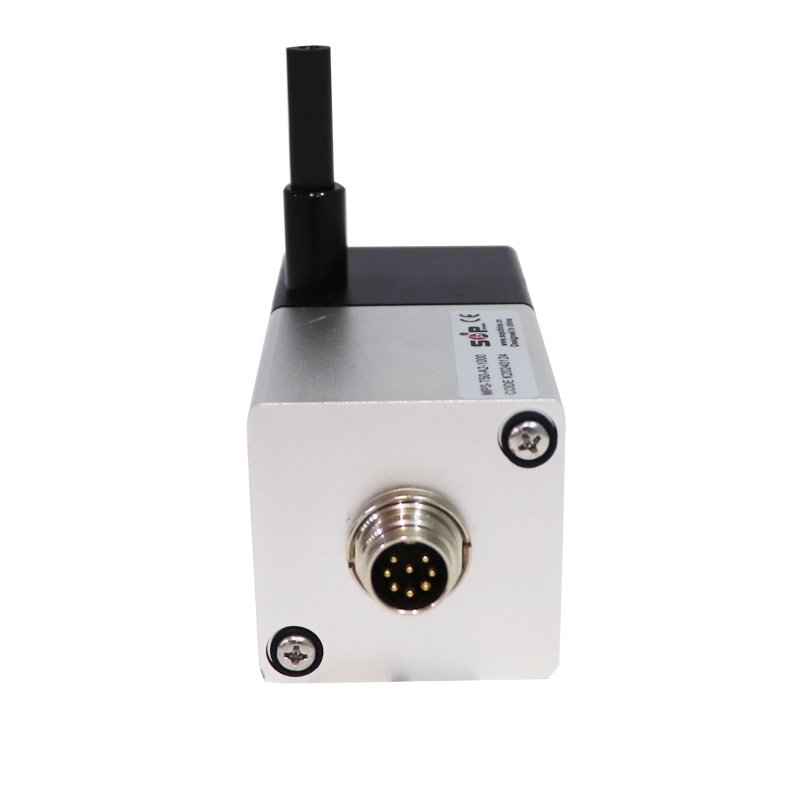

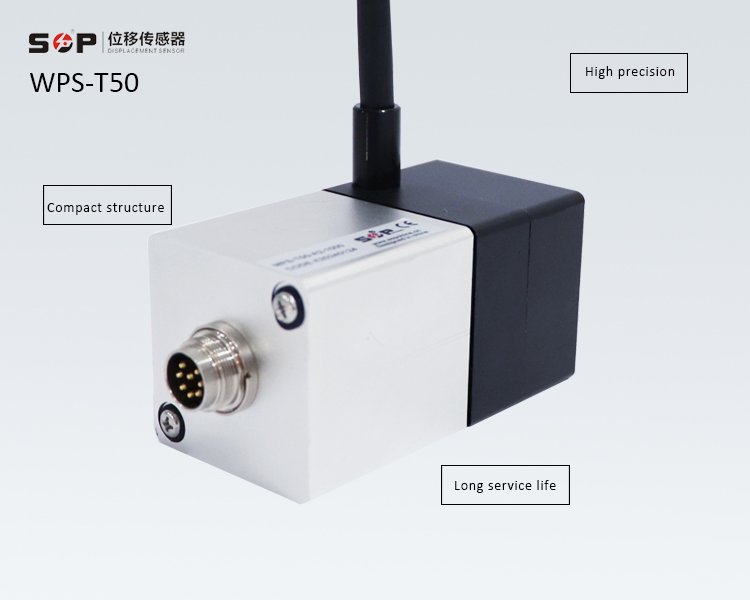

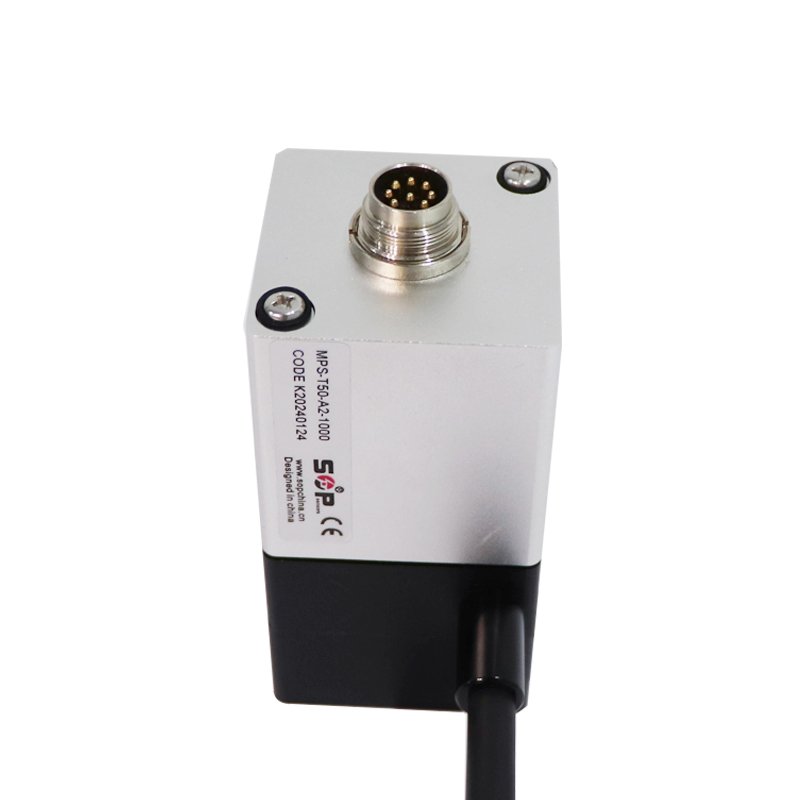

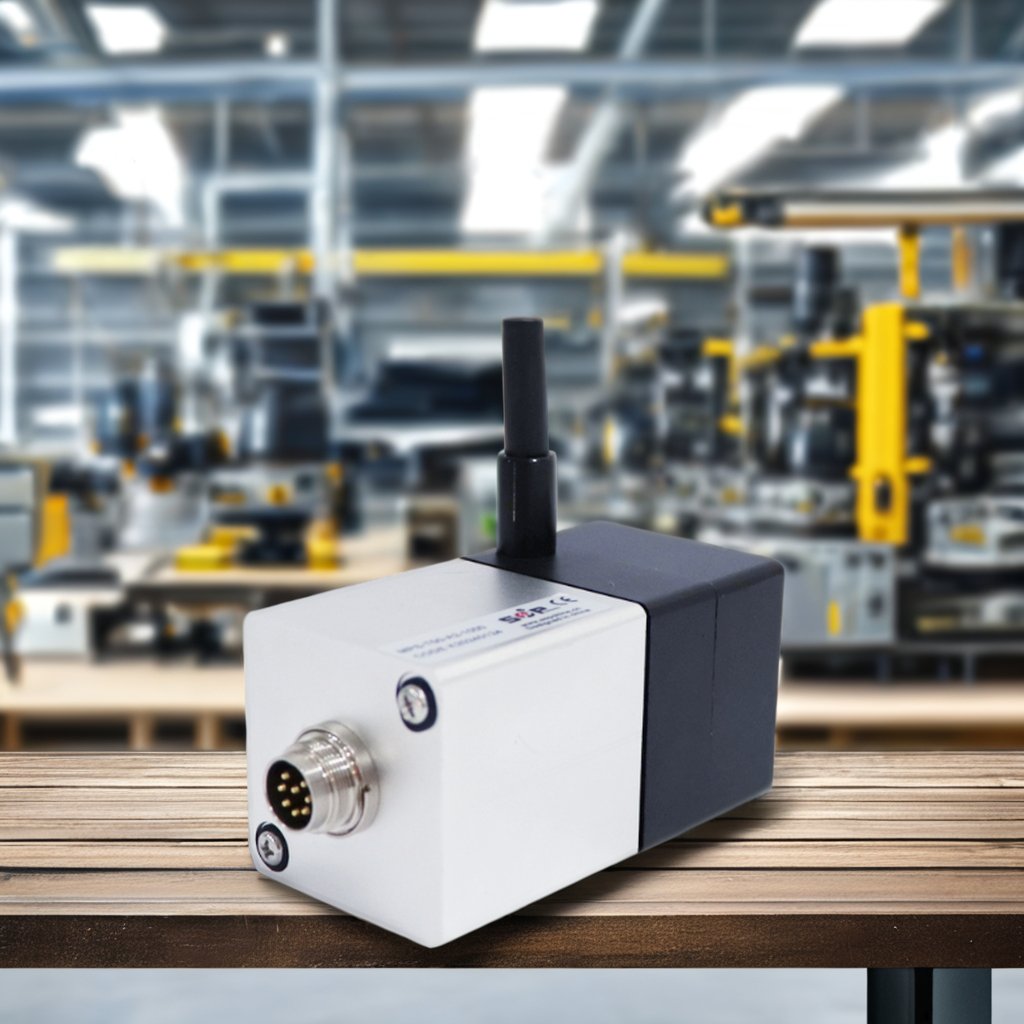

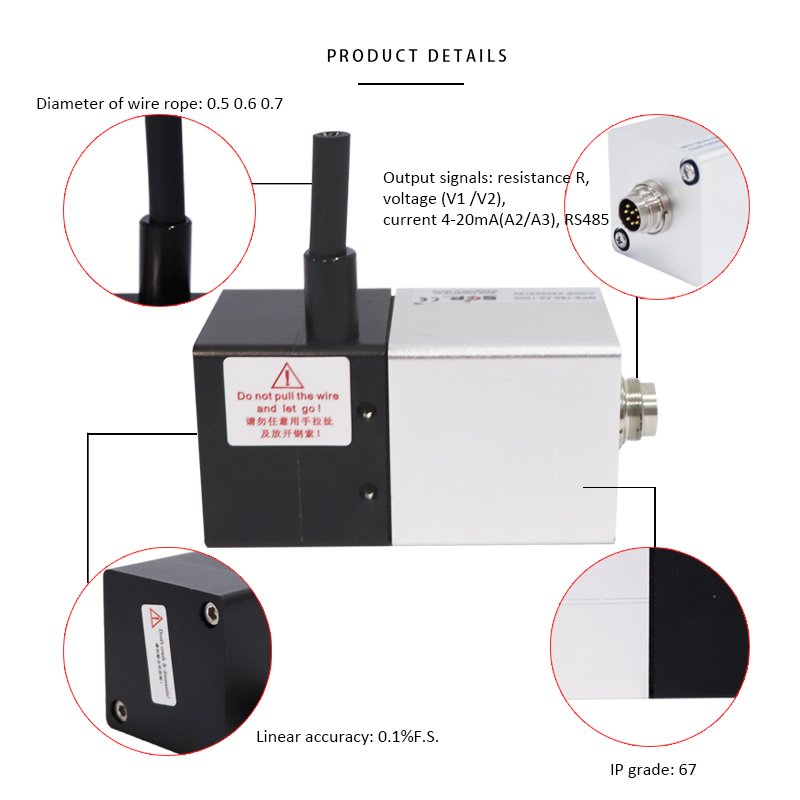

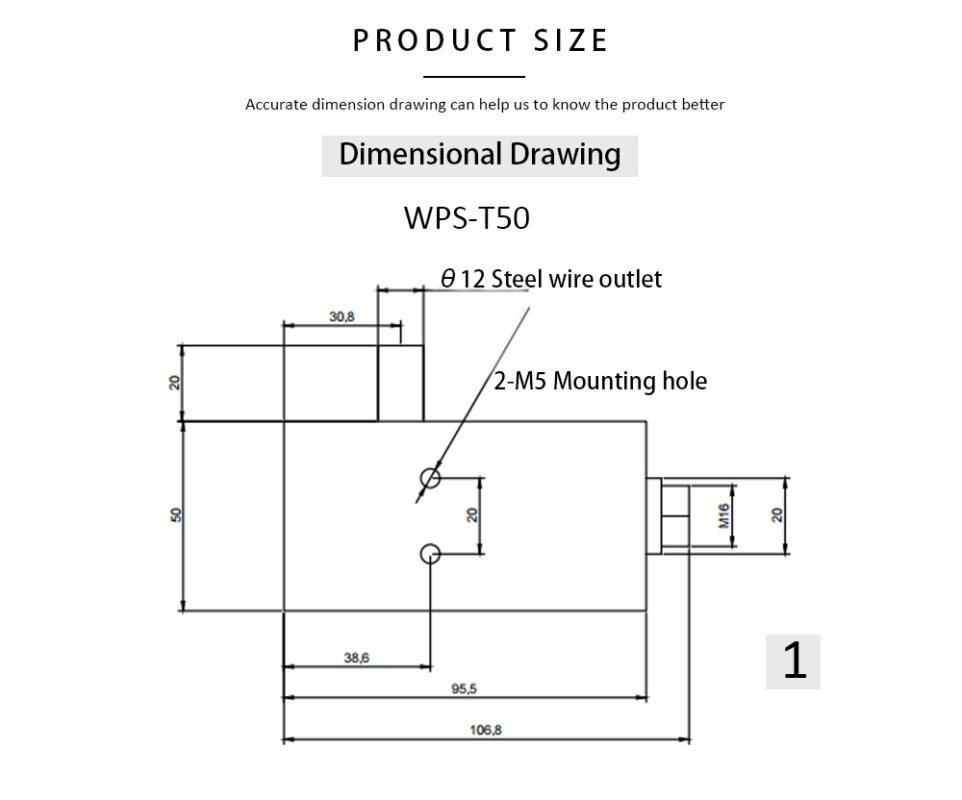

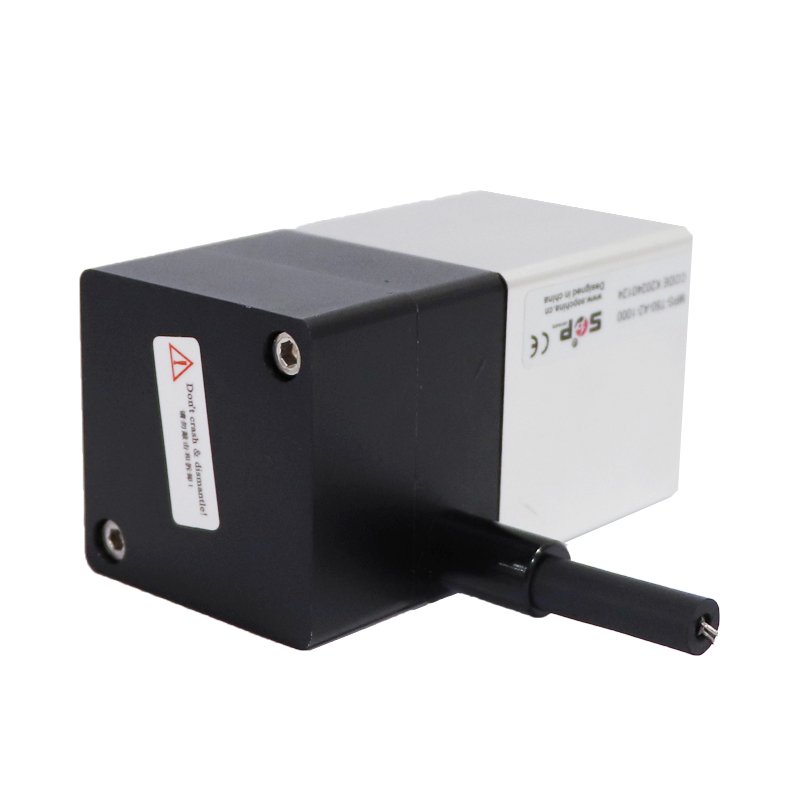

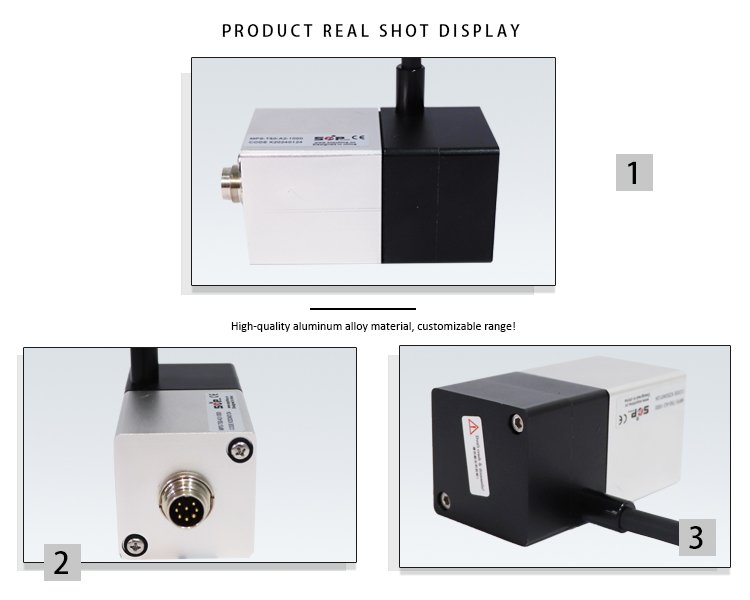

SOP / WPS-T50 / 0-1000mm Length Measurement Pull Rope Position Displacement Sensor

High precision and stable performance. Suitable for long-term measurement and monitoring of wire rope tension.

• Measuring range: up to 8000mm
• Output signal: AB phase, ABZ phase
• Resolution: 0.01, 0.02, 0.04, 0.08mm / pulse
• Working voltage: 10-30V DC, 5V DC
• Accuracy: +/-0.05% (full scale), +/-1 pulse
• Measuring wheel circumference: 400mm
• Pulling speed: maximum 1m/s
• Pull rope tension: 5-10N
• Weight: <5KG
• Product Name: Cable Displacement Sensor CESI-L8000 Series
• Can be customized on request

• Measuring range: up to 1000mm
• Measuring wheel circumference: 100mm
• Pulling speed: maximum 0.6m/s
• Resolution: 0.01, 0.02, 0.04, 0.08 mm / pulse
• Accuracy: +/-0.05%FS
• Power supply voltage: 10-30V DC, 5V DC
• Pull rope tension: 3N
• Weight: <0.5KG
• Product Name: Cable Displacement Sensor CESI-S1000 Series
• Can be customized on request

BRG-B rope deisplacement sensors, measuring range 100mm to 1250MM. Sensor output signal: resistance output, voltage output, current output. The sensor is small in size, high in accuracy, easy to install and use, and is widely used in the automation industry.

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

1. Measurement range：0-5000mm
2. Output Signal: Analog encoder, 4-20mA, Digital communication
3. Linearity : 0.05%
4. IP Degree: IP67
5. Shell Material: Aluminum alloy/metal

• Measuring range: up to 3000mm
• Measuring wheel circumference: 200mm
• Pulling speed: maximum 0.6m/s
• Pull rope tension: 5N
• Weight: <2KG
• Accuracy: +/-0.05%FS
• Power supply voltage: 10-30V DC, 5V DC
• Resolution 0.01, 0.02, 0.04, 0.08 mm / pulse
• Product Name: Cable Displacement Sensor CESI-M3000 Series
• Can be customized on request

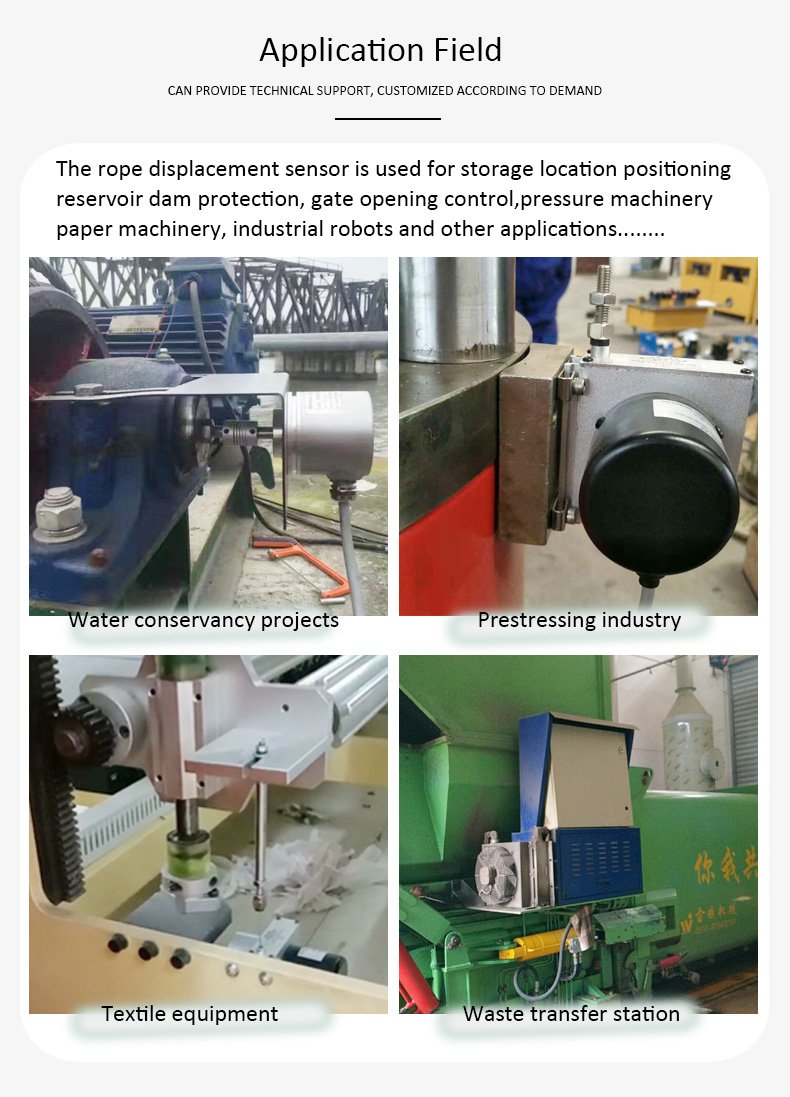

Suitable for long-term measurement and monitoring of wire rope tension.

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

• Measuring range: up to 2000mm
• Measuring wheel circumference: 150mm
• Pulling speed: maximum 0.6m/s
• Resolution: 0.01, 0.02, 0.04, 0.08 mm / pulse
• Accuracy: +/-0.05%FS
• Power supply voltage: 10-30V DC, 5V DC
• Pull rope tension: 5N
• Weight: <0.7KG
• Product Name: Cable Displacement Sensor CESI-S2000 Series
• Can be customized on request

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65
