SOPZ-100 Small Size Column Weight Sensor 10kg Canister Compression Load Cell Weight Scale for Electronic Weighing Equipment
Product Description
SOPZ-100
This product is simple in structure design and low in cost. The design of its sealing diaphragm changes the complicated process of matching the shell in the past, overcomes the defect that the shell of the traditional sensor is easy to be damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with the traditional column sensor, the sensor with this structure has higher accuracy in linearity, lateral resistance, torsion resistance and azimuth error.
This small size is suitable for the production and testing of 3C digital products. Traditional column sensors are widely used in various electronic weighing equipment such as track scales, hopper scales and platform scales.
Product Parameters
| Measuring Range | 1-100N | Material | Stainless steel |
| Output Sensitivity | 2.0±0.05%mV/V | Impedance | 350Ω |
| Zero Output | ±2%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-linearity | 0.05%F.S. | Operating Voltage Range | 5-10V |
| Hysteresis | 0.05%F.S. | Operating Temp Range | -20-80℃ |
| Repeatability | 0.05%F.S. | Safe overload | 150% |
| Creep (30min) | 0.05%F.S. | Maximum Overload | 200% |
| Temp.effect on output | 0.05% F.S. / 10ºC | Cable size | Φ3x2m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS |

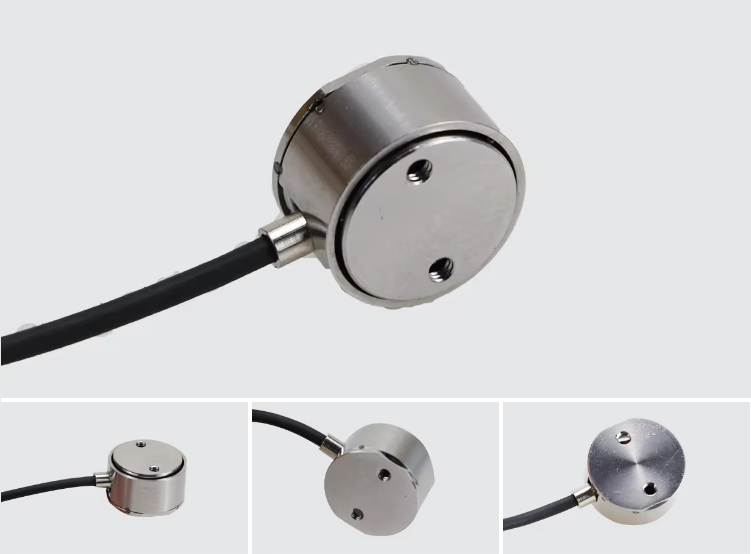

Detail Images
Industrial Application
