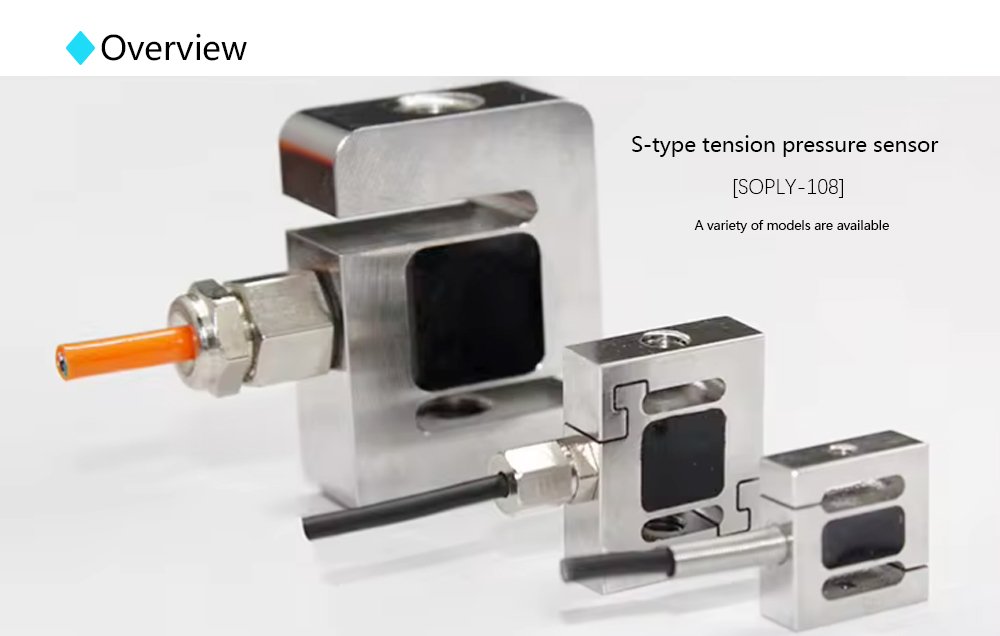

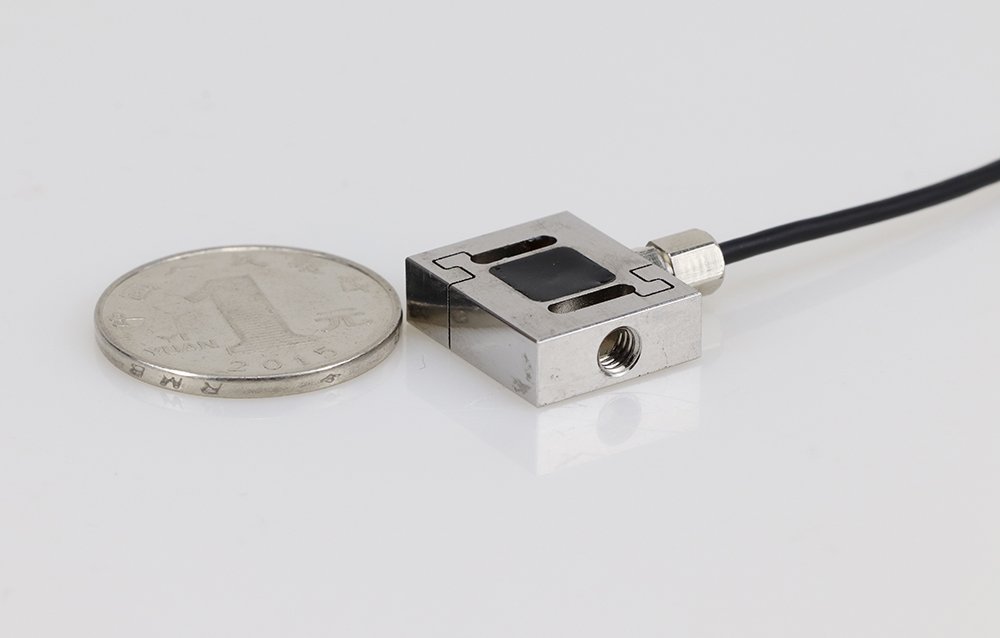

SOPLY-108 Thread Design Weight Cell Sensor 50kg 100kg 200kg Load Cell Force Sensor for Weight Measurement
Product Description
1.The elastic body adopts S-beam structure, which has the advantages of compact appearance, threaded design at both ends, small volume, high precision and easy installation, and can meet the force measurement in the range of 1-100kg.
2.It is mainly used for automobile press-fitting, automatic assembly, 3C product testing, robot hand grip, keyboard feel testing,etc.
3.oil-proof, waterproof and anti-corrosion.Safe and anti-explosive product, can be used in atrocious environment and hazardousareas.
4. It is suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.S beam
design,tension or compression loading possible,easy install.
design,tension or compression loading possible,easy install.

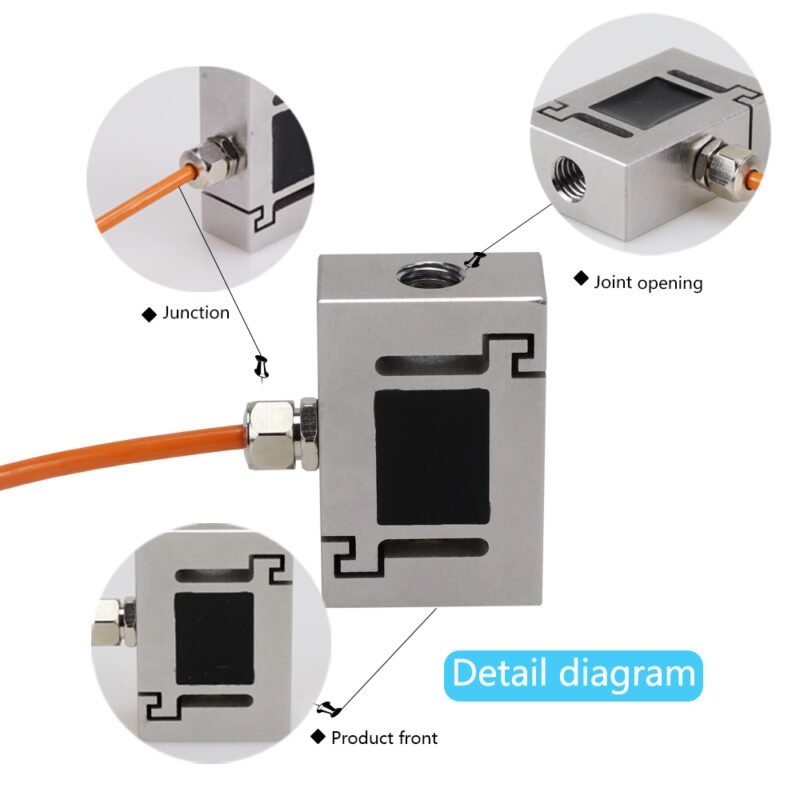

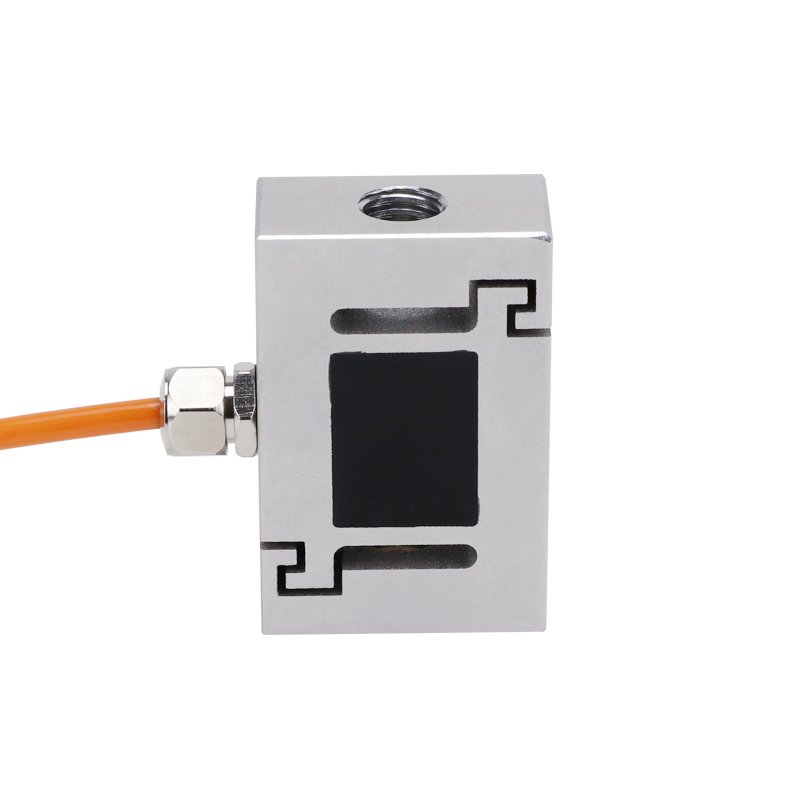

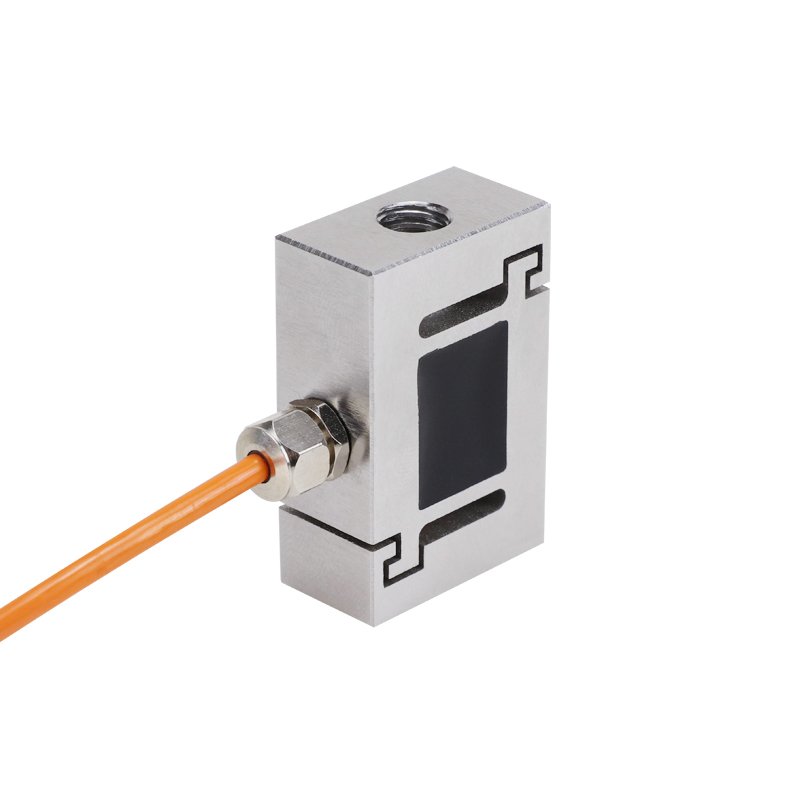

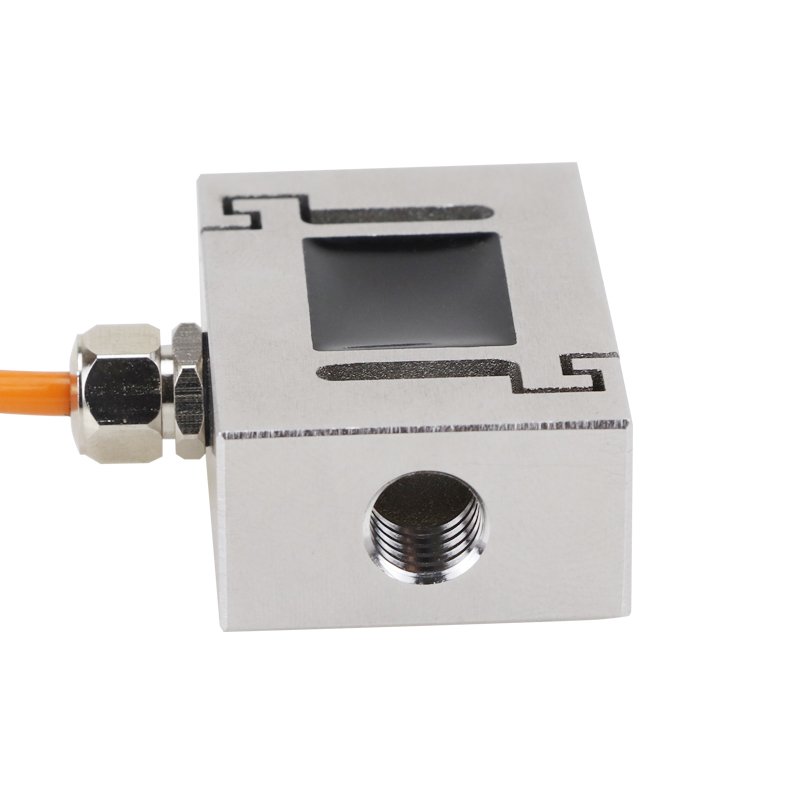

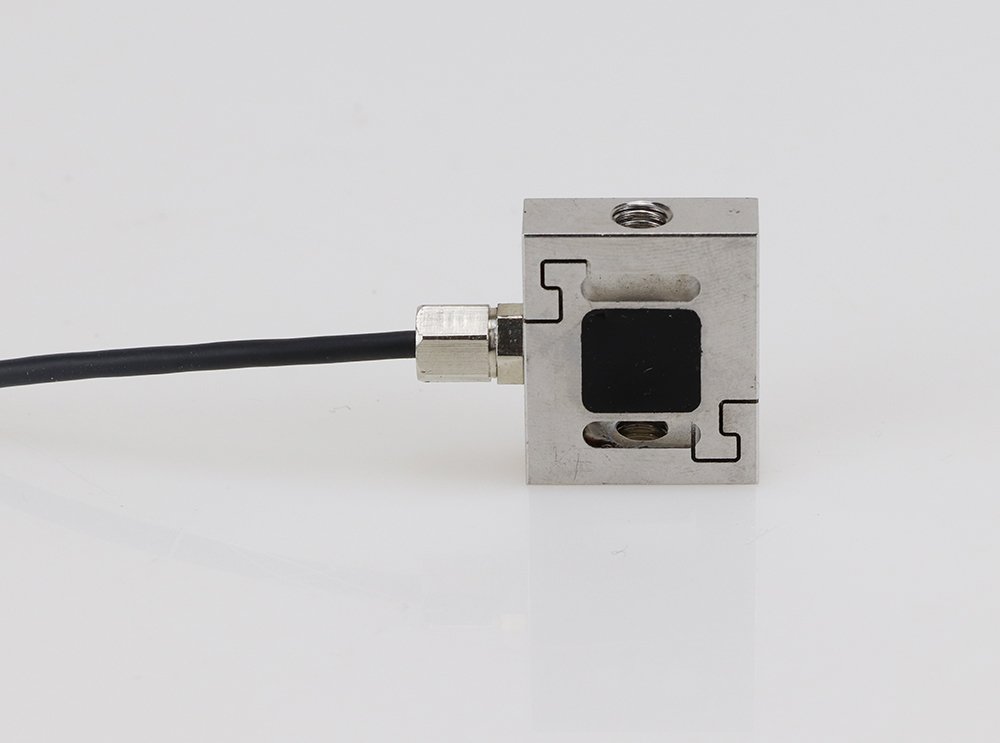

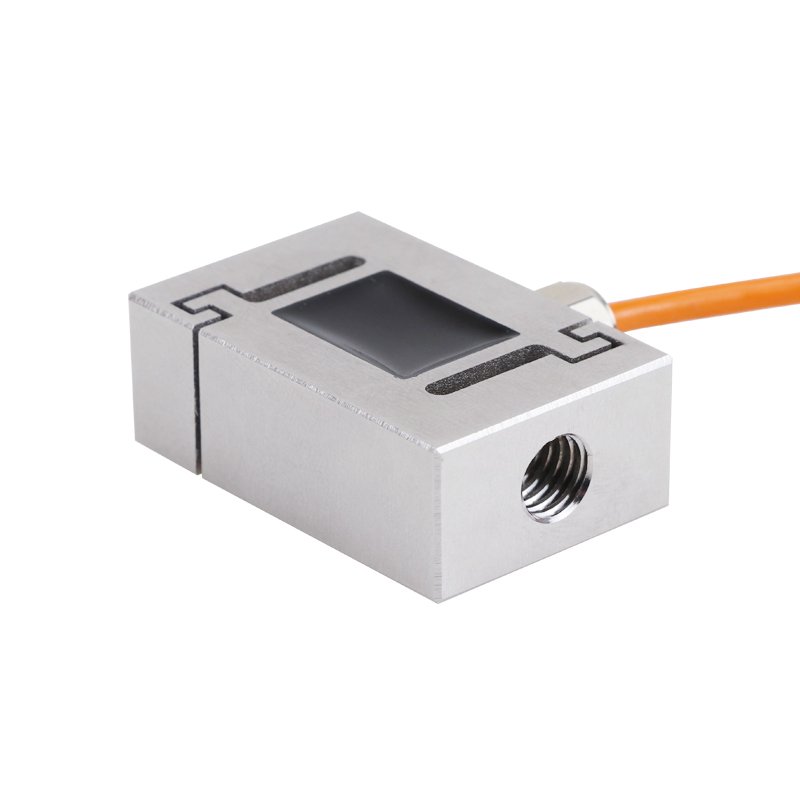

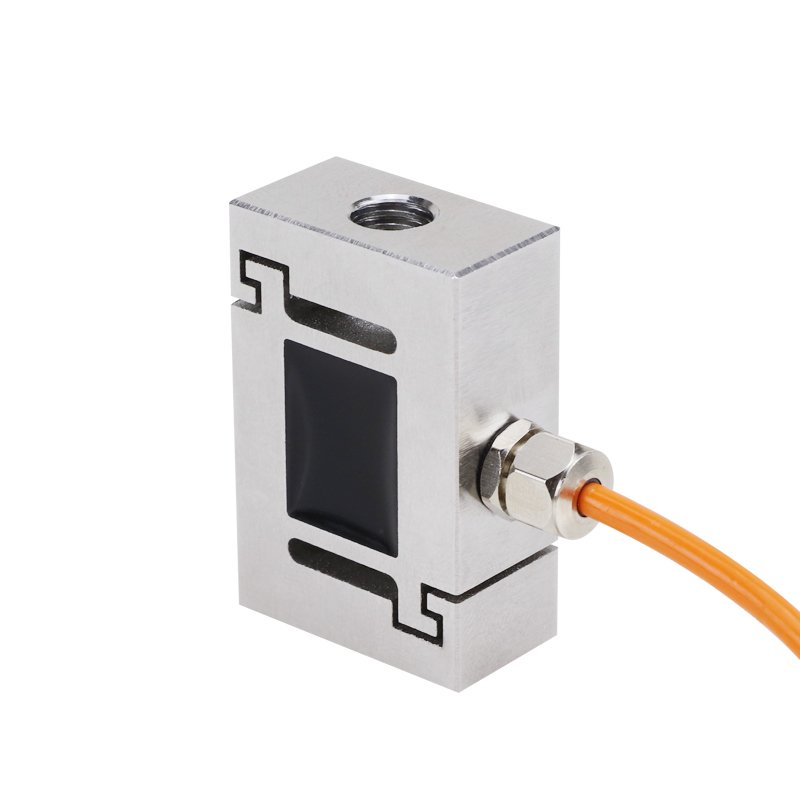

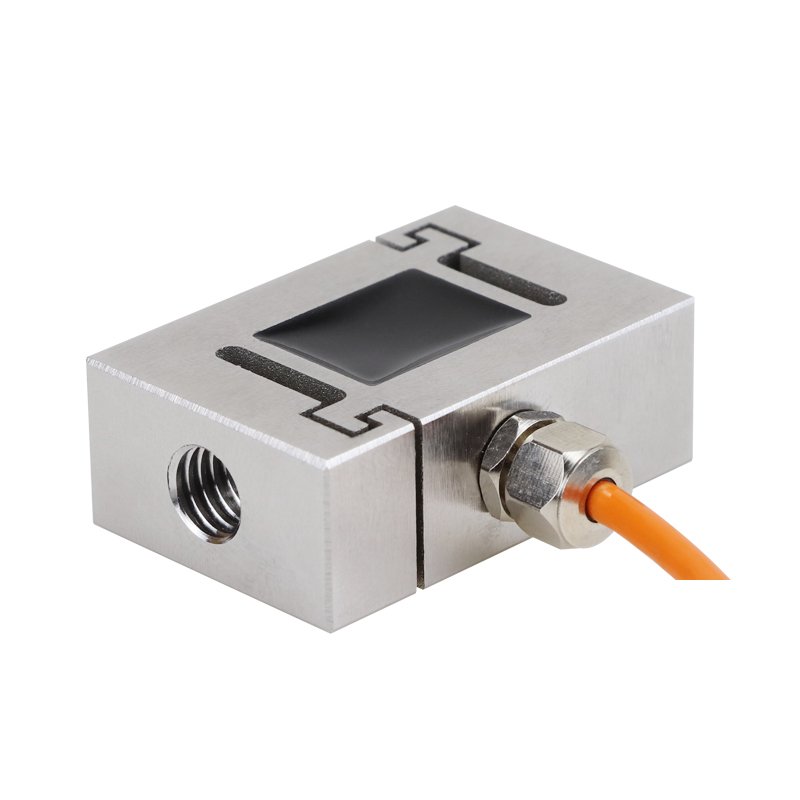

Detail Pictures
Product Parameters
| Parameter Table | |||
| Measuring Range | 0-200kg | Material | stainless steel |
| Output Sensitivity | 1.0-2.0mV/V | Resistance | 350Ω |
| Zero Output | ±2%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-Linear | 0.1%F.S. | Operating voltage | 5-10v |
| Hysteresis | 0.05%F.S. | Operating temperature range | -20-80℃ |
| Repeatability | 0.05%F.S. | Safety overload | 150% |
| Creep(30min) | 0.05%F.S. | Ultimate overload | 200% |
| Temp.effect on output | 0.05% F.S. / 10ºC | Cable specification | ＜100kg:Φ2X1m＞100kg:Φ3X2m |
| Temp.effect on zero | 0.05% F.S. / 10ºC | Cable ultimate tension | 10kg |
| Response frequency | 10kHz | TEDS | |

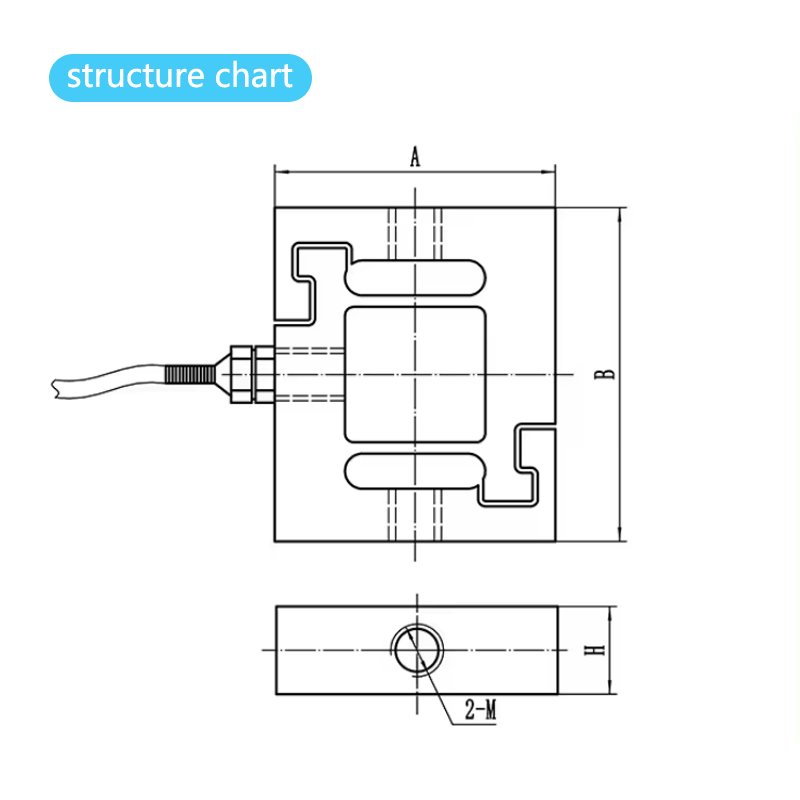

| Measuring Range(kg) | M | H | A | B |
| 0.5-10 | M3 | 5 | 16 | 19.1 |
| 20-50 | M4 | 6 | 16 | 19.1 |
| 100-200 | M8 | 14 | 26 | 40 |
