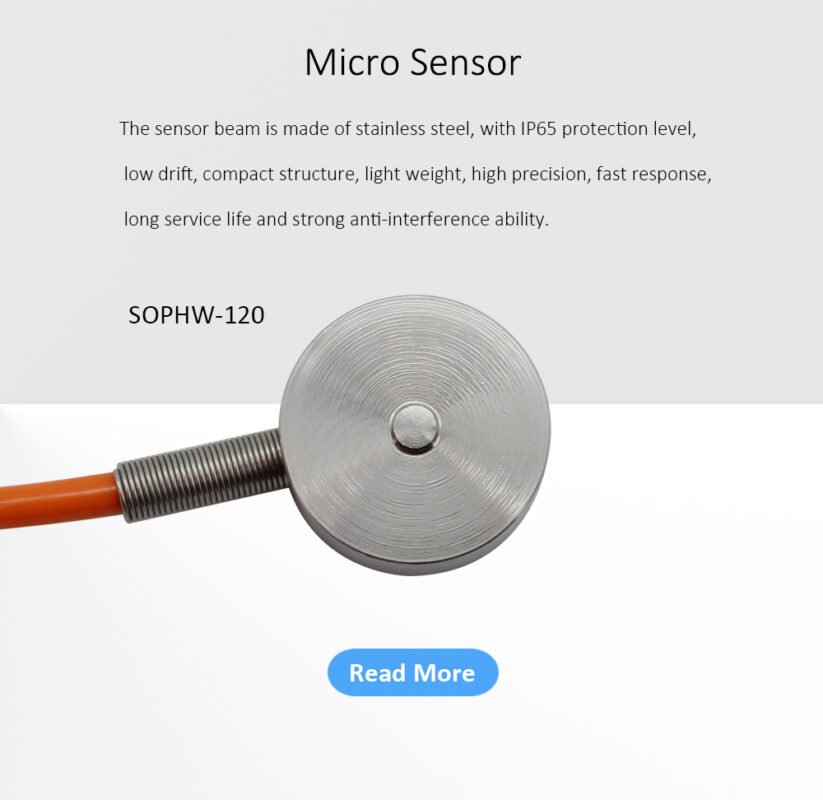

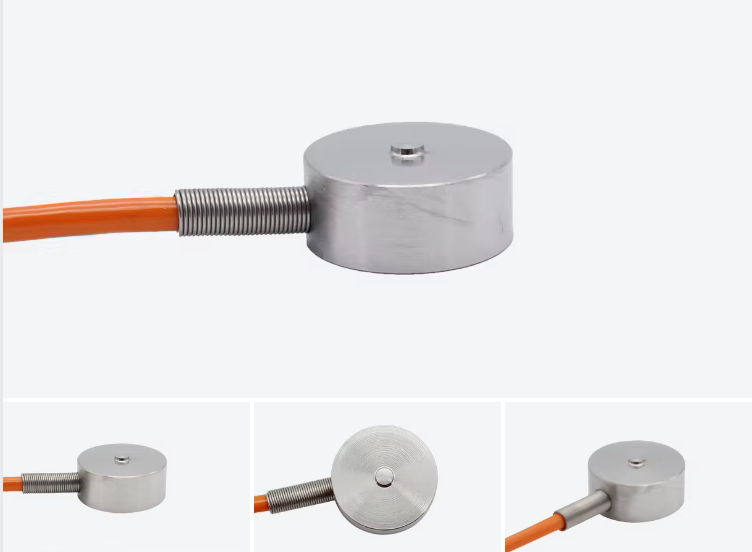

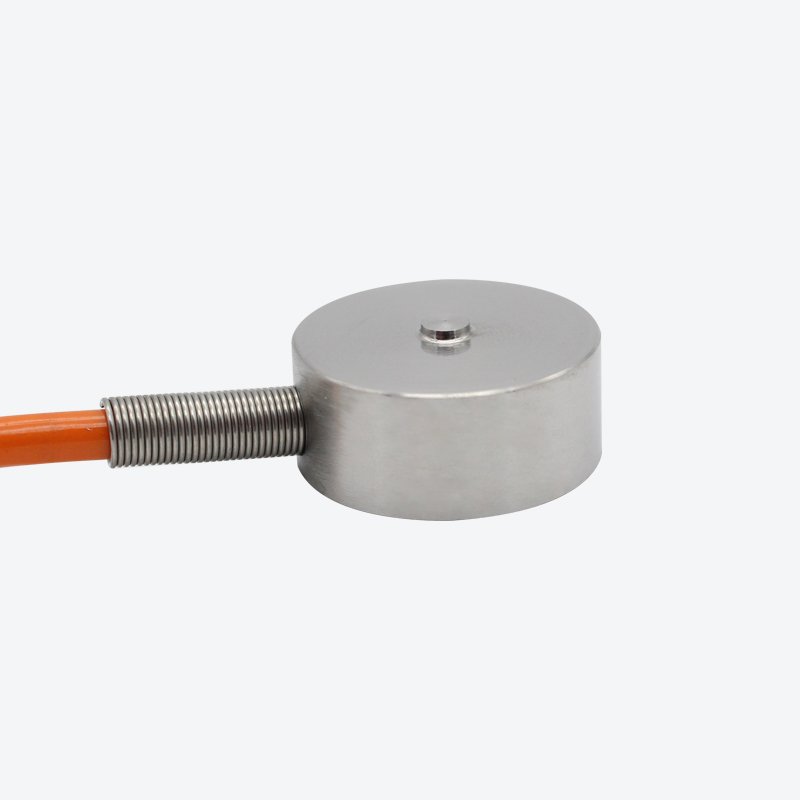

SOP / SOPHW-120 / High Quality Miniature Weighing Sensors For Assist Device

Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics;
Mold assembly and other industrial test, measurement and control systems, etc.

Material: stainless steel, High temperature performance can be determine, Customizable high temperature performance

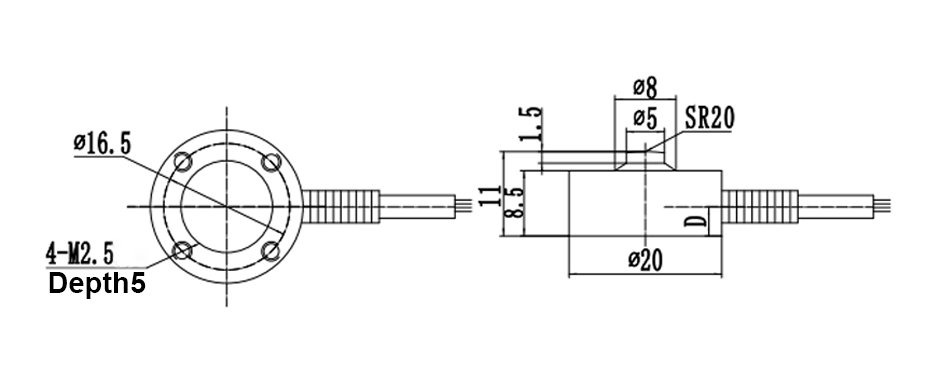

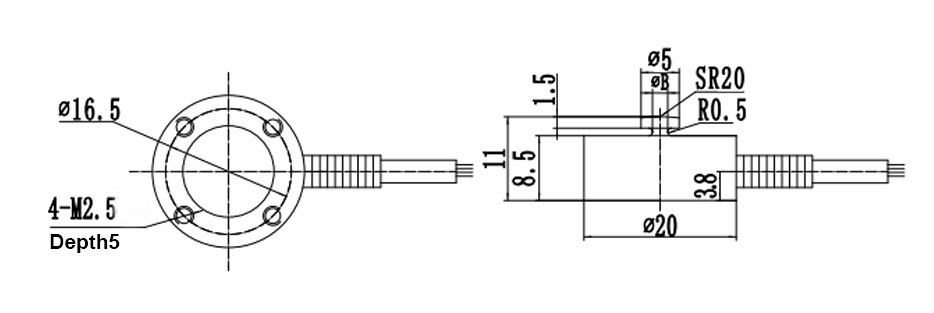

Size: Thin design, Large range

Product description:

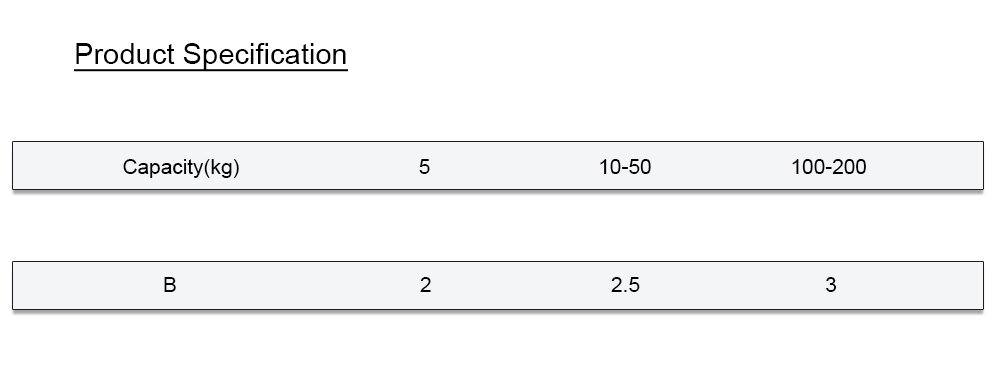

Capacity ： 5kg~200kg
Material: stainless steel
Defend grade: IP67.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.

Product description:
Capacity ：0~5Ton
Material: alloy steel
Type: spoke type
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.

The ZMMA is compact size and low profile button load cell, constructed from stainless steel and protected from moisture with an epoxy bonded cover. The load cell is easy to be installed with various automation equipment. The dimension can be customized based on client’s requirement.

Stainless steel

Product description:
Capacity ：100~5000kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal

SC201은 고압축 응용 분야에 적합하도록 설계된 원형 버튼형 로드셀입니다. 합금강으로 제작된 SC201은 견고하며, 방수 커넥터로 밀봉되어 혹독한 환경에도 설치 가능합니다. 슬림한 바디로 뛰어난 신뢰성과 일관된 정확도를 제공합니다.

The SC201 is a round button load cell designed for heavy compressive applications. Made of alloy steel, the SC201 is rugged and sealed with a water proof connector for installation in harsh environments. It provides great reliability and consistent accuracy is a low profile body.

SC29FB는 매우 무거운 압축 하중을 계량하는 어플리케이션에 적합하도록 설계된 대형 버튼형 로드셀입니다. 중량 계량 어플리케이션에서는 설치가 매우 중요하므로, SC29FB는 나사산이 있는 큰 중앙 구멍과 로드셀 본체 주변에 여러 개의 관통 구멍을 가지고 있습니다. 견고하게 설계되어 혹독하고 부식성이 있는 환경에도 설치 가능합니다. 또한, SC29FB는 간편한 설치를 위해 탈착식 방수 커넥터를 갖추고 있습니다.

The SC29FB is large button load cell designed for extremely heavy compression weighing applications. Mounting is critical for heavy weighing applications so SC29FB has a large center hole that is threaded and multiple thru holes around the body of the load cells. It is designed to be rugged and be installed in harsh as well as corrosive environments. The SC29FB also incorporates a removable waterproof connector for simplified installation.

1.Stainless steel;

2.Super micro structure;

3. Suitable for force measuring in a narrow space.

SC218C는 SC218과 같은 원형 버튼 압축 로드셀입니다. SC218C는 SC218의 저가형 버전으로 합금강 구조로만 제공됩니다. 또한, 1톤에서 10톤까지 용량 범위가 제한되어 있습니다.

The SC218C is a round button compression load cell like the SC218. The SC218C is a low cost version of the SC218 and is only available in alloy steel construction. It is also has limited capacity range of 1 Tonne to 10 Tonnes.

SC215B 로우 프로파일 버튼형 로드셀은 공간이 제한된 압축 어플리케이션에 이상적입니다. 콤팩트한 디자인에 나사산 중앙 구멍이 있어 다양한 장착 구성이 가능합니다.

The SC215B low profile button load cell ideal for compression applications where space is limited. Its compact design also has a threaded center hole that allows for different mounting configurations.

SC218은 고압축 계량 어플리케이션에 적합한 원형 버튼형 로드셀입니다. IP68 등급으로 혹독한 환경에 적합합니다. 부식성 환경에 대한 내구성을 높이기 위해 스테인리스 스틸 소재로도 제작됩니다.

The SC218 is a round button load cell for heavy compression weighing applications. It is rated for IP68 and is ideal for harsh environment. The SC218 is also available in stainless steel for added resistance for corrosive environments.
